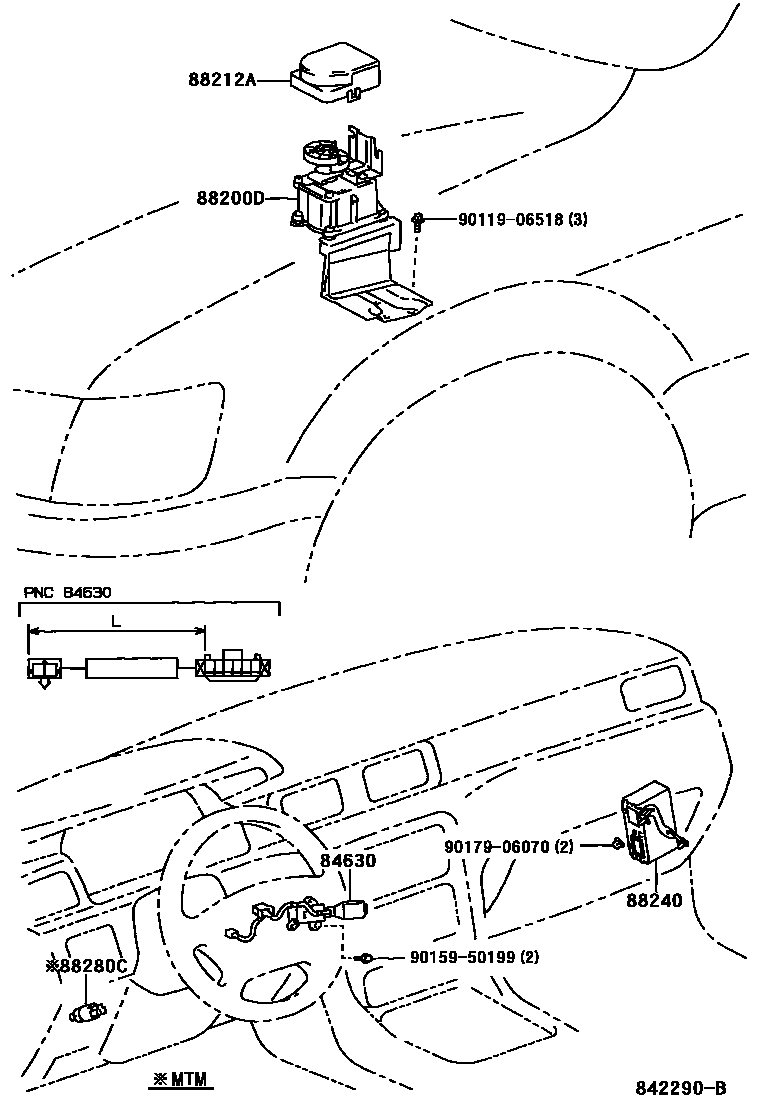

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06030iMCV20,SXV20..JPP..XLE199608-199805

main84630-0W010iSXV20..JPP..XLE;MCV20..JPP..(CE,XLE)199805-199808

L=115,REFER TO ILLUSTRAITION,(L)

main84630-33010iMCV20,SXV20..JPP..(CE,LE)199710-199908

L=125,REFER TO ILLUSTRAITION

main84630-33010iMCV20,SXV20..JPP..LE199608-199805

main84630-33060iMCV20,SXV20..JPP..CE199710-199908

L=115,REFER TO ILLUSTRAITION

main84630-33060iMCV20,SXV20..JPP..(LE,XLE)199808

L=115,REFER TO ILLUSTRAITION,(J)

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33030iMCV20,SXV20..JPP199608-199908

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-33010iMCV20,SXV20..JPP199608-199908

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33090iMCV20,SXV20..JPP199608-199808

main88240-33140iMCV20,SXV20..JPP199808-199908

88280CSWITCH ASSY, CLUTCH

main88280-14030iSXV20..JPP..MTM199808

9011906518

main90119-06518

9015950199

main90159-50199

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section
