ELECTRONIC FUEL INJECTION SYSTEM

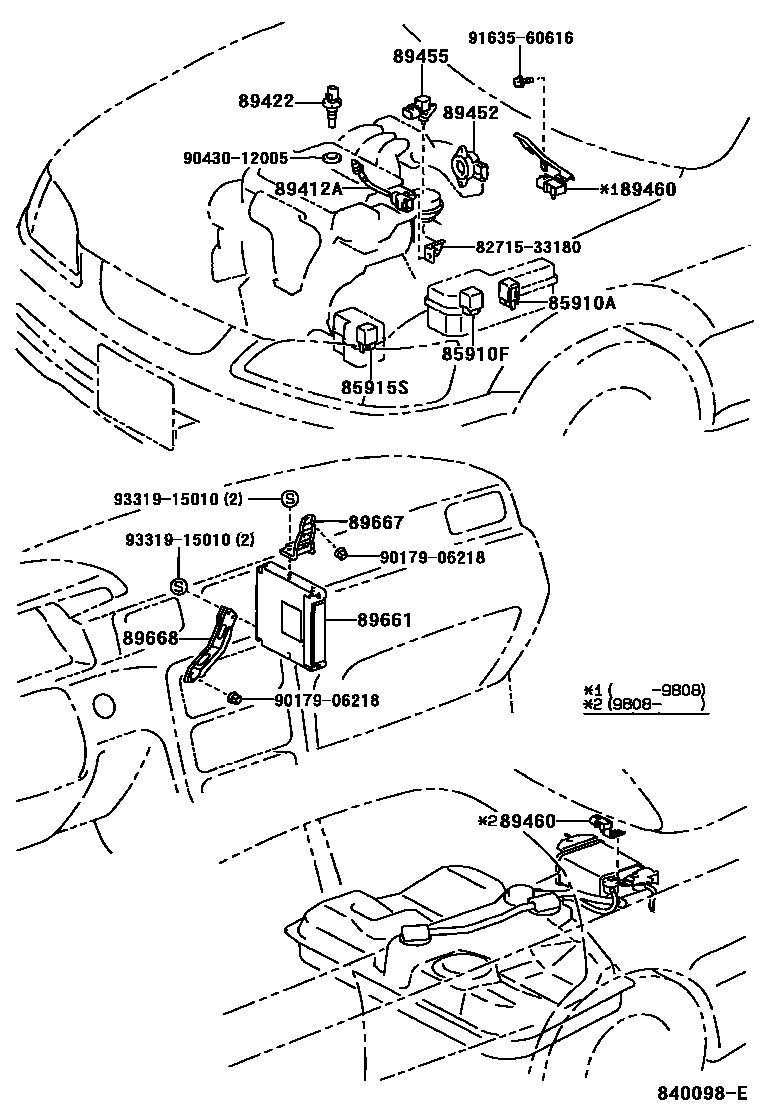

Parts diagram
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90987-02012i199608-200008
85910FRELAY, COMPUTER (FOR EFI)
main90987-02012i199608-200008
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
main90987-02012i199708-200008
89412ASENSOR, E.G.R GAS TEMPERATURE
main89412-33050i199608
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-20010i199608-199908
main89422-35010i199608-200008
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
main89452-06020i200008
CTS
main89452-33030i200005-200008
CALIFORNIA SPEC
main89452-33030i199608-200009
main89452-33030i200008
AISAN
main89452-33040i199608-200008
sub89452-33030
89455SENSOR, EGR VALVE POSITION
main89455-33020i199608
89460SENSOR ASSY, VAPOR PRESSURE
main89460-06030i199710-199808
main89460-06050i199808-199908
main89460-06050i199708-199808
PART NUMBER LABEL=89460-06050
main89460-07030i199908-200008
PART NUMBER LABEL=89460-07030
main89460-33010i199908-200008
PART NUMBER LABEL=89460-33010
main89460-33030i199608-199707
main89460-33030i199707-199710
DENSO
main89460-33040i199708-199808
PART NUMBER LABEL=89460-33040
89661COMPUTER, ENGINE CONTROL
main89661-06320i199608-199702
sub89661-06321
main89661-06321i199702-199708
(L)
main89661-06330i199608-199702
W(TRACTION CONTROL)
sub89661-06331
main89661-06331i199702-199708
W(TRACTION CONTROL),(L)
main89661-06570i199708-199808
(L)
sub89661-06571
main89661-06590i199708-199802
W(TRACTION CONTROL)
sub89661-06591
main89661-06591i199802-199908
W(TRACTION CONTROL),(L)
main89661-06601i199708-199711
CALIFORNIA SPEC
sub89661-06602
main89661-06602i199711-199802
CALIFORNIA SPEC
sub89661-06603
main89661-06603i199802-199808
CALIFORNIA SPEC,(L)
main89661-06611i199708-199711
CALIFORNIA SPEC & W(TRACTION CONTROL)
sub89661-06612
main89661-06612i199711-199802
CALIFORNIA SPEC & W(TRACTION CONTROL)
sub89661-06613
main89661-06613i199802-199808
CALIFORNIA SPEC & W(TRACTION CONTROL),(L)
main89661-06630i199808-199810
DENSO
sub89661-06631
main89661-06631i199810-199908
(L)
main89661-06640i199808-199810
CALIFORNIA SPEC,DENSO
sub89661-06641
main89661-06641i199810-199908
CALIFORNIA SPEC OR CALIFORNIA SPEC & W(TRACTION CONTROL),DENSO
main89661-06840i199908-200002
(L)
sub89661-06841
main89661-06840i199908-200002
W(TRACTION CONTROL),(L)
sub89661-06841
main89661-06841i200002-200008
W(TRACTION CONTROL),(L)
main89661-06850i199908-200002
CALIFORNIA SPEC,(L)
sub89661-06851
main89661-06851i200002-200008
CALIFORNIA SPEC,(L)
main89661-0W080i199708-199805
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-0W081
main89661-0W081i199805-199808
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),DELCO
main89661-0W090i199808-199901
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),DELCO
sub89661-0W091
main89661-0W091i199901-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),DELCO
main89661-0W110i199908-200001
(L)
sub89661-0W111
main89661-0W110i199908-200001
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(L)
sub89661-0W111
main89661-0W111i200001-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(L)
main89661-0W111i200001-200008
(L)
main89661-33790i199608-199701
NIPPON DENSO
sub89661-33791
main89661-33791i199701-199708
(J)
main89661-33810i199608-199701
W(TRACTION CONTROL),NIPPON DENSO
sub89661-33811
main89661-33811i199701-199708
W(TRACTION CONTROL),(J)
main89661-3T030i199608-199704
sub89661-3T031
main89661-3T031i199704-199708
main89661-3T040i199608-199704
CALIFORNIA SPEC
sub89661-3T041
main89661-3T041i199704-199708
CALIFORNIA SPEC
sub89661-3T042
main89661-3T260i199708-199709
sub89661-3T261
main89661-3T261i199709-199801
sub89661-3T262
main89661-3T262i199801-199808
sub89661-3T440
main89661-3T270i199708-199801
CALIFORNIA SPEC
sub89661-3T271
main89661-3T271i199801-199808
CALIFORNIA SPEC
sub89661-3T272
main89661-3T280i199708-199709
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T281
main89661-3T281i199709-199801
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T282
main89661-3T282i199801-199808
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T460
main89661-3T290i199708-199801
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T291
main89661-3T291i199801-199808
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T292
main89661-3T300i199708-199802
DENSO
sub89661-3T301
main89661-3T301i199802-199808
(J)
main89661-3T310i199708-199802
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),DENSO
sub89661-3T311
main89661-3T311i199802-199808
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),DENSO
main89661-3T320i199708-199802
W(TRACTION CONTROL),DENSO
sub89661-3T321
main89661-3T321i199802-199808
W(TRACTION CONTROL),(J)
main89661-3T331i199708-199802
CALIFORNIA SPEC,DENSO
sub89661-3T332
main89661-3T333i199802-199808
CALIFORNIA SPEC,(J)
main89661-3T341i199708-199802
CALIFORNIA SPEC & W(TRACTION CONTROL),DENSO
sub89661-3T342
main89661-3T343i199802-199808
CALIFORNIA SPEC & W(TRACTION CONTROL),(J)
main89661-3T400i199808-199810
sub89661-3T401
main89661-3T401i199810-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),(J),DENSO
main89661-3T410i199808-199810
CALIFORNIA SPEC
sub89661-3T411
main89661-3T411i199810-199908
CALIFORNIA SPEC OR CALIFORNIA SPEC & W(TRACTION CONTROL),TOYOTA
main89661-3T440i199808-199811
sub89661-3T441
main89661-3T441i199811-199908
main89661-3T450i199808-199811
CALIFORNIA SPEC
sub89661-3T451
main89661-3T451i199811-199908
CALIFORNIA SPEC
sub89661-3T452
main89661-3T460i199808-199811
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T461
main89661-3T461i199811-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
main89661-3T470i199808-199811
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T471
main89661-3T471i199811-199908
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))
sub89661-3T472
main89661-3T510i199808-199811
sub89661-3T511
main89661-3T511i199811-199908
main89666-06180i200008-200011
DENSO USA
sub89666-06181
main89666-06181i200011-200107
DENSO USA
sub89666-06182
main89666-33010i199908-199911
sub89666-33011
main89666-33011i199911-200008
main89666-33020i199908-199911
sub89666-33021
main89666-33021i199911-200008
main89666-33030i199908-199911
CALIFORNIA SPEC
sub89666-33031
main89666-33031i199911-200006
CALIFORNIA SPEC
sub89666-33032
main89666-33032i200006-200008
CALIFORNIA SPEC
sub89666-33160
main89666-33050i199908-199911
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
sub89666-33051
main89666-33051i199911-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
main89666-33060i199908-199911
CALIFORNIA SPEC & W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
sub89666-33061
main89666-33060i199908-199911
CALIFORNIA SPEC
sub89666-33061
main89666-33061i199911-200007
CALIFORNIA SPEC
sub89666-33062
main89666-33061i199911-200007
CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)
sub89666-33062
main89666-33062i200007-200008
CALIFORNIA SPEC & W(ENGINE IMMOBILIZER SYSTEM)
sub89666-33170
main89666-33062i200007-200008
CALIFORNIA SPEC
sub89666-33170
main89666-33070i199908-200001
sub89666-33071
main89666-33071i200001-200008
sub89666-33240
main89666-33080i199908-200001
(J)
sub89666-33081
main89666-33081i200001-200008
W(TRACTION CONTROL),(J)
main89666-33090i199908-200001
CALIFORNIA SPEC,(J)
sub89666-33091
main89666-33091i200001-200008
CALIFORNIA SPEC,(J)
main89666-33150i200008-200107
main89666-33160i200008-200107
main89666-33170i200008-200107
W(ENGINE IMMOBILIZER SYSTEM)
main89666-33211i200008-200104
sub89666-33212
main89666-33212i200104-200107
main89666-33240i200008-200107
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-06050i199608-200008
(L)
main89667-06050i199908-200008
CALIFORNIA SPEC OR W(TRACTION CONTROL),(L)
main89667-06060i199708-199808
(L)
main89667-0W020i199908-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(L)
main89667-0W020i199708-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),(L)
main89667-0W020i199908-200008
(L)
main89667-33070i199608-199908
main89667-33070i199908-200008
CALIFORNIA SPEC
main89667-33080i199608-200008
(J)
main89667-33100i199908-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-06050i199908-200008
CALIFORNIA SPEC OR W(TRACTION CONTROL),(L)
main89668-06050i199608-200008
(L)
main89668-06060i199708-199808
(L)
main89668-0W020i199908-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER)),(L)
main89668-0W020i199908-200008
(L)
main89668-0W020i199708-199908
W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER)),(L)
main89668-33060i199608-200008
main89668-33080i199608-200008
(J)
main89668-33130i199908-200008
W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))
8271533180BRACKET,WIRING HARNESS CLAMP
main82715-33180
9017906218
main90179-06218
9043012005
main90430-12005
9163560616
main91635-60616
9331915010
main93319-15010

16 parts on this diagram · 3 diagrams in section
