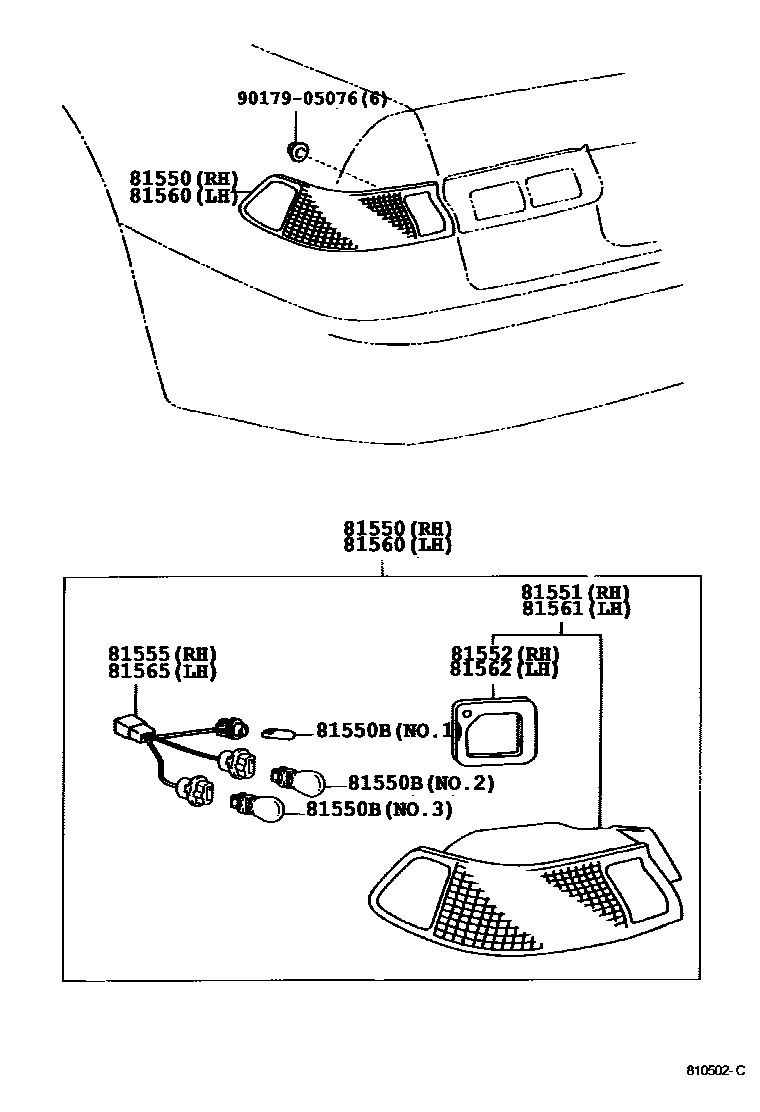

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 27W,NO.2
12V 27/8W,NO.3
12V 5W,NO.1
12V 3.8W,NO.1
81551LENS, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9017905076
main90179-05076
10 parts on this diagram · 1 diagram in section
