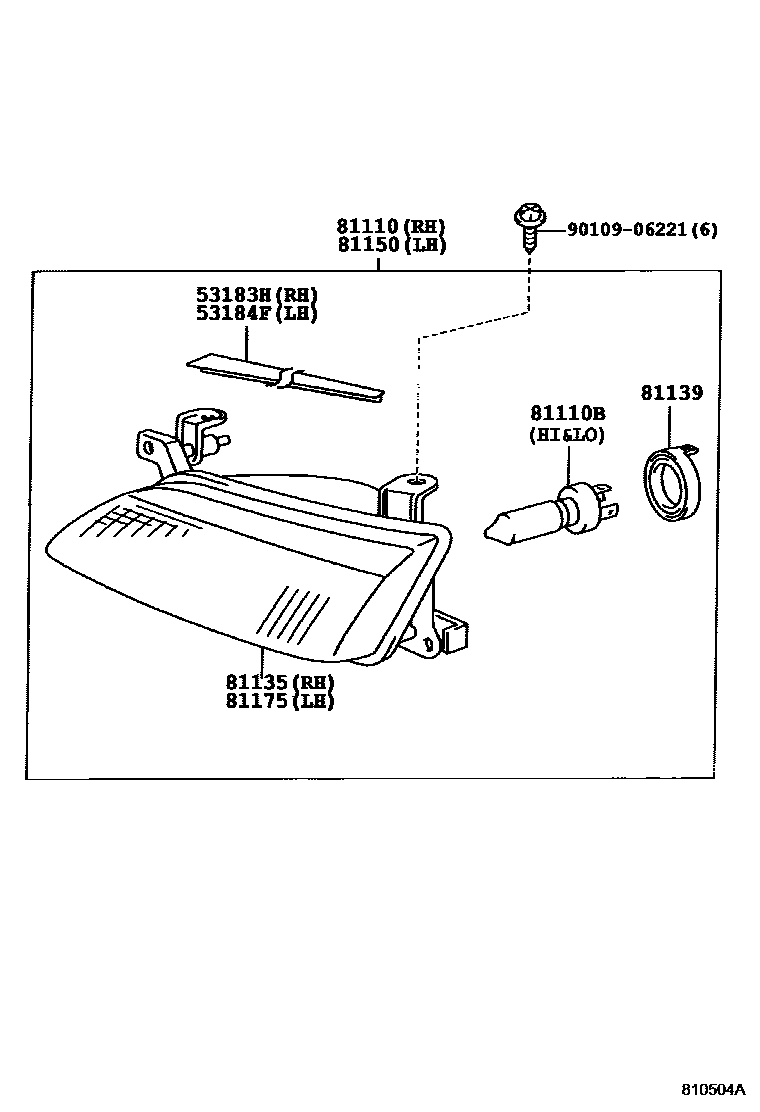

HEADLAMP

0001 1 0002 1

53183HSEAL, HEADLAMP COVER, RH

main53183-33060iMCV20,SXV20..JPP199608-199609

53184FSEAL, HEADLAMP COVER, LH

main53184-33060iMCV20,SXV20..JPP199608-199609

81110HEADLAMP ASSY, RH

main81110-AA010iMCV20,SXV20..JPP199608-199908

main81110-AA020iMCV20,SXV2#..JPP199908

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iMCV20,SXV2#..JPP199908

12V 65W

sub90981-13046

main90084-98033iMCV20,SXV20..JPP199608-199908

12V 60/55W

81135UNIT ASSY, HEADLAMP, RH

main81130-AA010iMCV20,SXV20..JPP199608-199908

main81130-AA020iMCV20,SXV2#..JPP199908

81139COVER, HEADLAMP SOCKET

main81139-AA010iMCV20,SXV20..JPP199608-199908

81150HEADLAMP ASSY, LH

main81150-AA010iMCV20,SXV20..JPP199608-199908

main81150-AA020iMCV20,SXV2#..JPP199908

81175UNIT ASSY, HEADLAMP, LH

main81170-AA010iMCV20,SXV20..JPP199608-199908

main81170-AA020iMCV20,SXV2#..JPP199908

9010906221

main90109-06221

9 parts on this diagram · 2 diagrams in section
