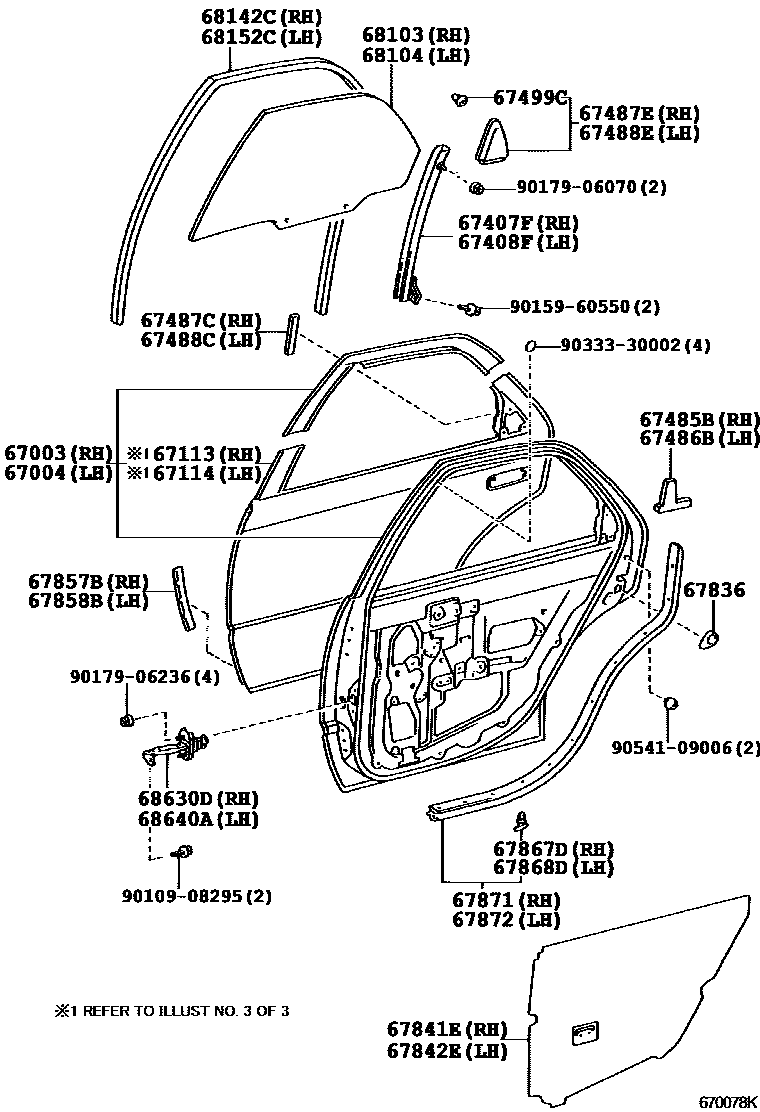

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67487EGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67488EGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67499CRETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
NATURAL
BLACK
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCTT,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCTT,T=4.0,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
9010908295
9015960550
9017906070
9017906236
9033330002
9054109006
34 parts on this diagram · 3 diagrams in section
