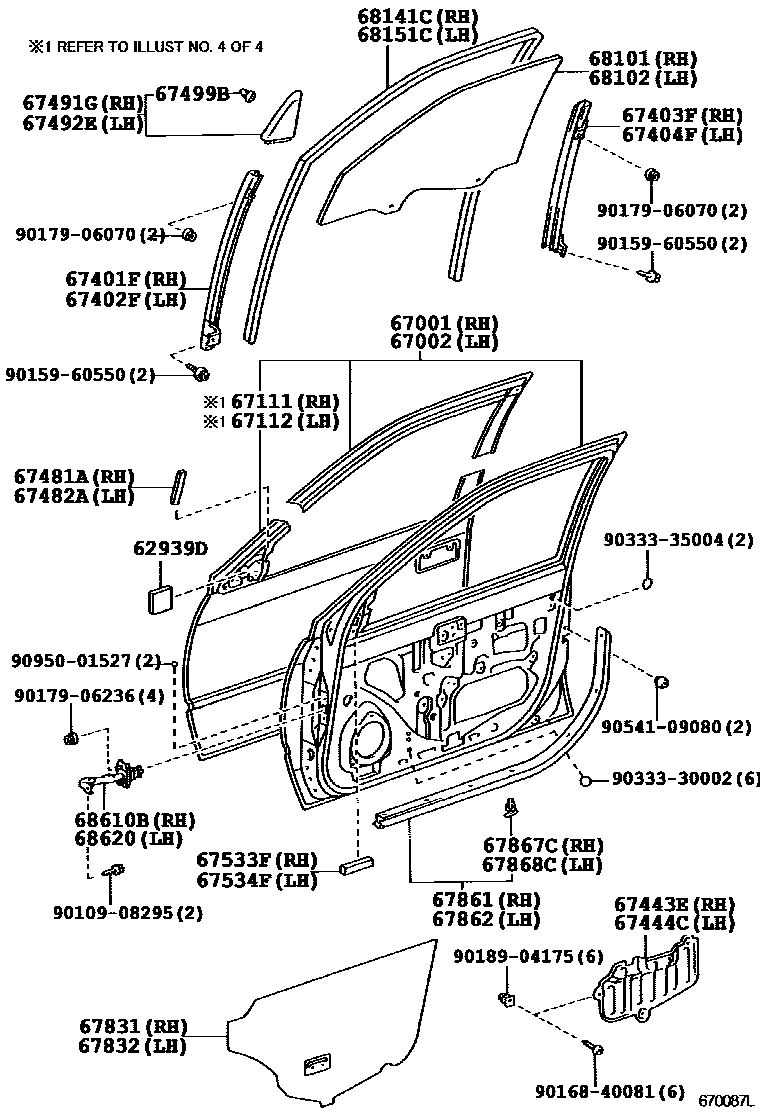

FRONT DOOR PANEL & GLASS
62939DSILENCER, QUARTER VENT
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
sub67111-33090
67112PANEL, FRONT DOOR, OUTER LH
sub67112-33090
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67443EPLATE, FRONT DOOR INSIDE PANEL, RH
67444CPLATE, FRONT DOOR INSIDE PANEL, LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2
(L)
(J)
67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH
sub61824-12120
67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH
sub61824-12120
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCTT,T=4.0,GREEN
*UVCTT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCTT,T=4.0,GREEN
*UVCTT,T=5.0,GREEN
9010908295
main90109-08295
9015960550
main90159-60550
9016840081
main90168-40081
9017906070
main90179-06070
9017906236
main90179-06236
9018904175
main90189-04175
9033330002
main90333-30002
9033335004
main90333-35004
9054109080
main90541-09080
9095001527
main90950-01527
40 parts on this diagram · 4 diagrams in section
