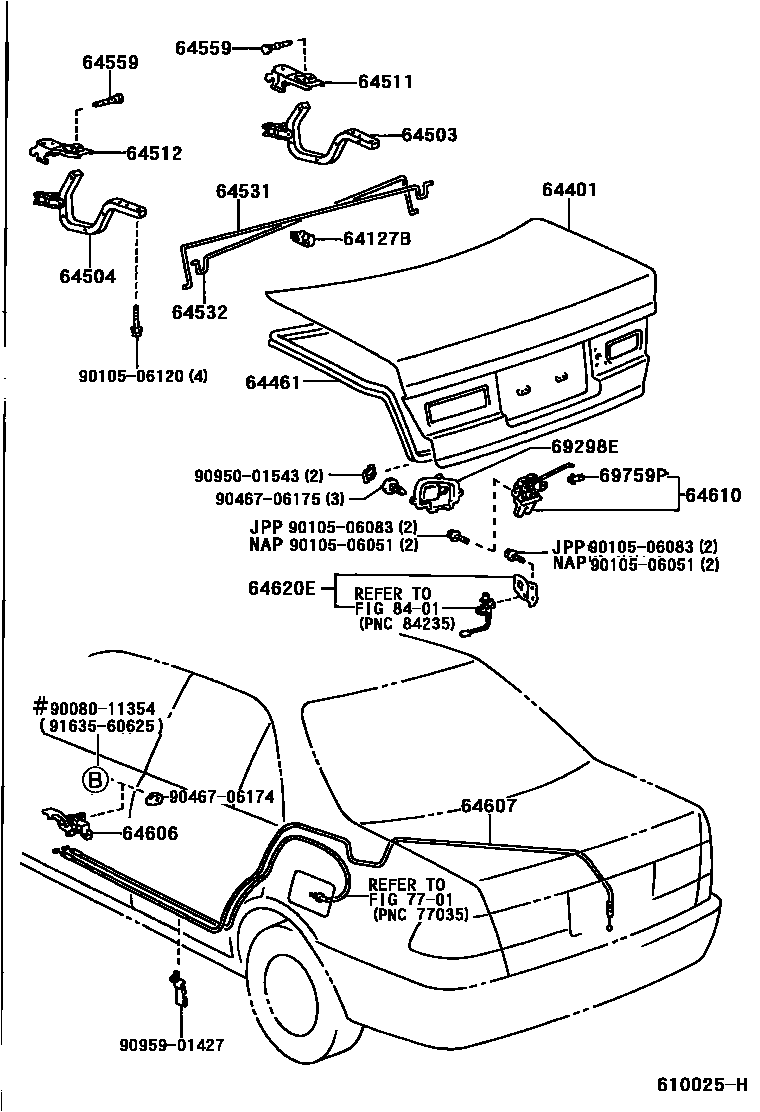

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33040iMCV20,SXV20..JPP¥680199608-199610

sub64127-33041¥470

main64127-33041iMCV20,SXV20..JPP¥470199610

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33140iMCV20,SXV20..JPP¥50,800199608-199908

main64401-33220iMCV20,SXV2#..JPP¥50,800199908

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33030iMCV20,SXV20..JPP¥6,800199608-199908

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-33030iMCV20,SXV20..JPP¥2,260199608-199908

main64503-33060iMCV20,SXV2#..JPP¥2,390199908

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-33030iMCV20,SXV20..JPP¥2,260199608-199908

main64503-33060iMCV20,SXV2#..JPP¥2,390199908

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-33030iMCV20,SXV20..JPP¥2,260199608-199908

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-33030iMCV20,SXV20..JPP¥2,260199608-199908

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-33040iMCV20,SXV20..JPP¥3,070199608-199908

main64531-33100iMCV20,SXV20..JPP¥3,070199908-199911

main64531-33110iMCV20,SXV20..JPP¥3,140199911-200010

main64531-33130iMCV20,SXV20..JPP¥3,140200102

main64531-33160iMCV20,SXV20..JPP¥3,140200010-200102

sub64531-33130¥3,140

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-33040iMCV20,SXV20..JPP¥3,070199608-199908

main64532-33100iMCV20,SXV20..JPP¥3,070199908-199911

main64532-33110iMCV20,SXV20..JPP¥3,110199911-200010

main64532-33130iMCV20,SXV20..JPP¥3,110200102

main64532-33160iMCV20,SXV20..JPP¥3,110200010-200102

sub64532-33130¥3,110

64559PIN, LUGGAGE DOOR HINGE

main64559-32020iMCV20,SXV20..JPP¥310199608-199908

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-33010iMCV20,SXV2#..JPP¥4,510199608-199908

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-33050iMCV20,SXV20..JPP¥2,150199608-199908

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-33030iMCV20,SXV20..JPP¥2,790199608-199908

main64610-33040iMCV20,SXV2#..JPP¥3,000199908-200008

main64610-33050iMCV20,SXV2#..JPP¥4,870200008

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-33010iMCV20,SXV20..JPP¥1,690199608-199908

sub64621-12060¥810

sub84231-20380¥1,070

sub93315-15010¥70

69298ECOVER, LUGGAGE COMPONENT DOOR INSIDE HANDLE

main69298-33020iMCV20,SXV2#..JPP¥1,610200008

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20040iMCV20,SXV20..JPP¥220199608-199908

main69759-24050iMCV20,SXV2#..JPP¥240199908

7701

8401

9008011354

main90080-11354¥70

9010506051

main90105-06051¥160

9010506083

main90105-06083¥120

9010506120

main90105-06120¥90

9046706174

main90467-06174¥360

9046706175

main90467-06175¥220

9095001543

main90950-01543¥200

9095901427

main90959-01427¥230

9163560625

main91635-60625¥110

27 parts on this diagram · 2 diagrams in section
