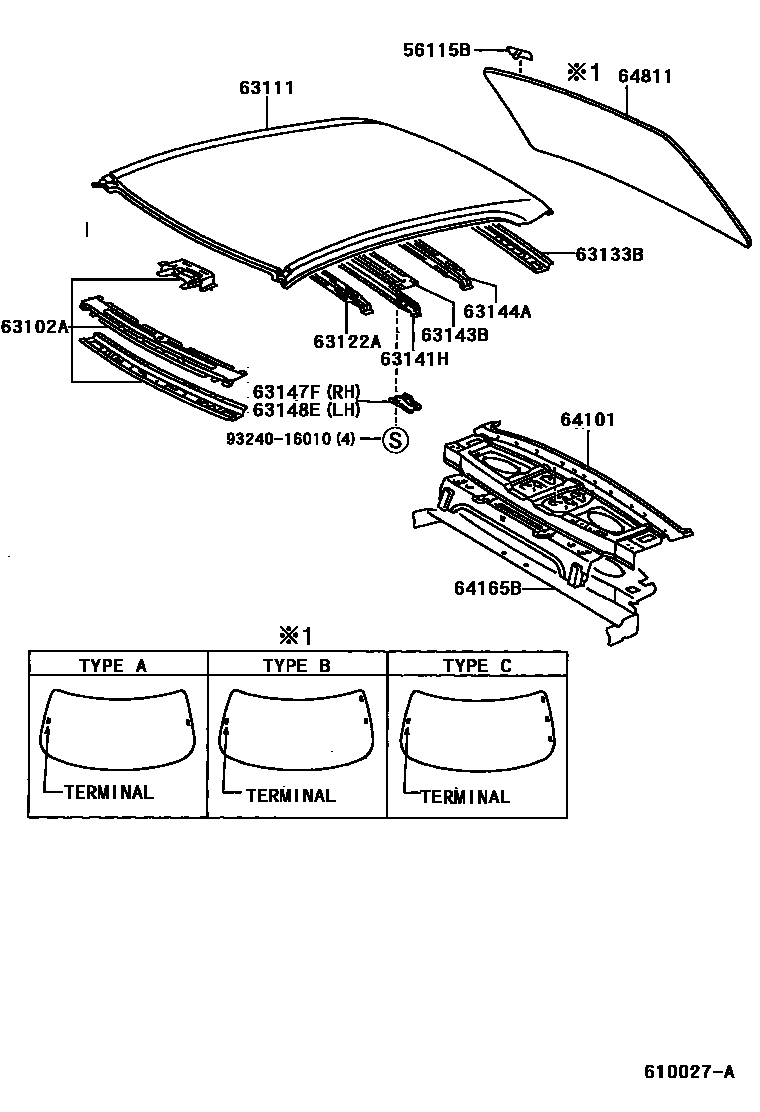

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF) 0003 1W(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-35040iMCV20,SXV20..JPP199608-199908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33050iMCV20,SXV20..JPP..(LE,XLE)199608-199808

sub63102-33051

main63102-33051iMCV20,SXV20..JPP199805-199908

main63102-33070iMCV20,SXV20..JPP..(LE,XLE)199608-199808

W(MOON ROOF)

sub63102-33071

main63102-33071iMCV20,SXV20..JPP..(LE,XLE)199808

W(MOON ROOF)

63111PANEL, ROOF

main63111-33110iMCV20,SXV20..JPP199608-199908

main63111-33120iMCV20,SXV20..JPP..(LE,XLE)199608

W(MOON ROOF)

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-AA010iMCV20,SXV20..JPP199608-199908

63133BFRAME, BACK WINDOW

main63133-AA020iMCV20,SXV20..JPP199608-199808

sub63133-AA030

main63133-AA030iMCV20,SXV20..JPP199808-199908

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-AA010iMCV20,SXV20..JPP199608-199806

sub63141-AA021

main63141-AA021iMCV20,SXV20..JPP199806-199908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-AA020iMCV20,SXV2#..JPP199608-199908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-AA020iMCV20,SXV2#..JPP199608-199908

main63144-AA030iMCV20,SXV20..JPP..(LE,XLE)199608

W(MOON ROOF)

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-33010iMCV20,SXV20..JPP199608-199808

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-33010iMCV20,SXV20..JPP199608-199808

64101PANEL SUB-ASSY, UPPER BACK

main64101-33140iMCV20,SXV2#..JPP199608-199908

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33040iMCV20,SXV20..JPP199608

main64165-33050iSXV23..JPP199908-200008

main64165-33051iSXV23..JPP200008

64811GLASS, BACK WINDOW

main64811-33370iMCV20,SXV20..JPP199701-199708

*EHTT,T=3.5,GREEN,TYPE B:REFER TO ILLUSTRATION

sub64811-33371

main64811-33380iMCV20,SXV20..JPP199701-199708

*EHTT,T=3.5,GREEN,TYPE C:REFER TO ILLUSTRATION

sub64811-33381

main64811-AA071iMCV20,SXV20..JPP..CE199805-199808

*EHTT,T=3.5,GREEN

main64811-AA080iMCV20,SXV20..JPP..LE199608-199708

*EHTT,T=3.5,GREEN,TYPE B

sub64811-33370

main64811-AA080iMCV20,SXV20..JPP..XLE199608-199708

*EHTT,T=3.5,GREEN

sub64811-33370

main64811-AA081iMCV20,SXV20..JPP..CE199808-199908

*EHTT,T=3.5,GREEN

main64811-AA081iMCV20,SXV20..JPP..LE199708

*EHTT,T=3.5,GREEN,TYPE B:REFER TO ILLUSTRATION

main64811-AA090iMCV20,SXV20..JPP199608-199708

*EHTT,T=3.5,GREEN,TYPE C

sub64811-33380

main64811-AA091iMCV20,SXV20..JPP..(LE,XLE)199708

*EHTT,T=3.5,GREEN,TYPE C:REFER TO ILLUSTRATION

9324016010

main93240-16010
