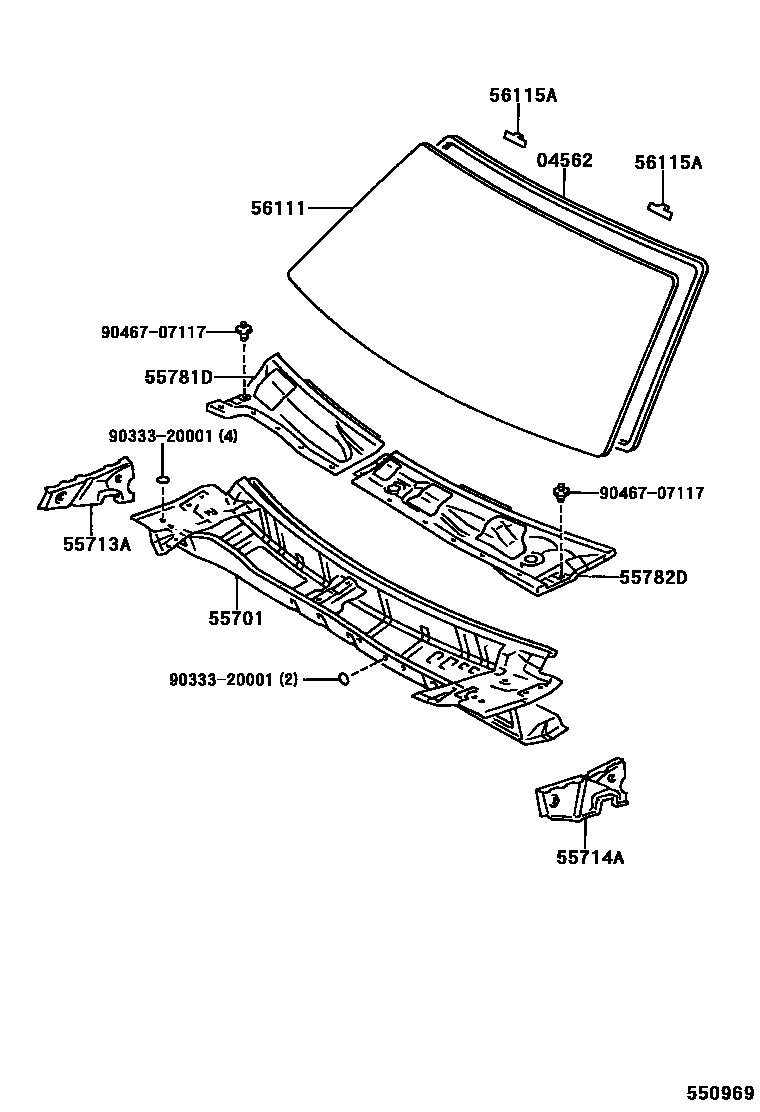

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iMCV20,SXV20..JPP199608-199908

55701PANEL SUB-ASSY, COWL

main55700-33150iMCV20,SXV20..JPP..ATM199608-199908

main55700-33160iSXV20..JPP..MTM199808

55713APANEL, COWL TOP SIDE, RH

main55713-33020iMCV20,SXV20..JPP199608-199908

55714APANEL, COWL TOP SIDE, LH

main55714-33020iMCV20,SXV20..JPP199608-199908

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-AA010iMCV20,SXV20..JPP199608-199908

main55781-AA020iMCV20,SXV2#..JPP199908-200107

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-AA010iMCV20,SXV20..JPP199608-199908

main55782-AA020iMCV20,SXV2#..JPP199908

56111GLASS, WINDSHIELD

main56101-0W040iMCV20,SXV2#..JPP199801-199908

*TL,T=4.7

main56101-33230iMCV20,SXV20..JPP199701-199708

*LAM,T=4.7

sub56101-AA020

main56101-AA020iMCV20,SXV20..JPP199608-199801

*TL,T=4.7

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMCV20,SXV2#..JPP199910

main56115-33020iMCV20,SXV20..JPP199608-199801

main56115-33040iMCV20,SXV20..JPP199801-199910

sub56115-30100

sub56116-22050

9033320001

main90333-20001

9046707117

main90467-07117

10 parts on this diagram · 1 diagram in section
