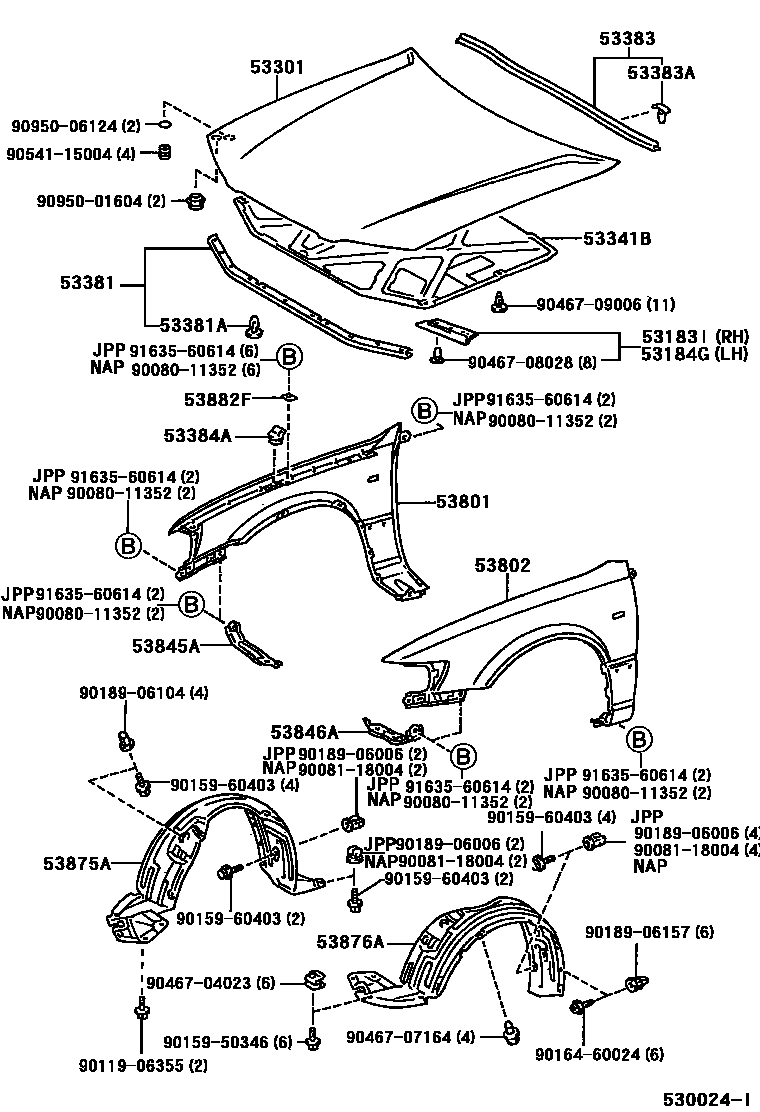

HOOD & FRONT FENDER
53183ISEAL, HEADLAMP COVER, RH
53184GSEAL, HEADLAMP COVER, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
9008011352
main90080-11352
9008118004
main90081-18004
9011906355
9015950346
9015960403
9016460024
9018906006
9018906104
9018906157
9046704023
9046707164
9046708028
9046709006
9054115004
9095001604
9095006124
9163560614
33 parts on this diagram · 1 diagram in section
