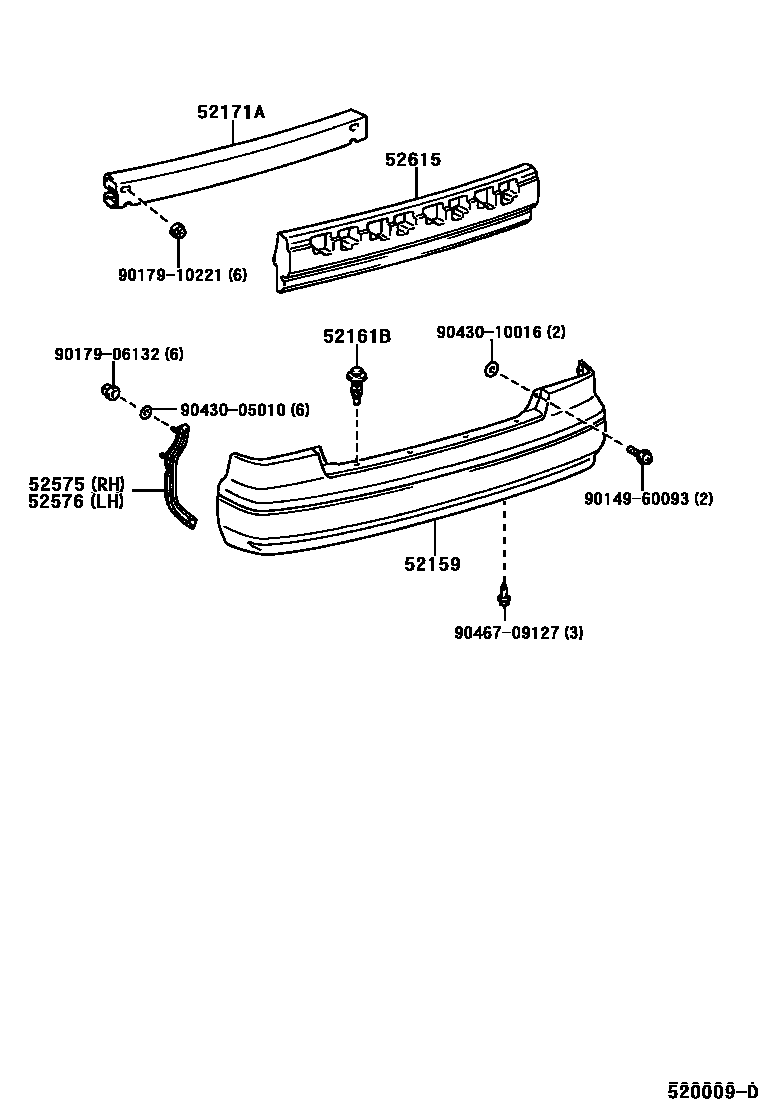

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-33904iMCV20,SXV20..JPP199608-199908

main52159-33907iMCV20,SXV2#..JPP199908

52161BPIECE, REAR BUMPER

main52161-16010iMCV20,SXV20..JPP199608-199908

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-33060iMCV20,SXV20..JPP199708-199908

sub52171-33070

main52171-33070iMCV20,SXV2#..JPP..USA199908

52575RETAINER, REAR BUMPER SIDE, RH

main52575-AA010iMCV20,SXV20..JPP199608-199908

52576RETAINER, REAR BUMPER SIDE, LH

main52576-AA010iMCV20,SXV20..JPP199608-199908

52615ABSORBER, REAR BUMPER ENERGY

main52615-33010iMCV20,SXV2#..JPP199908

main52615-33050iMCV20,SXV20..JPP199608-199908

9014960093

main90149-60093

9017906132

main90179-06132

9017910221

main90179-10221

9043005010

main90430-05010

9043010016

main90430-10016

9046709127

main90467-09127

12 parts on this diagram · 1 diagram in section
