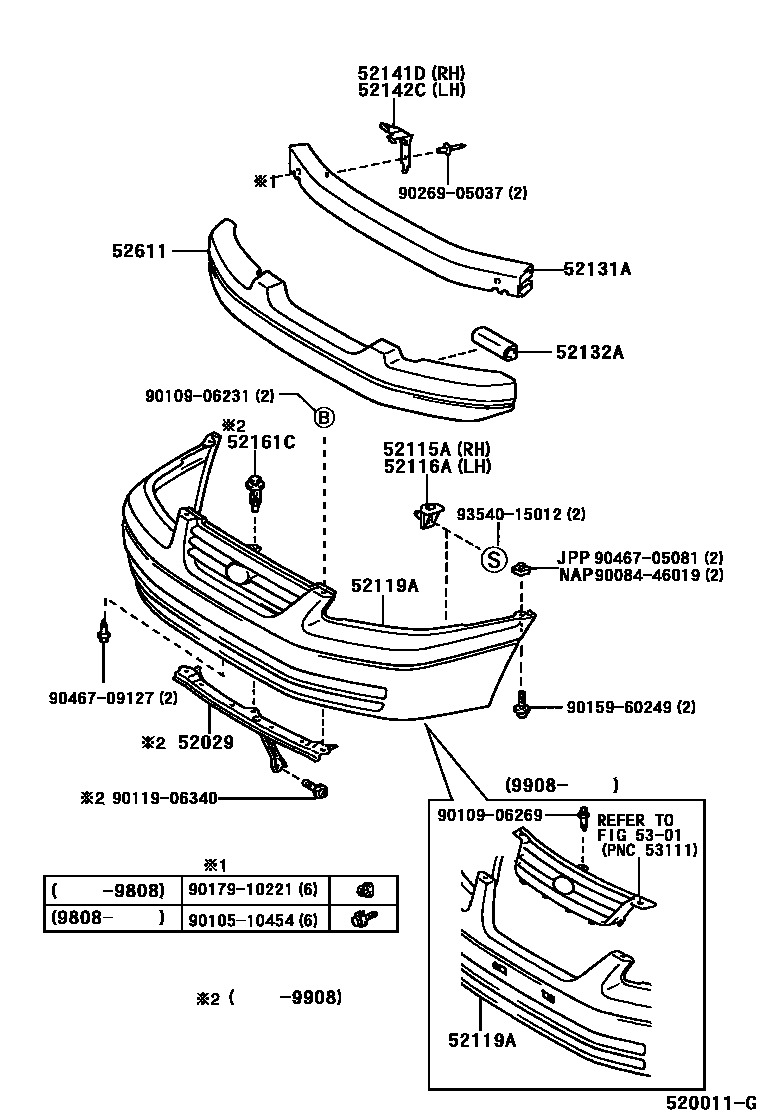

FRONT BUMPER & BUMPER STAY

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-33050iMCV20,SXV20..JPP199608-199908

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-33030iMCV20,SXV20..JPP199608-199908

main52115-33050iMCV20,SXV2#..JPP199908

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-33030iMCV20,SXV20..JPP199608-199908

main52116-33040iMCV20,SXV2#..JPP199908

52119ACOVER, FRONT BUMPER

main52119-33910iMCV20,SXV20..JPP199608-199908

main52119-33918iMCV20,SXV2#..JPP199908

52131AREINFORCEMENT, FRONT BUMPER

main52131-33020iMCV20,SXV20..JPP199608-199808

main52131-33050iMCV20,SXV20..JPP199808-199908

main52131-33080iMCV20,SXV20..JPP..CND199908

main52131-33090iMCV20,SXV2#..JPP..USA199908

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-33020×2iMCV20,SXV2#..JPP199608

52141DSTAY, FRONT BUMPER, RH

main52081-33010iMCV20,SXV20..JPP199608-199908

main52141-33060iMCV20,SXV2#..JPP199908

52142CSTAY, FRONT BUMPER, LH

main52082-33010iMCV20,SXV20..JPP199608-199908

main52142-33060iMCV20,SXV2#..JPP199908

52161CPIECE, FRONT BUMPER

main52161-16010iMCV20,SXV20..JPP199608-199908

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33040iMCV20,SXV20..JPP199608-199908

main52611-33100iMCV20,SXV2#..JPP199908

5301

9008446019

main90084-46019

9010510454

main90105-10454

9010906231

main90109-06231

9010906269

main90109-06269

9011906340

main90119-06340

9015960249

main90159-60249

9017910221

main90179-10221

9026905037

main90269-05037

9046705081

main90467-05081

9046709127

main90467-09127

9354015012

main93540-15012

22 parts on this diagram · 1 diagram in section
