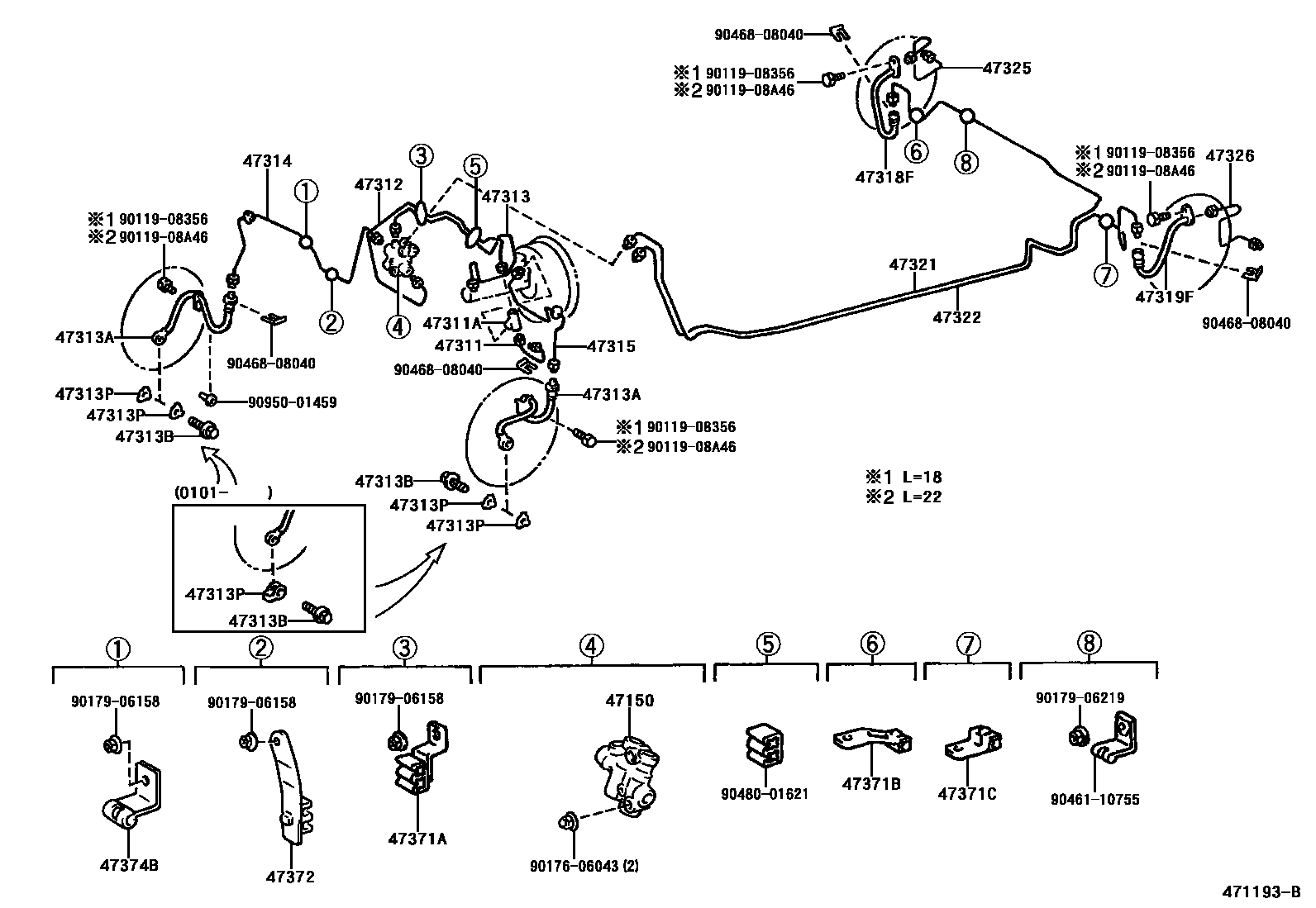

BRAKE TUBE & CLAMP

0001 1 0003 1W(ABS) 0004 1W(TRACTION CONTROL) 0005 1W(ABS) 0006 1W(TRACTION CONTROL)

47150VALVE ASSY, PROPORTIONING

main47150-12250iSXV20..JPP..CE;SXV20..JPP..LE..USA¥13,500199908

W(15 INCHES DISC WHEEL)

main47150-12250iSXV20..JPP..CE¥13,500199805-199806

main47150-16050iSXV20..JPP..CE¥16,800199908-200008

W(14 INCHES DISC WHEEL)

main47150-16050iSXV20..JPP..CE¥16,800199806-199908

main47150-20240iSXV20..JPP..CE¥13,500199908-200008

W(ABS & 14 INCHES DISK WHEEL)

main47150-20240iSXV20..JPP¥13,500199806-199908

W(ABS)

main47150-20270iSXV20..JPP¥13,500199801-199806

W(ABS)

main47150-20270iSXV2#..JPP¥13,500199908

W(ABS & 15 INCHES DISC WHEEL)

main47150-33020iMCV20..JPP¥13,500199608

main47150-44020iSXV20..JPP¥13,500199608-199801

W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-33030iMCV20,SXV2#..JPP¥390199608-199908

main47311-33050iMCV20..JPP..(LE,XLE)¥550199608

W(TRACTION CONTROL)

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12025iMCV20,SXV2#..JPP¥880199608-199908

W(ABS)

main90904-12039iMCV20..JPP..(LE,XLE)¥880199608

W(TRACTION CONTROL)

main90904-13011iSXV20..JPP..CE;SXV20..JPP..LE..USA¥850199805-199810

47312TUBE, FRONT BRAKE, NO.2

main47312-33060iSXV20..JPP..CE¥1,090199805-199809

47313TUBE, FRONT BRAKE, NO.3

main47313-33030iSXV20..JPP..CE¥1,090199805-199809

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02875iMCV20,SXV20..JPP¥2,610199608-199908

RH

main90947-02876iMCV20,SXV2#..JPP¥2,610199608-199908

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iMCV20,SXV20..JPP¥200199608-200101

main90401-10058iMCV20,SXV2#..JPP¥220200101

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iMCV20,SXV20..JPP¥310199608-199908

W(ABS)

main47389-30010iMCV20,SXV2#..JPP¥310199908-200101

main47389-50020iMCV20,SXV2#..JPP¥280200101

main90430-10074iSXV20..JPP..CE¥100199805-199908

47314TUBE, FRONT BRAKE, NO.4

main47314-33030iSXV20..JPP..CE¥1,320199805-199809

47315TUBE, FRONT BRAKE, NO.5

main47315-33060iMCV20,SXV2#..JPP¥1,470199608-199908

W(ABS)

main47315-33110iSXV20..JPP..CE;SXV20..JPP..LE..USA¥940199805-199809

47318TUBE, FRONT BRAKE, NO.8

main47318-33040iMCV20,SXV20..JPP¥1,320199608-199908

main47318-33050iMCV20..JPP..(LE,XLE)¥1,320199608

W(TRACTION CONTROL)

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02877iMCV20..JPP¥2,450199608

main90947-02879iSXV20..JPP¥1,760199608-199908

47319TUBE, FRONT BRAKE, NO.9

main47319-33030iMCV20,SXV20..JPP¥1,630199608-199908

main47319-33080iMCV20..JPP..(LE,XLE)¥1,630199608

W(TRACTION CONTROL)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02878iMCV20..JPP¥2,450199608

main90947-02880iSXV20..JPP¥1,760199608-199908

47321TUBE, REAR BRAKE, NO.1

main47321-33020iMCV20,SXV20..JPP¥4,090199608-199908

main47321-33100iSXV23..JPP¥4,090199908

main47321-33120iMCV20,SXV20..JPP¥4,090199908

47322TUBE, REAR BRAKE, NO.2

main47322-33020iMCV20,SXV20..JPP¥3,240199608-199908

47325TUBE, REAR BRAKE, NO.5

main47323-33030iSXV20..JPP¥580199608-199908

47326TUBE, REAR BRAKE, NO.6

main47324-33030iSXV20..JPP¥580199608-199908

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33110iMCV20,SXV20..JPP¥580199608-199908

W(ABS)

main47371-33130iSXV20..JPP..CE;SXV20..JPP..LE..USA¥470199805-199809

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCV20,SXV20..JPP¥670199608-199908

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCV20,SXV2#..JPP¥670199608-199908

47372CLAMP, BRAKE TUBE, NO.2

main47371-33120iMCV20..JPP..(LE,XLE)¥670199608

W(TRACTION CONTROL)

main47371-33200iSXV20..JPP..CE¥670199805-199809

main47371-33240iMCV20,SXV20..JPP¥880199608-199908

W(ABS)

47374BCLAMP, BRAKE TUBE, NO.4

main47371-33100iMCV20,SXV20..JPP¥670199608-199908

W(ABS)

main90461-10755iSXV20..JPP..CE¥240199805-199809

9011908356

main90119-08356¥120

9011908A46

main90119-08A46¥80

9017606043

main90176-06043¥110

9017906158

main90179-06158¥70

9017906219

main90179-06219¥70

9046110755

main90461-10755¥240

9046808040

main90468-08040¥130

9048001621

main90480-01621¥110

9095001459

main90950-01459¥120

32 parts on this diagram · 5 diagrams in section
