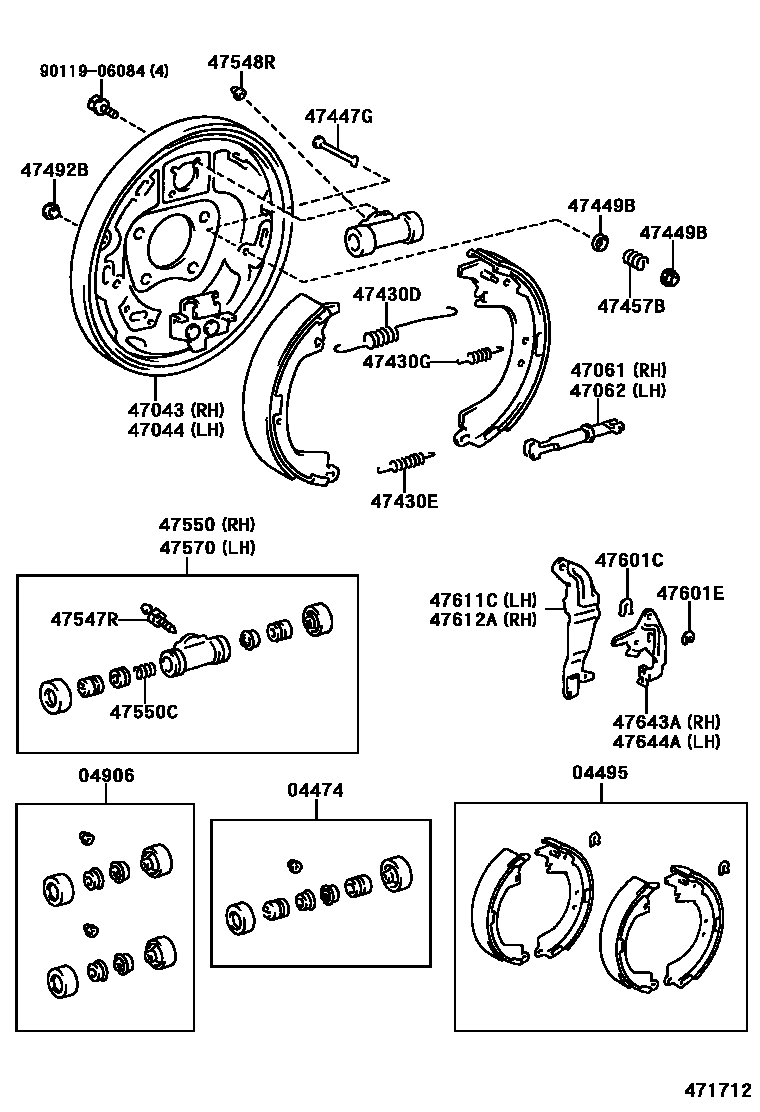

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-20030iSXV20..JPP¥1,980199608-199801

main04474-33010iSXV20..JPP¥1,980199801-199908

04495SHOE KIT, REAR BRAKE

main04495-33010iSXV20..JPP¥7,700199608-199908

04906CUP KIT, REAR WHEEL CYLINDER

main04906-20030iSXV20..JPP¥1,120199608-199801

main04906-33010iSXV20..JPP¥1,110199801-199908

sub04906-28040¥870

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-32020iSXV20..JPP¥5,400199608-199908

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-32020iSXV20..JPP¥5,400199608-199908

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-33010iSXV20..JPP¥2,170199608-199908

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-33010iSXV20..JPP¥2,170199608-199908

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29008iSXV20..JPP¥550199608-199908

RH

main90506-29009iSXV20..JPP¥550199608-199908

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iSXV20..JPP¥230199608-199908

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iSXV20..JPP¥190199608-199908

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iSXV20..JPP¥120199608-199908

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iSXV20..JPP¥120199608-199908

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iSXV20..JPP¥190199608-199908

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iSXV20..JPP¥130199608-199908

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-22020iSXV20..JPP¥180199608-199908

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iSXV20..JPP¥160199608-199908

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20190iSXV20..JPP¥4,950199608-199801

main47550-33010iSXV20..JPP¥5,800199801-199908

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079iSXV20..JPP¥90199608-199908

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20190iSXV20..JPP¥4,950199608-199801

main47570-33010iSXV20..JPP¥5,800199801-199908

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iSXV20..JPP¥110199608-199908

T=1.2

47601ERING, E(FOR REAR BRAKE)

main96160-00500iSXV20..JPP¥100199608-199908

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-33010iSXV20..JPP¥1,040199608-199908

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-33010iSXV20..JPP¥1,040199608-199908

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iSXV20..JPP¥360199608-199908

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-33010iSXV20..JPP¥360199608-199908

9011906084

main90119-06084¥100

26 parts on this diagram · 1 diagram in section
