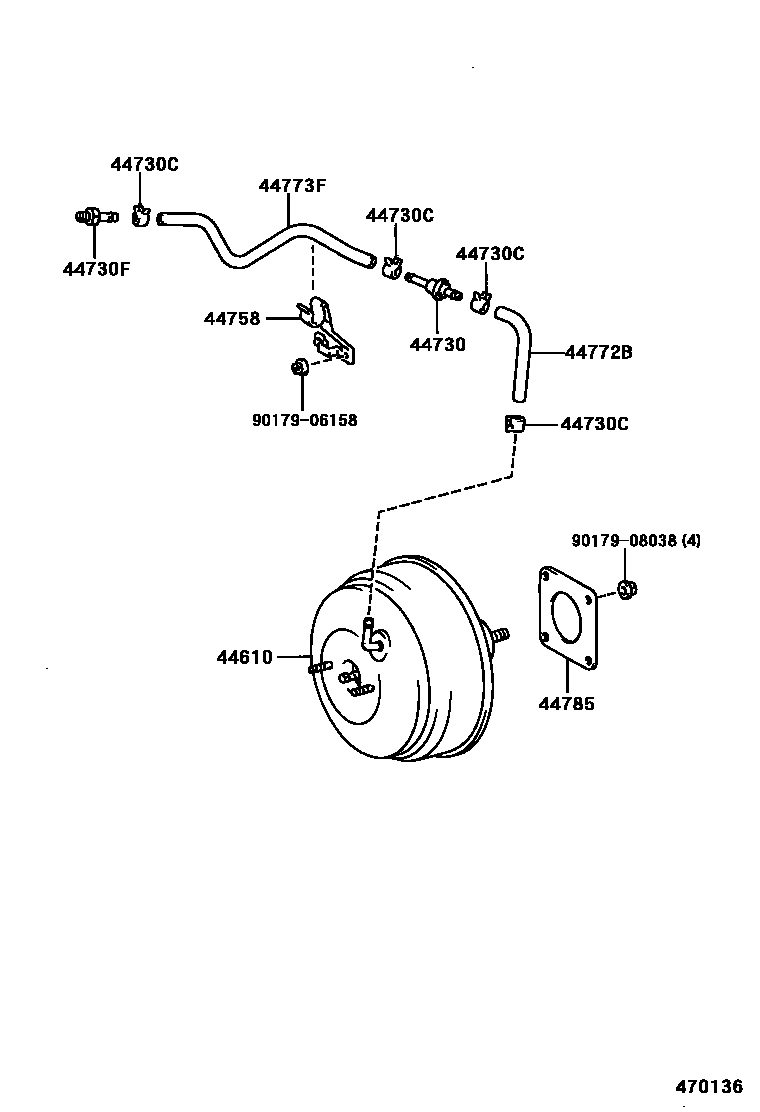

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-33420iMCV20..JPP..(LE,XLE)199608-199808

W(TRACTION CONTROL)

main44610-33430iMCV20..JPP199608-199808

main44610-33510iMCV20..JPP199808-200008

main44610-33530iMCV20..JPP..(LE,XLE)199808-199908

W(TRACTION CONTROL)

main44610-33531iMCV20..JPP..(LE,XLE)199908-200008

W(TRACTION CONTROL)

main44610-33550iSXV20..JPP199806-200008

W(ABS)

main44610-33550iSXV23..JPP199908-200008

main44610-33551iMCV20,SXV2#..JPP200008

main44610-33630iMCV20..JPP..(LE,XLE)200008

W(TRACTION CONTROL)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV20,SXV20..JPP199608-199908

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iMCV20,SXV20..JPP199608-199908

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51076iMCV20..JPP199702

main90404-51319iSXV20..JPP199608-199908

44758BRACKET, VACUUM CHECK VALVE

main44758-33020iMCV20..JPP199608

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33040iSXV20..JPP199608-199908

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33050iMCV20..JPP199608

main44772-33070iSXV20..JPP199608-199908

44773FHOSE, UNION TO CHECK VALVE

main44773-33040iMCV20..JPP199608

main44774-33050iSXV20..JPP199608-199908

44785GASKET, BRAKE BOOSTER

main44785-20020iMCV20,SXV20..JPP199608-199908

9017906158

main90179-06158

9017908038

main90179-08038

11 parts on this diagram · 2 diagrams in section
