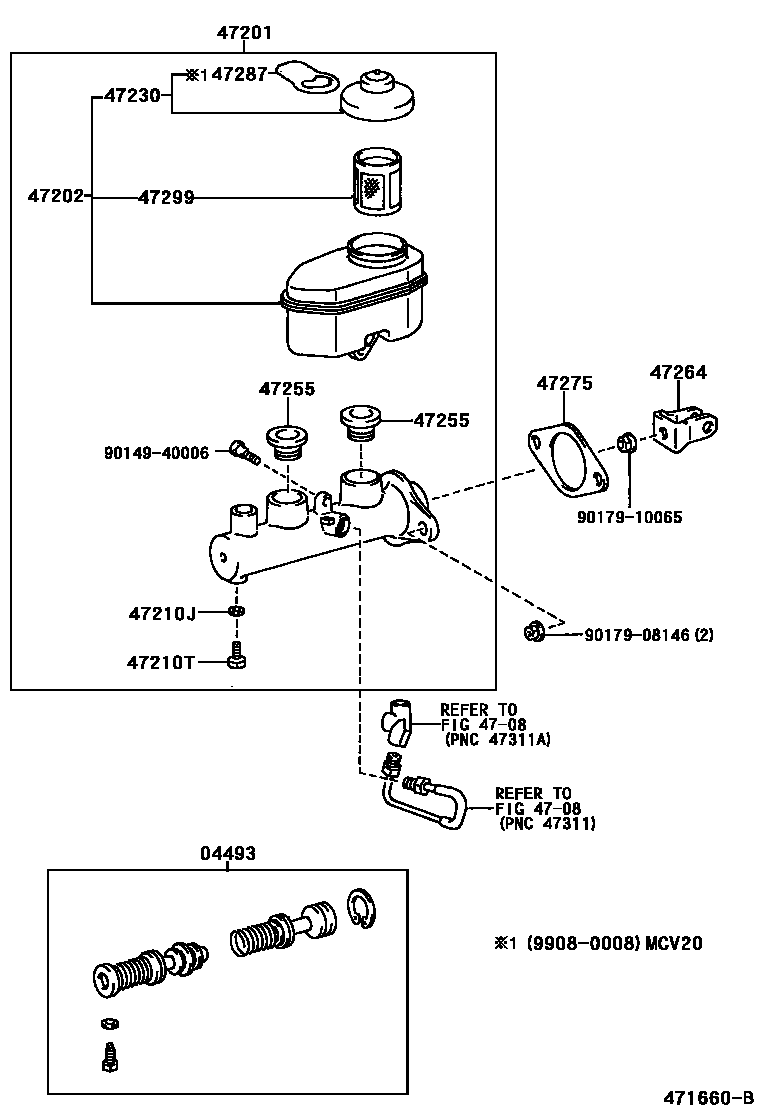

BRAKE MASTER CYLINDER

0001 1 0002 1W(TRACTION CONTROL)

04493CYLINDER KIT, BRAKE MASTER

main04493-21010iMCV20..JPP..(LE,XLE)200008

W(TRACTION CONTROL)

main04493-2B010iMCV20,SXV2#..JPP200008

W(ABS)

main04493-33050iSXV20..JPP..CE;SXV20..JPP..LE..USA199805-200008

main04493-33060iMCV20,SXV2#..JPP199608-200008

W(ABS)

sub04493-33160

main04493-33070iMCV20..JPP..(LE,XLE)199608-199908

W(TRACTION CONTROL)

main04493-33090iMCV20..JPP..(LE,XLE)199908-200008

W(TRACTION CONTROL)

main04493-44010iSXV20..JPP..CE;SXV20..JPP..LE..USA200008

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33100iMCV20..JPP..(LE,XLE)199608-199908

W(TRACTION CONTROL)

main47201-33101iMCV20..JPP..(LE,XLE)199908-200008

W(TRACTION CONTROL)

main47201-33110iSXV20..JPP..CE199805-200008

main47201-33130iMCV20,SXV20..JPP199608-200008

W(ABS)

main47201-33140iMCV20..JPP199908-200008

main47201-33191iSXV20..JPP..CE;SXV20..JPP..LE..USA200008

main47201-33201iMCV20,SXV2#..JPP200008

W(ABS)

main47201-33210iMCV20..JPP..(LE,XLE)200008

W(TRACTION CONTROL)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33011iMCV20,SXV20..JPP199608-200008

main47220-33040iMCV20..JPP199908-200008

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV20,SXV2#..JPP199908

W(ABS)

main90430-06104iSXV20..JPP..CE;SXV20..JPP..LE..USA199608-199908

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV20,SXV20..JPP199608-199908

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCV20,SXV2#..JPP199608-200008

main47230-20140iMCV20..JPP199908-200008

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCV20,SXV20..JPP199608-199908

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-32020iMCV20,SXV2#..JPP199908

main47264-33010iMCV20,SXV20..JPP199608-199908

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCV20,SXV20..JPP199608-199908

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCV20..JPP199908-200008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCV20,SXV20..JPP199608-199908

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
