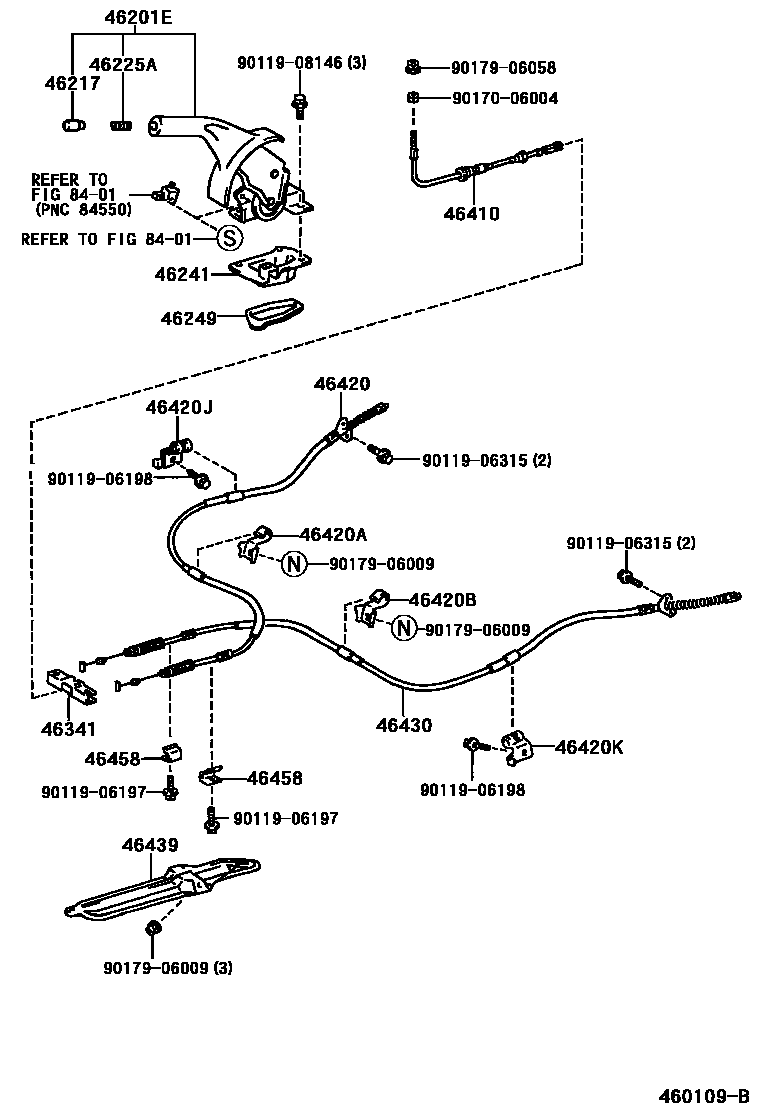

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
SPECIAL EDITION,BLUISH GRAY,TRIM1#
SPECIAL EDITION,DK.SAGE,TRIM6#
SPECIAL EDITION,BLUISH GRAY,TRIM1#
SPECIAL EDITION,OAK,TRIM4#
SPECIAL EDITION,DK.SAGE,TRIM6#
46217KNOB, PARKING BRAKE RELEASE ROD
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46241BOOT, PARKING BRAKE LEVER
46249SHIELD, PARKING BRAKE HOLE
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46458RETAINER, CABLE
8401
9011906197
main90119-06197
9011906198
main90119-06198
9011906315
main90119-06315
9011908146
main90119-08146
9017006004
main90170-06004
9017906009
main90179-06009
9017906058
main90179-06058
23 parts on this diagram · 2 diagrams in section
