STEERING WHEEL

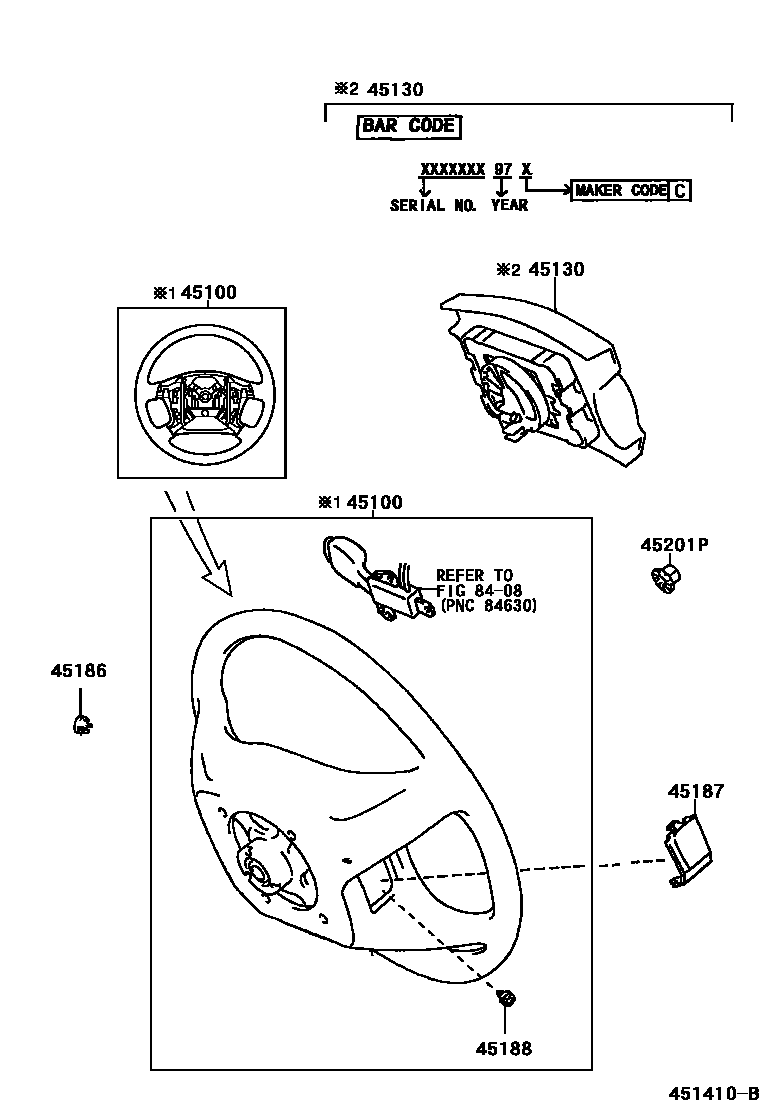

Parts diagram
45100WHEEL ASSY, STEERING
main45100-06332-B2i200008-200107
4-SPOKE,LEATHER,BLUISH GRAY,TRIM1#
main45100-06332-G0i200008-200107
4-SPOKE,LEATHER,DK.SAGE,TRIM6#
main45100-0W020-B0i199608-199708
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub45100-0W020
main45100-0W020-E0i199608-199708
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-0W020
main45100-0W020-G0i199608-199708
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-0W020
main45100-0W070-B0i199708-199908
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main45100-0W070-E0i199708-199908
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#
main45100-0W070-E0i199902-199907
4-SPOKE,LEATHER,ACCENT PACKAGE(USA/HAWAII), TYPE C:REFER TO ILLUSTRATION,OAK,TRIM4#
main45100-0W070-G0i199708-199908
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
main45100-0W071-B0i199908-200107
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main45100-22750-B0i199805-200107
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub45100-22750
main45100-22750-E1i199805-200107
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-22750
main45100-22750-G0i199805-200107
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-22750
main45100-33190-B0i199608-200107
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION, W(CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45100-33291
sub45100-33190
main45100-33190-E0i199608-200107
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION, W(CRUISE CONTROL),OAK,TRIM4#
sub45100-33291
sub45100-33190
main45100-33190-G0i199608-199908
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION, W(CRUISE CONTROL),DK.SAGE,TRIM6#
sub45100-33291
sub45100-33190
main45100-33270-E0i199708-199812
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-33271
main45100-33270-G0i199708-199812
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-33271
main45100-33271-E0i199812-199908
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-33272
main45100-33271-G0i199812-199908
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-33272
main45100-33272-E0i199908-200107
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-0W071
sub45100-33272
main45100-33272-G0i199908-200107
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-0W071
sub45100-33272
main45100-33280-G0i199805-199908
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-33281
main45100-33281-G0i199908-200107
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
main45100-33290-E0i199708-199908
4-SPOKE,URETHANE,OAK,TRIM4#
sub45100-33291
main45100-33290-E0i199805-199908
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(CRUISE CONTROL),OAK,TRIM4#
sub45100-33291
main45100-33290-G0i199805-199908
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(CRUISE CONTROL),DK.SAGE,TRIM6#
sub45100-33291
main45100-33290-G0i199708-199908
4-SPOKE,URETHANE,DK.SAGE,TRIM6#
sub45100-33291
main45100-33291-G0i199908-200107
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(CRUISE CONTROL),DK.SAGE,TRIM6#
sub45100-33190
main45100-33301-E0i200101-200107
4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),OAK,TRIM4#
sub45100-33301
45130BUTTON ASSY, HORN
main45130-06030-B0i199608-199708
W(LEATHER TYPE STEERING WHEEL),BLUISH GRAY,TRIM1#
sub45130-06030
main45130-06030-E0i199608-199708
W(LEATHER TYPE STEERING WHEEL),OAK,TRIM4#
sub45130-06030
main45130-06030-G0i199608-199708
W(LEATHER STEERING WHEEL),DK.SAGE,TRIM6#
sub45130-06030
main45130-06050-B0i199708-199908
W(LEATHER STEERING WHEEL),BLUISH GRAY,TRIM1#,(L)
main45130-06050-E0i199708-199908
W(LEATHER STEERING WHEEL),OAK,TRIM4#,(L)
main45130-06050-E0i199902-199907
ACCENT PACKAGE(USA/HAWAII), W(LEATHER STEERING WHEEL),OAK,TRIM4#
main45130-06050-G0i199708-199908
W(LEATHER STEERING WHEEL),DK.SAGE,TRIM6#,(L)
main45130-06070-B0i199908
W(LEATHER STEERING WHEEL),BLUISH GRAY,TRIM1#,(L)
main45130-06070-E0i199908
W(LEATHER STEERING WHEEL),OAK,TRIM4#,(L)
main45130-06070-G0i199908-200008
W(LEATHER STEERING WHEEL),DK.SAGE,TRIM6#,(L)
main45130-33190-B0i199608-199708
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#
sub45130-33190
main45130-33190-E0i199608-199708
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),OAK,TRIM4#
sub45130-33190
main45130-33190-G0i199608-199708
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),DK.SAGE,TRIM6#
sub45130-33190
main45130-33230-B0i199708-199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#
main45130-33230-E0i199708-199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),OAK,TRIM4#
main45130-33230-G0i199708-199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),DK.SAGE,TRIM6#
main45130-33240-B0i199805-199908
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#
sub45130-33240
main45130-33240-B0i199708-199908
W(LEATHER STEERING WHEEL),BLUISH GRAY,TRIM1#
sub45130-33240
main45130-33240-E0i199805-199908
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),OAK,TRIM4#
sub45130-33240
main45130-33240-E0i199708-199908
W(LEATHER STEERING WHEEL),OAK,TRIM4#
sub45130-33240
main45130-33240-G0i199708-199908
W(LEATHER STEERING WHEEL),DK.SAGE,TRIM6#
sub45130-33240
main45130-33240-G0i199708-199908
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),DK.SAGE,TRIM6#
sub45130-33240
main45130-33260-B0i199908
W(LEATHER STEERING WHEEL),BLUISH GRAY,TRIM1#,(J)
sub45130-33260
main45130-33260-E0i199908
W(LEATHER STEERING WHEEL),OAK,TRIM4#,(J)
sub45130-33260
main45130-33260-G0i199908
W(LEATHER STEERING WHEEL),DK.SAGE,TRIM6#,(J)
sub45130-33260
main45130-33280-B0i199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#
sub45130-33280
main45130-33280-E0i199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),OAK,TRIM4#
sub45130-33280
main45130-33280-G0i199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),DK.SAGE,TRIM6#
sub45130-33280
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-44010-B0i199609
BLUISH GRAY,TRIM1#
sub45186-44010
main45186-44010-E0i199609
OAK,TRIM4#
sub45186-44010
main45186-44010-G0i199609
DK.SAGE,TRIM6#
sub45186-44010
45187COVER, STEERING WHEEL, LOWER NO.3
main45186-33050-B0i199908-200107
BLUISH GRAY,TRIM1#
sub45186-33050
main45186-33050-E0i199908-200107
OAK,TRIM4#
sub45186-33050
main45186-33050-G0i199908-200107
DK.SAGE,TRIM6#
sub45186-33050
main45186-44010-B0i199805-200107
W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#
sub45186-44010
main45186-44010-E0i199805-200107
W(URETHANE STEERING WHEEL),OAK,TRIM4#
sub45186-44010
main45186-44010-G0i199805-200107
W(URETHANE STEERING WHEEL),DK.SAGE,TRIM6#
sub45186-44010
main45187-06030-B0i199608-200107
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
main45187-06030-E0i199608-200107
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
main45187-06030-G0i199608-200107
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
main45187-33020-B0i199910-200107
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
main45187-33020-B0i199608-200107
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
main45187-33020-E0i199608-200107
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45187-33020
main45187-33020-G0i199608-200107
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45187-33020
main45187-33030-B0i199708-199910
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
sub45187-33030
main45187-33030-B0i199708-199910
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
sub45187-33030
main45187-33030-E0i199708-200107
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45187-33020
sub45187-33030
main45187-33030-E0i199708-200107
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45187-33020
sub45187-33030
main45187-33030-G0i199708-200107
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45187-33020
sub45187-33030
main45187-33030-G0i199708-200107
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45187-33020
sub45187-33030
45188SCREW, STEERING WHEEL PAD ATTACHING
main45188-06010i199705-199908
W(LEATHER STEERING WHEEL)
main90148-60007i199608
W(URETHANE STEERING WHEEL)
main90148-60011i199908
L=15.5,W(LEATHER STEERING WHEEL)
main90148-60011i200101
L=15.5,W(WOOD GRAIN STEERING WHEEL)
45201PNUT, STEERING WHEEL SET
main90179-12071i199608-199908
8408

7 parts on this diagram · 6 diagrams in section
