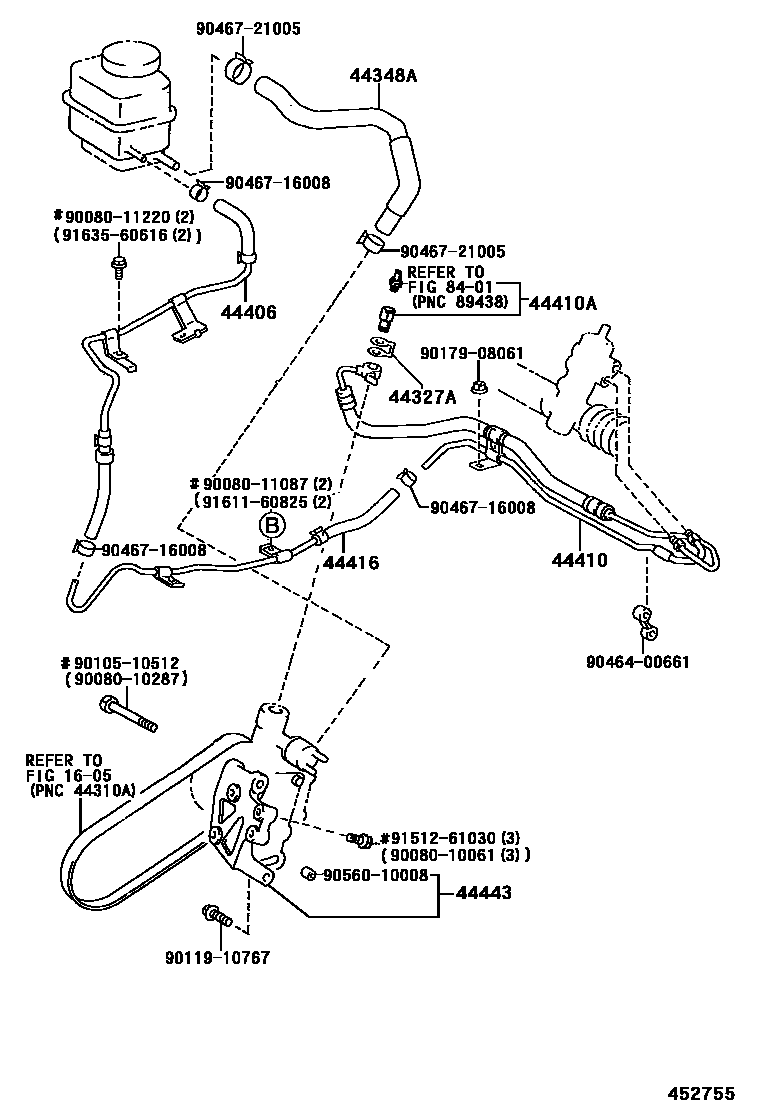

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV20,SXV20..JPP199608-199712

main44327-30030iMCV20,SXV2#..JPP199712-199908

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33120iSXV2#..JPP199608-199908

main44348-33130iMCV20..JPP199608

44406TUBE SUB-ASSY, RETURN

main44406-33060iMCV20,SXV20..JPP199608-199808

sub44406-33061

main44406-33061iMCV20,SXV20..JPP199808-199908

44410TUBE ASSY, PRESSURE FEED

main44410-33120iSXV2#..JPP199608-199908

main44410-33140iMCV20..JPP199608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCV20,SXV20..JPP199608-199908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33090iMCV20,SXV2#..JPP199608-199908

44443BRACKET, PUMP

main44443-33020iSXV20..JPP199608-199908

main44443-33040iMCV20..JPP199608-199708

sub44443-33041

main44443-33041iMCV20..JPP199708

8401

9008010061

main90080-10061

9008010287

main90080-10287

9008011087

main90080-11087

9008011220

main90080-11220

9010510512

main90105-10512

9011910767

main90119-10767

9017908061

main90179-08061

9046400661

main90464-00661

9046716008

main90467-16008

9046721005

main90467-21005

9056010008

main90560-10008

9151261030

main91512-61030

9161160825

main91611-60825

9163560616

main91635-60616

23 parts on this diagram · 2 diagrams in section
