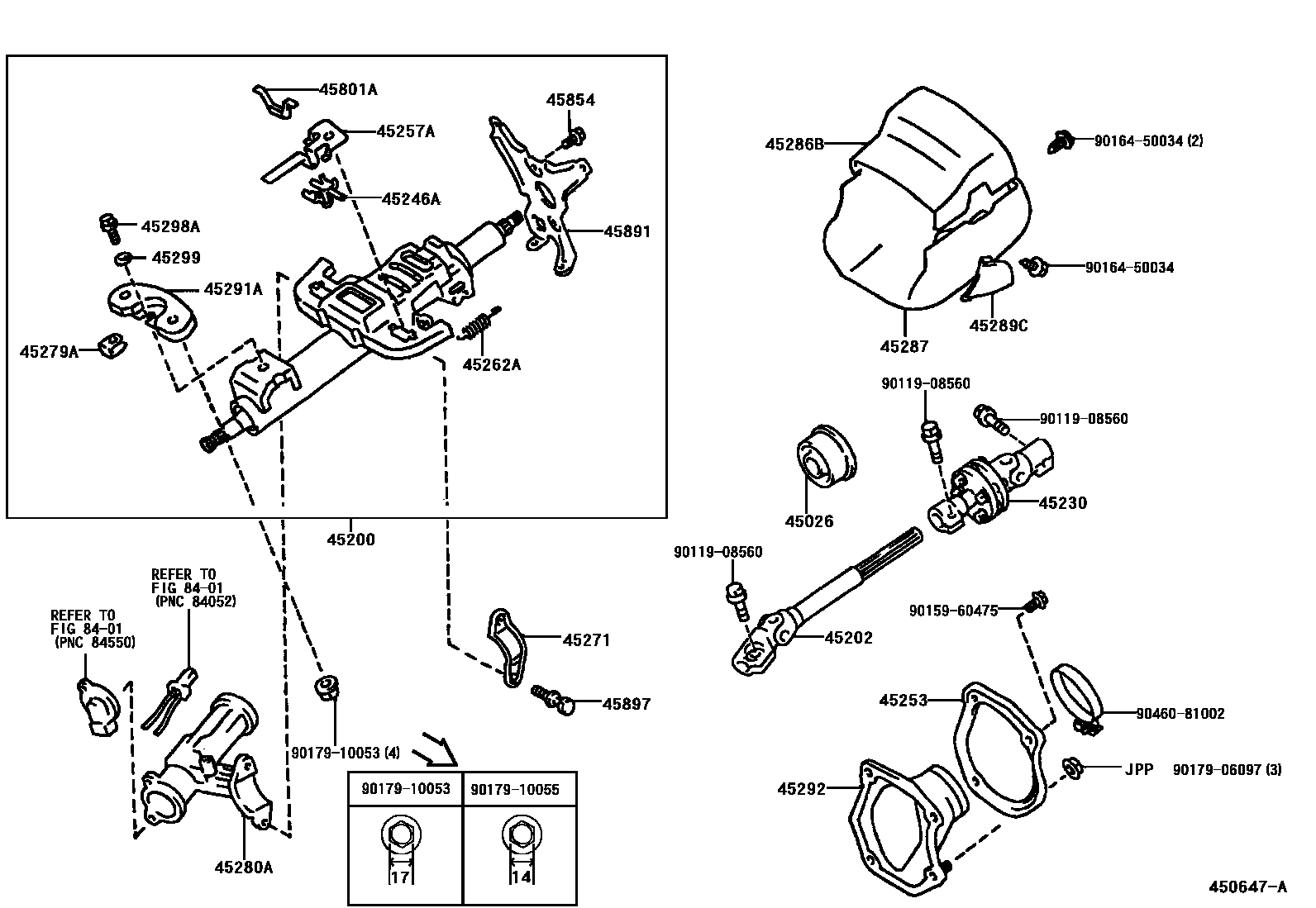

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45200POST ASSY, STEERING
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45230COUPLING ASSY, FLEXIBLE
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45262ASPRING, TILT LEVER RETURN
45271CLAMP, STEERING COLUMN, UPPER
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
BLUISH GRAY,TRIM1#
DK.SAGE,TRIM6#
45289CCOVER, STEERING COLUMN, LWR NO.2
45291ASUPPORT, STEERING COLUMN TUBE
45292SEAL, MAIN SHAFT LOWER DUST
45298ABOLT, STEERING COLUMN LOWER TUBE
45299WASHER, STEERING COLUMN LOWER TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45854BOLT, TURN SIGNAL BRACKET
45891BRACKET, TURN SIGNAL
45897BOLT, STEERING LOCK SET
8401
9011908560
9015960475
9016450034
9017906097
9017910053
9017910055
9046081002
30 parts on this diagram · 1 diagram in section
