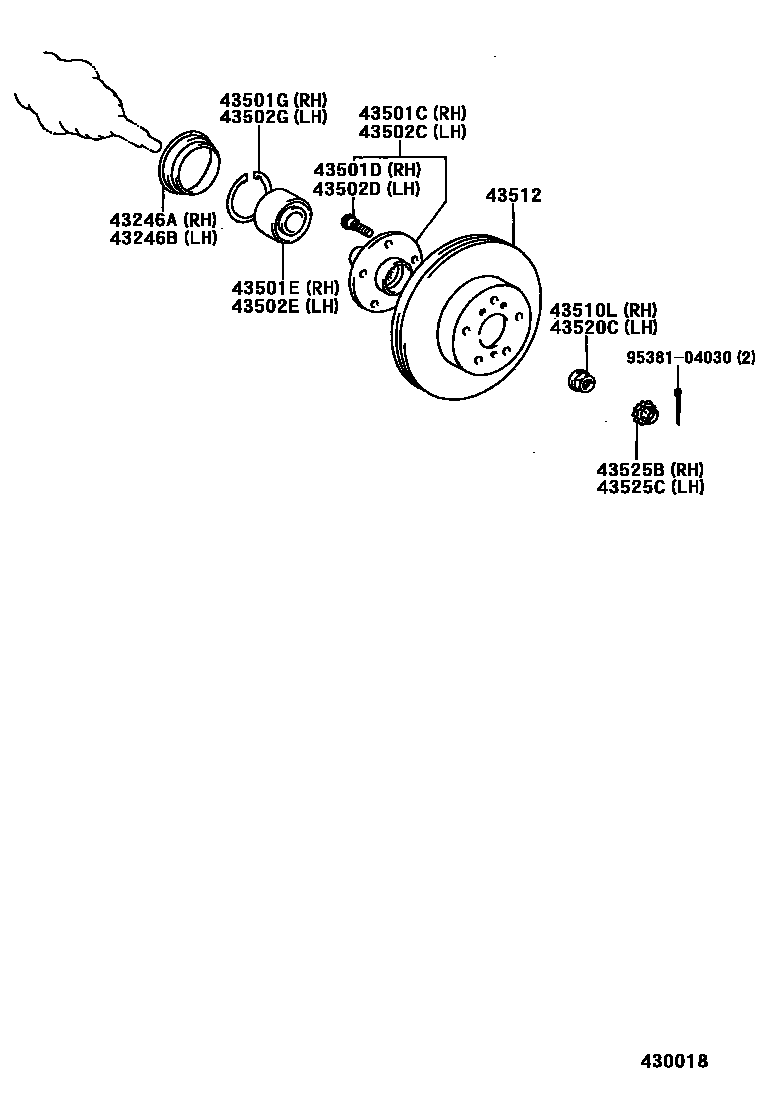

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-17020iSXV20..JPP..CE199805-199809

main43246-32020iMCV20,SXV20..JPP199608

W(ABS)

main43246-32020iSXV23..JPP199908

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-17020iSXV20..JPP..CE;SXV20..JPP..LE..USA199805-199809

main43246-32020iMCV20,SXV20..JPP199608

W(ABS)

main43246-32020iSXV23..JPP199908

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32070iSXV20..JPP199608-199908

main43502-33010iMCV20..JPP199608-200102

sub43502-33030

main43502-33030iMCV20..JPP200102

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMCV20,SXV20..JPP199608-199908

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008iMCV20,SXV2#..JPP199608-199908

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iMCV20,SXV20..JPP199608-199908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32070iSXV2#..JPP199608-199908

main43502-33010iMCV20..JPP199608-200102

sub43502-33030

main43502-33030iMCV20..JPP200102

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMCV20,SXV20..JPP199608-199908

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008iMCV20,SXV20..JPP199608-199908

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iMCV20,SXV20..JPP199608-199908

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001iMCV20,SXV2#..JPP199805-199908

main90179-22020iMCV20,SXV20..JPP199608-199808

main90179-22020iSXV20..JPP..LE..CND199808-199908

W(ABS)

43512DISC, FRONT

main43512-33020iSXV20..JPP..CE199908-200008

W(14INCHES DISC BRAKE)

main43512-33020iSXV20..JPP199608-199908

main43512-33040iMCV20..JPP199608-199709

sub43512-33041

main43512-33041iMCV20..JPP199709-199908

sub43512-33043

main43512-33042iMCV20,SXV2#..JPP199908-200008

W(15INCHES DISC BRAKE)

main43512-33042iMCV20..JPP200008

main43512-33080iSXV2#..JPP200008

W(15INCHES DISC BRAKE)

sub43512-33043

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001iSXV20..JPP..CE;SXV20..JPP..USA199805-199908

main90179-22020iSXV20..JPP..LE..CND199808-199908

W(ABS)

main90179-22020iMCV20,SXV20..JPP199608-199808

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iMCV20,SXV2#..JPP199608

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iMCV20,SXV2#..JPP199608

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section
