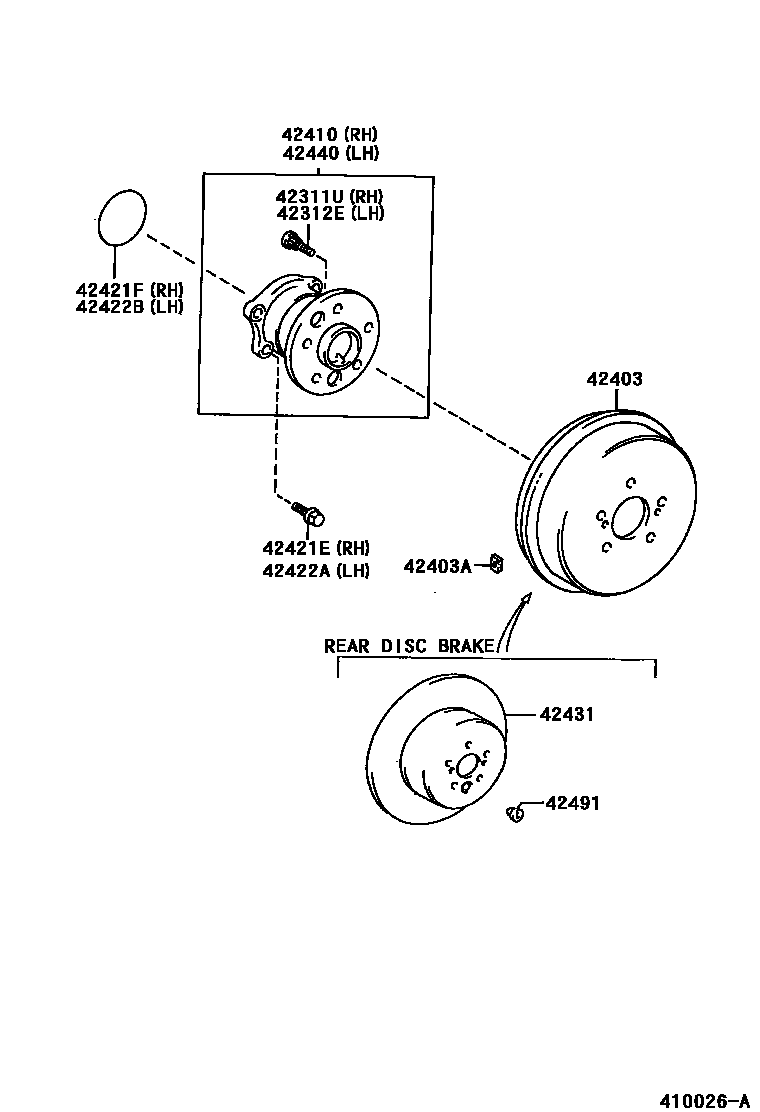

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iMCV20,SXV2#..JPP199608-199908

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iMCV20,SXV20..JPP199608-199908

42403DRUM SUB-ASSY, REAR BRAKE

main42431-33020iSXV20..JPP199608-199908

sub42431-33110

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01287iSXV2#..JPP199608-199908

10G

main90937-01288iSXV20..JPP199608-199908

20G

main90937-01289iSXV20..JPP199608-199908

30G

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-33020iSXV20..JPP..CE199805-199808

main42410-33040iSXV20..JPP..CE199808-199809

main42450-33010iMCV20,SXV20..JPP199608-199808

W(ABS)

main42450-33020iMCV20,SXV20..JPP199808

W(ABS)

main42450-33020iSXV23..JPP199908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iMCV20,SXV20..JPP199608-199908

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iMCV20,SXV20..JPP199608-199908

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iMCV20,SXV20..JPP199608-199908

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iMCV20,SXV20..JPP199608-199908

sub90301-63006

42431DISC, REAR

main42431-33010iMCV20..JPP199608

sub42431-33060

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-33020iSXV20..JPP..CE199805-199808

main42410-33040iSXV20..JPP..CE;SXV20..JPP..LE..USA199808-199809

main42450-33010iMCV20,SXV20..JPP199608-199808

W(ABS)

main42450-33020iSXV23..JPP199908

main42450-33020iMCV20,SXV20..JPP199808

W(ABS)

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-14010iSXV20..JPP199608-199908

main47491-22020iMCV20..JPP199608

12 parts on this diagram · 1 diagram in section
