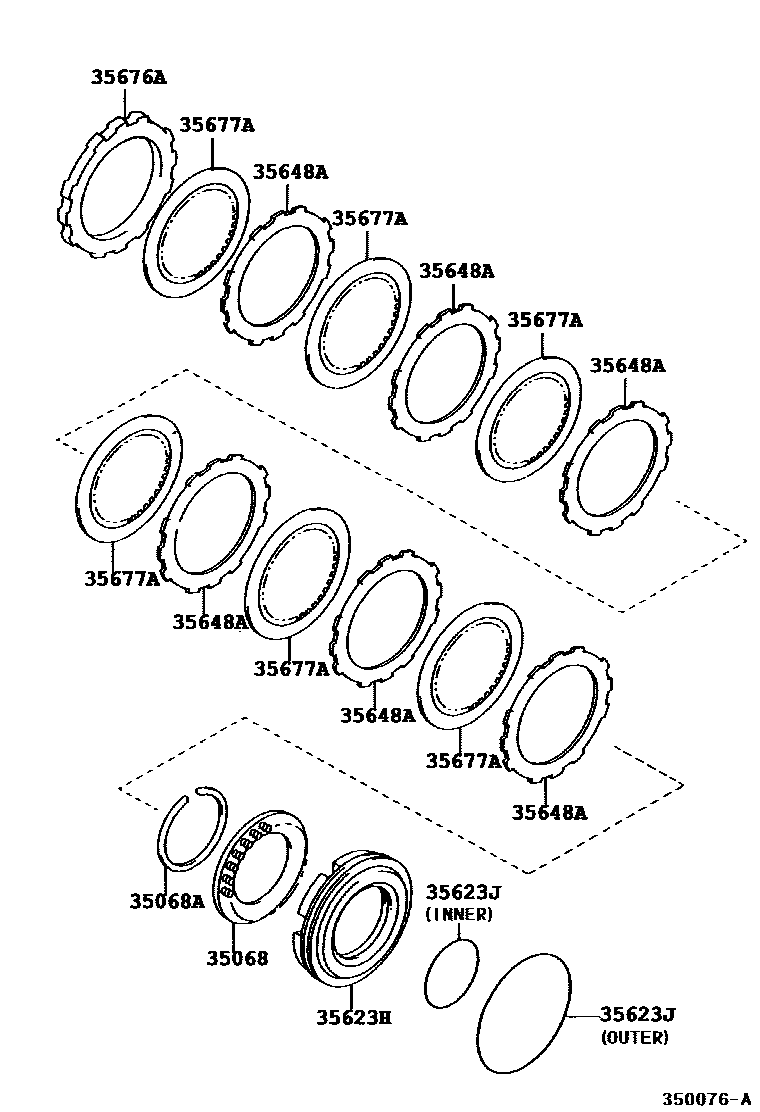

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A541E 0002 1A140E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-20010iSXV2#..JPP..ATM199612-199908

main35068-32010iSXV20..JPP199608-199612

sub35068-20010

main35068-33010iMCV20..JPP199608

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iMCV20..JPP199608

main90520-90001iSXV2#..JPP..ATM199608

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32050iSXV20..JPP..ATM199608-199908

main35623-33010iMCV20..JPP199608

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iMCV20..JPP199608

INNER

main90301-94001iSXV2#..JPP..ATM199608-199908

INNER

main90301-99022iSXV20..JPP..ATM199608-199908

OUTER

main90301-99078iMCV20..JPP199608

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iSXV20..JPP..ATM199608-199908

main35648-33020iMCV20..JPP199608

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iSXV20..JPP..ATM199810-199908

T=3.5

main35676-32010iSXV20..JPP..ATM199608-199810

T=3.5

sub35676-12030

main35676-33010iMCV20..JPP199608

T=3.6

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32060iSXV20..JPP..ATM199608-200012

main35677-32061iSXV2#..JPP..ATM200012

main35677-33040iMCV20..JPP199608

7 parts on this diagram · 2 diagrams in section
