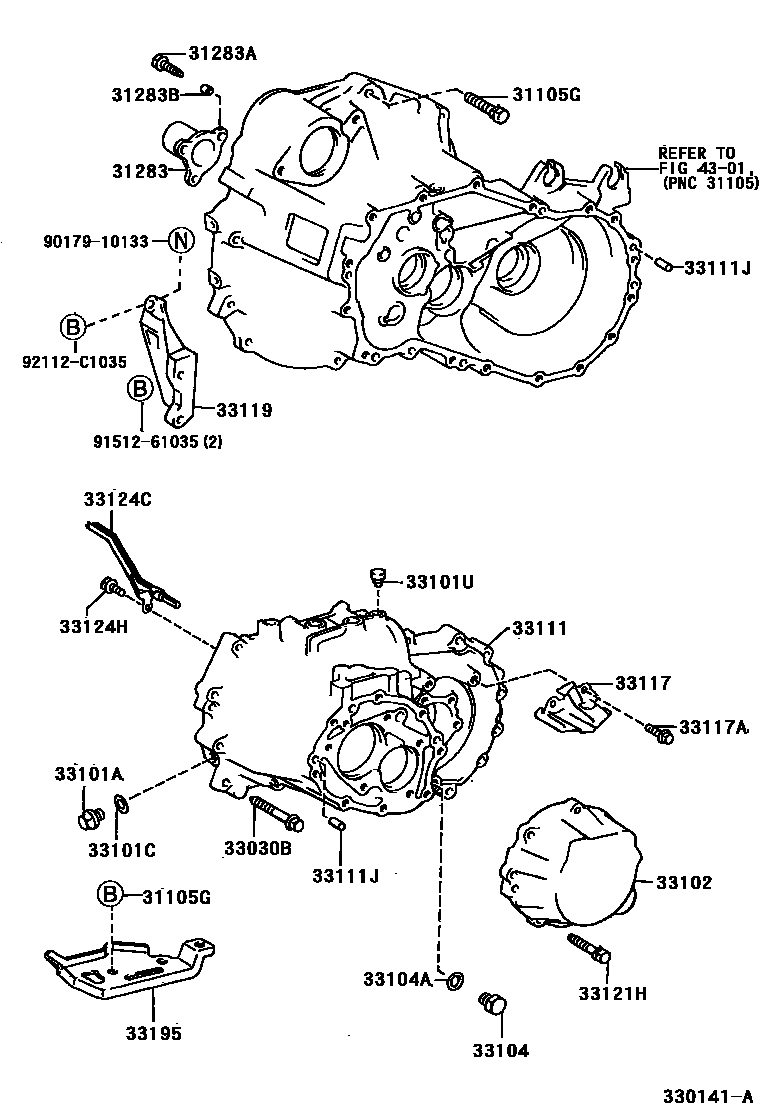

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX55-30
31283RETAINER, CLUTCH RELEASE BEARING HUB
31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)
sub91511-B0620
31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33117PROTECTOR, MANUAL TRANSMISSION CASE
33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
sub91641-H0820
33119PLATE, STIFFENER, LH(MTM)
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33195HANGER, TRANSMISSION CASE, NO.1
4301
9017910133
main90179-10133
9151261035
main91512-61035
92112C1035
main92112-C1035
24 parts on this diagram · 1 diagram in section
