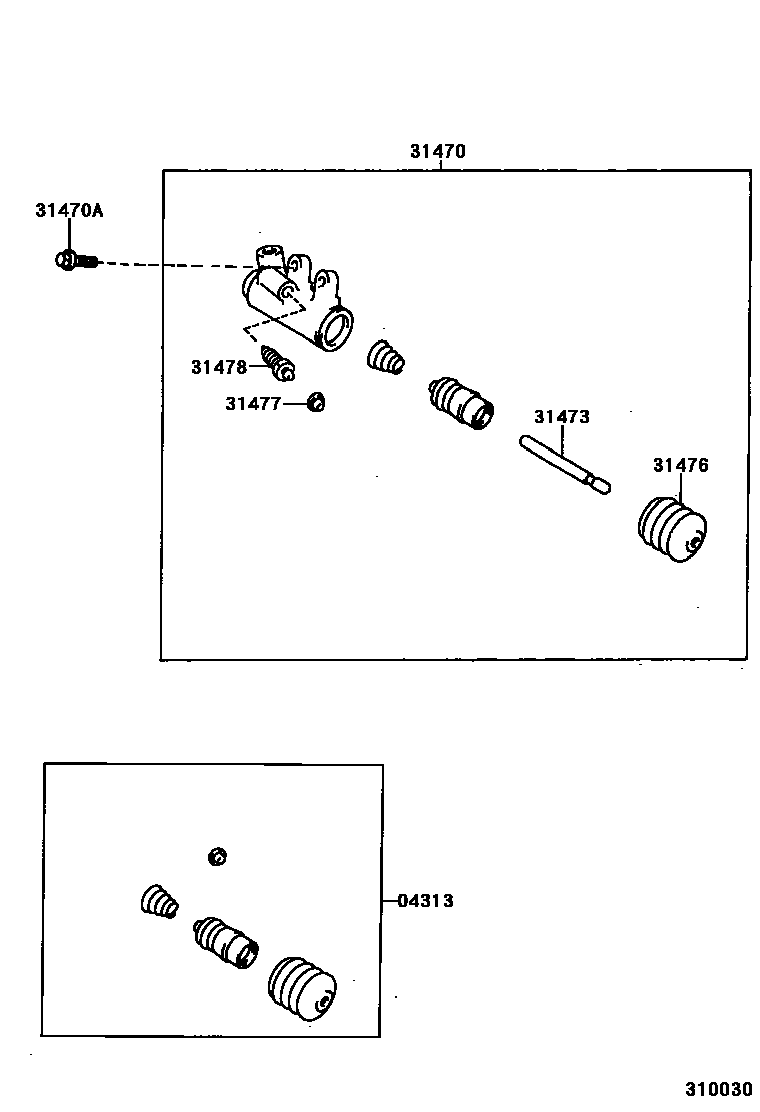

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iSXV20..JPP..MTM199808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-32032iSXV20..JPP..MTM199808

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iSXV20..JPP..MTM199808

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iSXV20..JPP..MTM199808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iSXV20..JPP..MTM199808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iSXV20..JPP..MTM199808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iSXV20..JPP..MTM199808

7 parts on this diagram · 1 diagram in section
