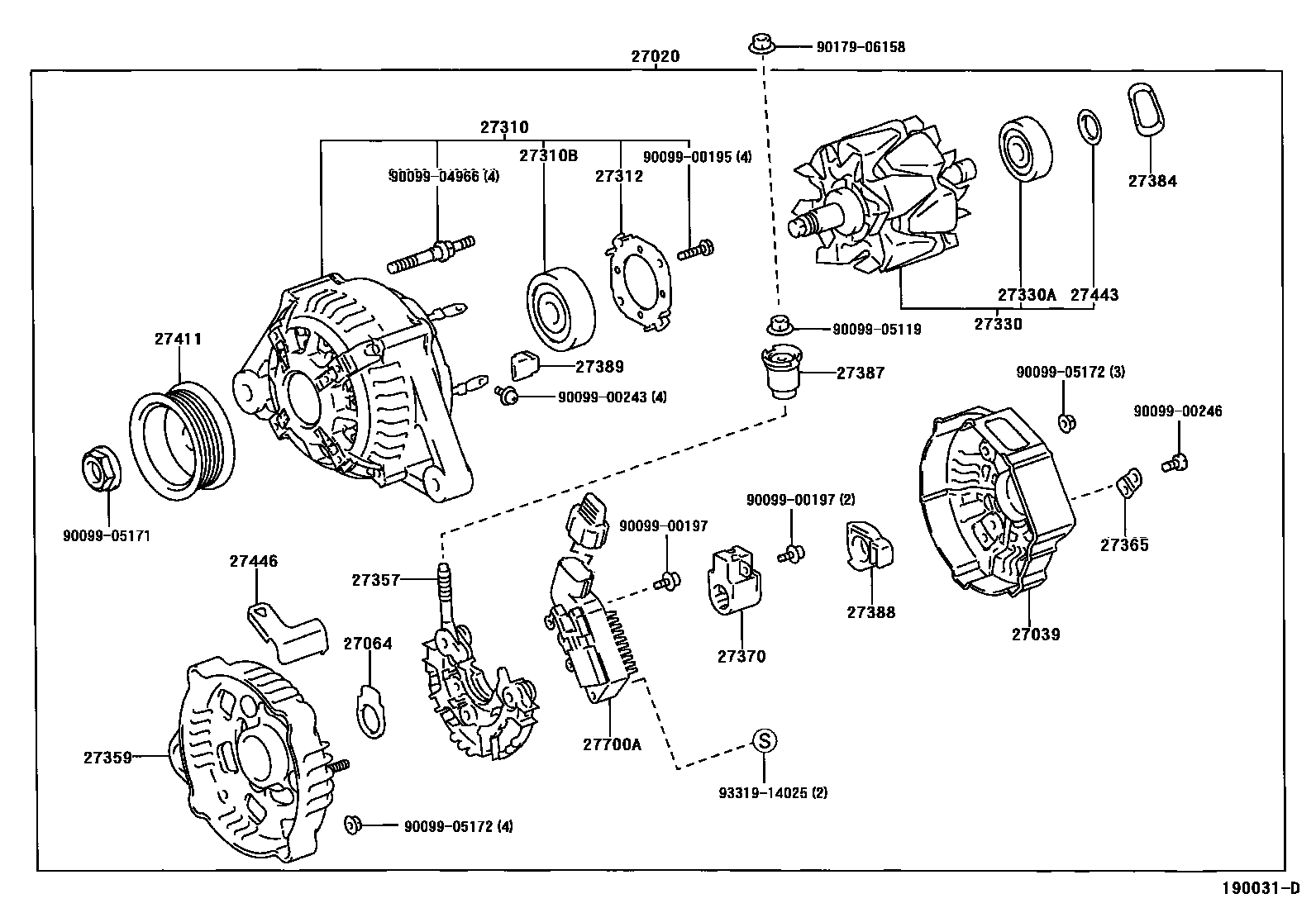

ALTERNATOR
27020ALTERNATOR ASSY
12V 80A,(L)
27064SEAL, ALTERNATOR PLATE
(L)
(J)
27310FRAME ASSY, DRIVE END, ALTERNATOR
(L)
(J)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
(J)
27312PLATE, RETAINER
(L)
(J)
27330ABEARING(FOR ALTERNATOR ROTOR)
(L)
(J)
27357HOLDER, ALTERNATOR, W/RECTIFIER
(L)
(J)
27359FRAME, ALTERNATOR RECTIFIER END
(L)
(J)
27365PLATE, TERMINAL
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
(L)
(J)
27387INSULATOR, TERMINAL
27388COVER, ALTERNATOR BRUSH
(J)
27389INSULATOR, TERMINAL
(J)
27411PULLEY, ALTERNATOR
(L)
(J)
27443COVER, ALTERNATOR BEARING
(L)
(J)
27446CLIP, ALTERNATOR CORD
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
9331914025
main93319-14025
30 parts on this diagram · 3 diagrams in section
