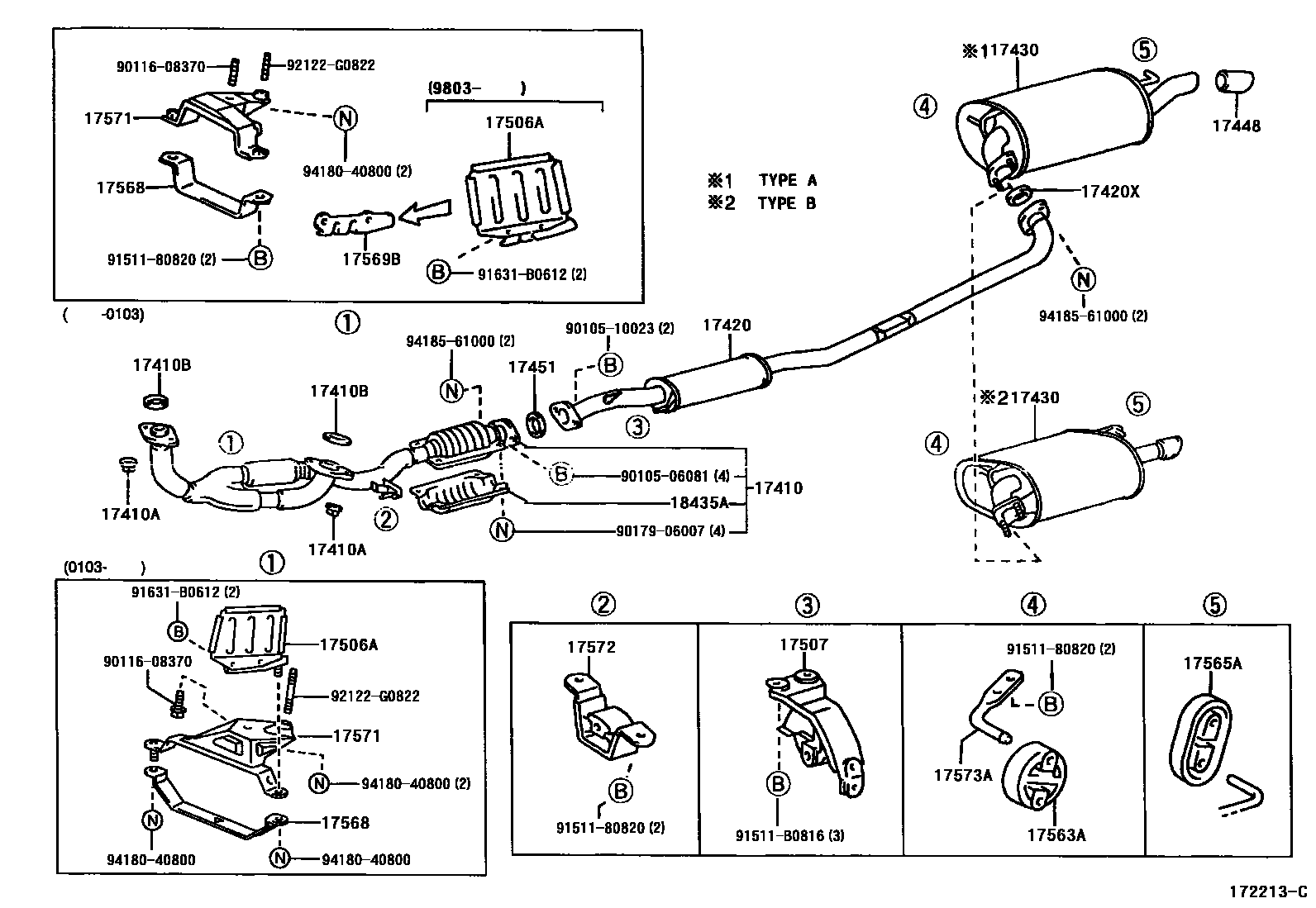

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17568STAY, EXHAUST PIPE SUPPORT
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
NO.2
NO.1
9010506081
main90105-06081
9010510023
main90105-10023
9011608370
main90116-08370
9017906007
main90179-06007
9151180820
main91511-80820
91511B0816
main91511-B0816
91631B0612
main91631-B0612
92122G0822
main92122-G0822
9418040800
main94180-40800
9418561000
main94185-61000
28 parts on this diagram · 3 diagrams in section
