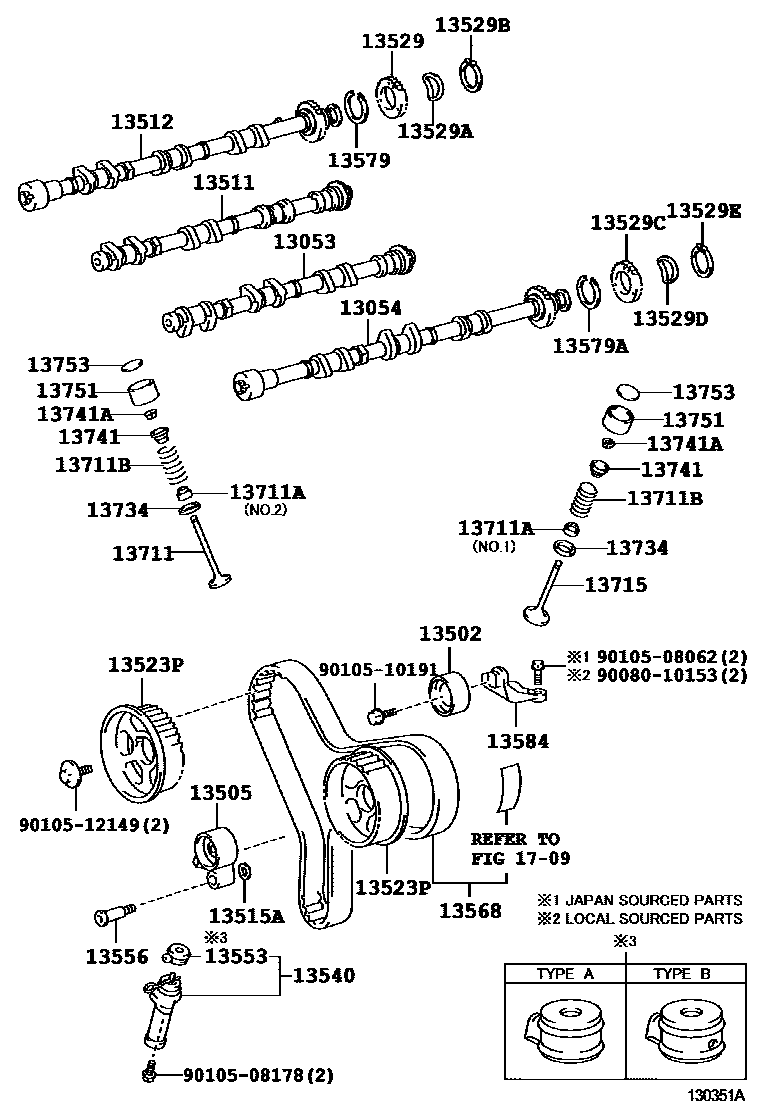

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
(L)
(J)
13054CAMSHAFT SUB-ASSY, NO.4
(L)
(J)
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
(L)
(J)
13512CAMSHAFT, NO.2
(L)
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
(L)
(J)
(J)
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13540TENSIONER ASSY, CHAIN, NO.1
13553COVER, CHAIN TENSIONER DUST
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
(L)
(J)
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13584BRACKET, TIMING BELT IDLER
13711VALVE, INTAKE
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2,(L)
NO.1,(L)
NO.2
NO.2
NO.1
NO.2,(J)
NO.2
NO.2
NO.1,(J)
NO.1
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
13715VALVE, EXHAUST
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.000,MARK 00
T=2.040,MARK 04
T=2.080,MARK 08
T=2.120,MARK 12
T=2.160,MARK 16
T=2.200,MARK 20
T=2.240,MARK 24
T=2.280,MARK 28
T=2.320,MARK 32
T=2.360,MARK 36
T=2.400,MARK 40
T=2.440,MARK 44
T=2.480,MARK 48
T=2.520,MARK 52
T=2.560,MARK 56
T=2.600,MARK 60
T=2.640,MARK 64
T=2.680,MARK 68
T=2.720,MARK 72
T=2.760,MARK 76
T=2.800,MARK 80
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
1709
9008010153
main90080-10153
9010508062
9010508178
9010510191
9010512149
36 parts on this diagram · 3 diagrams in section
