WIRING & CLAMP

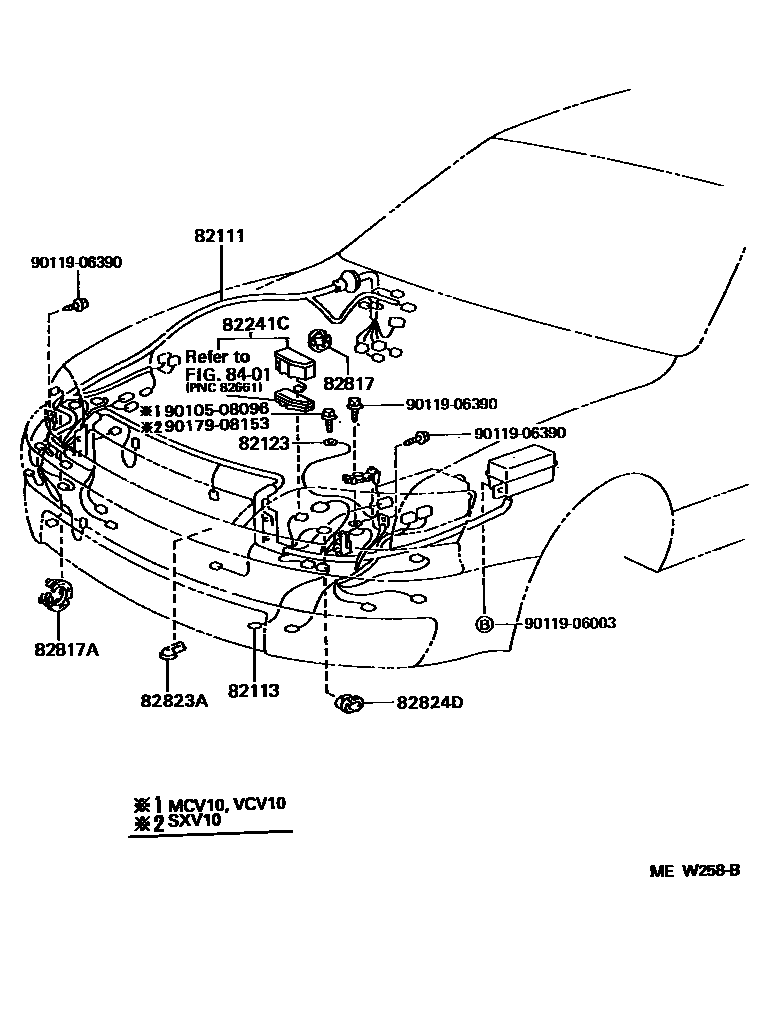

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-33020i199106-199204
main82111-33021i199204-199308
main82111-33030i199106-199204
W(*66)
main82111-33031i199204-199308
W(*66)
main82111-33050i199106-199204
main82111-33051i199204-199308
main82111-33060i199106-199204
W(*66)
main82111-33061i199204-199308
W(*66)
main82111-33080i199106-199204
main82111-33081i199204-199308
main82111-33090i199106-199204
W(*66)
main82111-33091i199204-199308
W(*66)
main82111-33100i199106-199204
main82111-33101i199204-199308
main82111-33110i199106-199204
W(*66)
main82111-33111i199204-199308
W(*66)
main82111-33510i199308-199408
main82111-33520i199308-199408
W(*66)
main82111-33530i199308-199408
main82111-33540i199308-199408
W(*66)
main82111-33560i199308-199402
main82111-33570i199308-199402
W(*66)
main82111-33580i199308-199402
main82111-33590i199308-199402
W(*66)
main82111-33850i199408-199508
main82111-33851i199508-199608
main82111-33860i199408-199508
W(*66)
main82111-33861i199508-199608
W(*66)
main82111-33870i199408-199508
main82111-33871i199508-199608
main82111-33880i199408-199508
W(*66)
main82111-33881i199508-199608
W(*66)
82113WIRE, ENGINE ROOM, NO.3
main82113-33010i199106-199608
82123WIRE, ENGINE, NO.3
main82123-33010i199106-199308
main82123-33020i199308-199608
82241CWIRE, RELAY
main82241-33010i199106-199110
sub82241-33011
main82241-33011i199110-199402
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-2B730i199106-199608
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-06020i199602-199608
main82817-2B200i199106-199602
82823CAP, TERMINAL, NO.1
main82823-22050i199408-199608
main82823-22060i199106-199408
82823ACAP, TERMINAL, NO.2
main82823-20050i199111-199408
82824CONNECTOR, WIRING HARNESS
main82824-24010i199106-199608
82824DCONNECTOR, WIRING HARNESS
main82824-20050i199106-199608
8401
9010508096
main90105-08096
9011906003
main90119-06003
9011906390
main90119-06390
9017908153
main90179-08153

15 parts on this diagram · 12 diagrams in section
