FRONT SEAT & SEAT TRACK

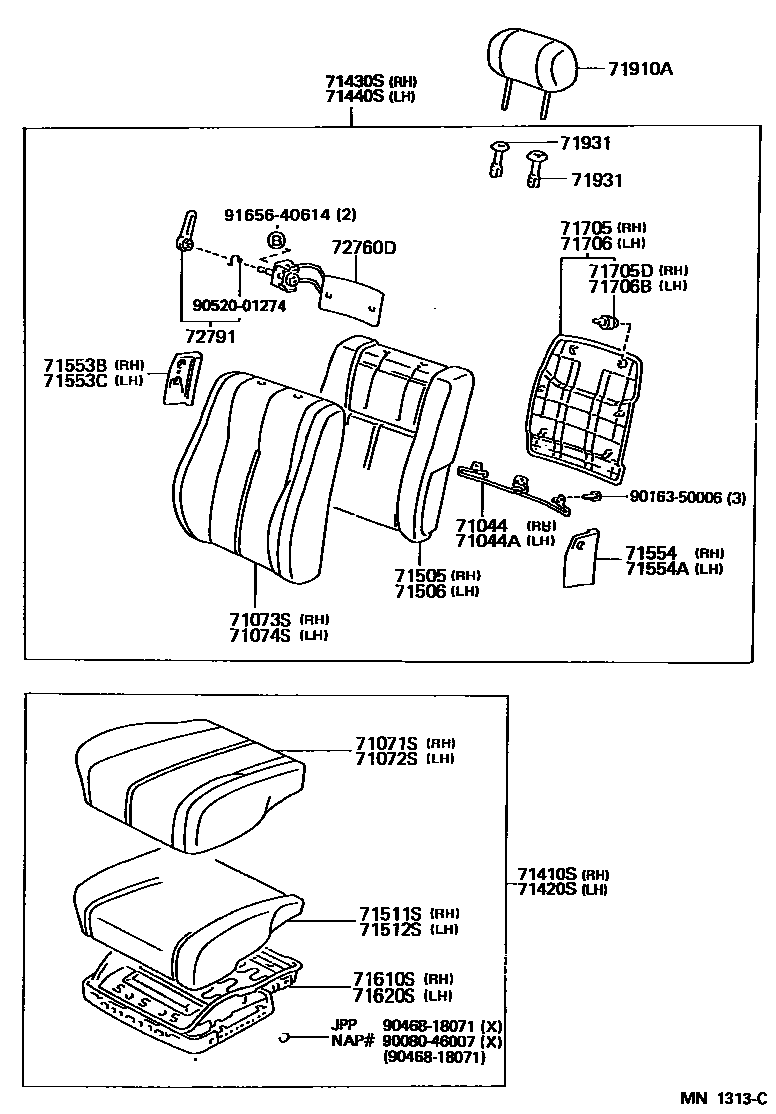

Parts diagram
71044WIRE SUB-ASSY, FRONT SEATBACK, LOWER RH
main71044-32010i¥1,200199106-199608
71044AWIRE SUB-ASSY, FRONT SEATBACK, LOWER LH
main71044-32010i¥1,200199106-199608
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-33080-04i199106-199308
DARK BLUE,TRIM8#
main71071-33080-B0i199106-199308
MEDIUM GRAY,TRIM1#
main71071-33080-E0i199206-199308
MEDIUM OAK,TRIM4#
main71071-33080-K0i199106-199308
TAUPE,TRIM9#
main71071-33081-E1i199308-199408
OAK,TRIM4#
sub71071-33101¥35,100
sub71071-33081
main71071-33081-E3i199408-199508
MEDIUM OAK,TRIM4#
sub71071-33101¥35,100
sub71071-33081
main71071-33101-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71071-33101¥35,100
sub71071-33081
main71071-33101-B3i199408-199508
MEDIUM GRAY,TRIM1#
sub71071-33101¥35,100
sub71071-33081
main71071-33101-K0i199308-199408
TAUPE,TRIM9#
sub71071-33101¥35,100
sub71071-33081
main71071-33101-K2i199408-199508
TAUPE,TRIM9#
sub71071-33101¥35,100
sub71071-33081
main71071-33102-B4i199508-199608
MEDIUM GRAY,TRIM1#
main71071-33102-E4i199508-199608
MEDIUM OAK,TRIM4#
main71071-33102-K3i199508-199608
TAUPE,TRIM9#
main71071-33111-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71071-33221
main71071-33111-E1i199308-199408
OAK,TRIM4#
sub71071-33221
main71071-33112-B2i199408-199608
MEDIUM GRAY,TRIM1#
sub71071-33112
sub71071-33222
main71071-33112-E3i199408-199608
MEDIUM OAK,TRIM4#
sub71071-33112
sub71071-33222
main71071-33120-04i199303-199308
DARK BLUE,TRIM8#
sub71071-33230¥44,100
main71071-33120-E0i199303-199408
MEDIUM OAK,TRIM4#
sub71071-33230¥44,100
main71071-33121-B3i199408-199608
MEDIUM GRAY,TRIM1#
sub71071-33121
sub71071-33231¥35,100
main71071-33121-E2i199408-199608
MEDIUM OAK,TRIM4#
sub71071-33121
sub71071-33231¥35,100
main71071-33121-K1i199408-199504
TAUPE,TRIM9#
sub71071-33121
sub71071-33231¥35,100
main71071-33130-03i199106-199208
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33131
main71071-33130-04i199106-199208
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71071-33131
main71071-33130-E0i199206-199208
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33131
main71071-33131-B0i199208-199310
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33133
main71071-33131-E0i199208-199310
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33133
main71071-33131-J0i199208-199308
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71071-33133
main71071-33132-B1i199310-199401
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33133
main71071-33132-E1i199310-199401
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33133
main71071-33133-B1i199401-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33134
main71071-33133-E1i199401-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33134
main71071-33134-B3i199508-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33134
main71071-33134-E3i199508-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33134
main71071-33150-02i199202-199408
TAUPE,TRIM9#
main71071-33150-02i199202-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71071-33150-03i199202-199408
MEDIUM GRAY,TRIM1#
main71071-33150-03i199202-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71071-33150-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
main71071-33150-04i199202-199308
DARK BLUE,TRIM8#
main71071-33150-E0i199206-199402
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
main71071-33150-E0i199206-199408
MEDIUM OAK,TRIM4#
main71071-33151-B1i199408-199608
MEDIUM GRAY,TRIM1#
sub71071-33151
sub71071-33360
main71071-33151-K1i199408-199608
TAUPE,TRIM9#
sub71071-33151
sub71071-33360
main71071-33220-02i199106-199308
TAUPE,TRIM9#
main71071-33220-03i199106-199308
MEDIUM GRAY,TRIM1#
main71071-33220-04i199106-199308
DARK BLUE,TRIM8#
main71071-33220-E0i199206-199308
MEDIUM OAK,TRIM4#
main71071-33221-K0i199308-199408
TAUPE,TRIM9#
main71071-33222-K2i199408-199608
TAUPE,TRIM9#
sub71071-33112
sub71071-33222
main71071-33230-02i199106-199408
TAUPE,TRIM9#
main71071-33230-03i199106-199408
MEDIUM GRAY,TRIM1#
main71071-33230-04i199106-199303
DARK BLUE,TRIM8#
main71071-33230-E0i199206-199303
MEDIUM OAK,TRIM4#
main71071-33231-K2i199504-199608
TAUPE,TRIM9#
sub71071-33121
sub71071-33231¥35,100
main71071-33294-B3i199408-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33294¥128,000
main71071-33294-E3i199408-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33294¥128,000
main71071-33310-B0i199308-199310
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33311
main71071-33310-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
sub71071-33311
main71071-33311-B1i199310-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71071-33311
main71071-33311-B3i199408-199608
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
sub71071-33311
main71071-33311-E1i199310-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71071-33311
main71071-33311-E3i199408-199608
W(LEATHER SEAT),LIGHT OAK,TRIM4#
sub71071-33311
main71071-33360-E1i199408-199608
MEDIUM OAK,TRIM4#
sub71071-33151
sub71071-33360
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33080-04i199106-199308
DARK BLUE,TRIM8#
main71072-33080-B0i199106-199308
MEDIUM GRAY,TRIM1#
main71072-33080-E0i199206-199308
MEDIUM OAK,TRIM4#
main71072-33080-K0i199106-199308
TAUPE,TRIM9#
main71072-33081-E1i199308-199408
OAK,TRIM4#
sub71072-33111
sub71072-33081
main71072-33081-E3i199408-199508
MEDIUM OAK,TRIM4#
sub71072-33111
sub71072-33081
main71072-33111-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71072-33111
sub71072-33081
main71072-33111-B3i199408-199508
MEDIUM GRAY,TRIM1#
sub71072-33111
sub71072-33081
main71072-33111-K0i199308-199408
TAUPE,TRIM9#
sub71072-33111
sub71072-33081
main71072-33111-K2i199408-199508
TAUPE,TRIM9#
sub71072-33111
sub71072-33081
main71072-33112-B4i199508-199608
MEDIUM GRAY,TRIM1#
main71072-33112-E4i199508-199608
MEDIUM OAK,TRIM4#
main71072-33112-K3i199508-199608
TAUPE,TRIM9#
main71072-33121-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71072-33251
main71072-33121-E1i199308-199408
OAK,TRIM4#
sub71072-33251
main71072-33122-B2i199408-199608
MEDIUM GRAY,TRIM1#
sub71072-33122
sub71072-33252
main71072-33122-E3i199408-199608
MEDIUM OAK,TRIM4#
sub71072-33122
sub71072-33252
main71072-33130-04i199303-199308
DARK BLUE,TRIM8#
sub71072-33260¥44,100
main71072-33130-E0i199303-199402
MEDIUM OAK,TRIM4#
sub71072-33260¥44,100
main71072-33140-04i199303-199308
DARK BLUE,TRIM8#
sub71072-33290¥44,100
main71072-33140-04i199303-199308
W(POWER SEAT),DARK BLUE,TRIM8#
sub71072-33290¥44,100
main71072-33140-E0i199303-199402
W(POWER SEAT),MEDIUM OAK,TRIM4#
sub71072-33290¥44,100
main71072-33140-E0i199303-199408
MEDIUM OAK,TRIM4#
sub71072-33290¥44,100
main71072-33141-B1i199408-199608
MEDIUM GRAY,TRIM1#
sub71072-33141
sub71072-33291¥35,100
main71072-33141-E2i199408-199608
MEDIUM OAK,TRIM4#
sub71072-33141
sub71072-33291¥35,100
main71072-33141-K1i199408-199504
TAUPE,TRIM9#
sub71072-33141
sub71072-33291¥35,100
main71072-33150-03i199106-199208
W(POWER SEAT & LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33151
main71072-33150-04i199106-199208
W(POWER SEAT & LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71072-33151
main71072-33150-E0i199206-199208
W(POWER SEAT & LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33151
main71072-33151-B0i199208-199310
W(POWER SEAT & LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33153
main71072-33151-E0i199211-199310
W(POWER SEAT & LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33153
main71072-33151-J0i199208-199308
W(POWER SEAT & LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71072-33153
main71072-33152-B1i199310-199401
W(POWER SEAT & LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33153
main71072-33152-E1i199310-199401
W(POWER SEAT & LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33153
main71072-33153-B1i199401-199408
W(POWER SEAT & LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33154
main71072-33153-E3i199401-199408
W(POWER SEAT & LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33154
main71072-33154-B3i199408-199608
W(POWER SEAT & LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33154
main71072-33154-E4i199408-199608
W(POWER SEAT & LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33154
main71072-33180-02i199202-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71072-33180-02i199202-199408
TAUPE,TRIM9#
main71072-33180-03i199202-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71072-33180-03i199202-199408
MEDIUM GRAY,TRIM1#
main71072-33180-04i199202-199308
DARK BLUE,TRIM8#
main71072-33180-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
main71072-33180-E0i199206-199408
MEDIUM OAK,TRIM4#
main71072-33180-E0i199206-199402
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
main71072-33181-B1i199408-199608
MEDIUM GRAY,TRIM1#
sub71072-33181
sub71072-33400
main71072-33181-K1i199408-199608
TAUPE,TRIM9#
sub71072-33181
sub71072-33400
main71072-33250-02i199106-199308
TAUPE,TRIM9#
main71072-33250-03i199106-199308
MEDIUM GRAY,TRIM1#
main71072-33250-04i199106-199308
DARK BLUE,TRIM8#
main71072-33250-E0i199206-199308
MEDIUM OAK,TRIM4#
main71072-33251-K0i199308-199408
TAUPE,TRIM9#
main71072-33252-K2i199408-199608
TAUPE,TRIM9#
sub71072-33122
sub71072-33252
main71072-33260-02i199106-199402
TAUPE,TRIM9#
main71072-33260-03i199106-199402
MEDIUM GRAY,TRIM1#
main71072-33260-04i199106-199303
DARK BLUE,TRIM8#
main71072-33260-E0i199206-199303
MEDIUM OAK,TRIM4#
main71072-33290-02i199106-199402
W(POWER SEAT),TAUPE,TRIM9#
main71072-33290-02i199106-199408
TAUPE,TRIM9#
main71072-33290-03i199106-199408
MEDIUM GRAY,TRIM1#
main71072-33290-03i199106-199402
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71072-33290-04i199106-199303
W(POWER SEAT),DARK BLUE,TRIM8#
main71072-33290-04i199106-199303
DARK BLUE,TRIM8#
main71072-33290-E0i199206-199303
MEDIUM OAK,TRIM4#
main71072-33290-E0i199206-199303
W(POWER SEAT),MEDIUM OAK,TRIM4#
main71072-33291-K2i199504-199608
TAUPE,TRIM9#
sub71072-33141
sub71072-33291¥35,100
main71072-33340-B0i199308-199310
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33341
main71072-33340-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
sub71072-33341
main71072-33341-B1i199310-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33341
main71072-33341-B3i199408-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71072-33341
main71072-33341-E1i199310-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33341
main71072-33341-E3i199408-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71072-33341
main71072-33400-E1i199408-199608
MEDIUM OAK,TRIM4#
sub71072-33181
sub71072-33400
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-33070-04i199106-199308
DARK BLUE,TRIM1#
main71073-33070-B0i199106-199308
MEDIUM GRAY,TRIM1#
main71073-33070-E0i199206-199308
MEDIUM OAK,TRIM4#
main71073-33070-K0i199106-199308
TAUPE,TRIM9#
main71073-33071-E1i199402-199408
OAK,TRIM4#
sub71073-33091¥38,800
sub71073-33071
main71073-33071-E3i199408-199508
MEDIUM OAK,TRIM4#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-B3i199408-199508
MEDIUM GRAY,TRIM1#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-E1i199308-199402
OAK,TRIM4#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-K0i199308-199408
TAUPE,TRIM9#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-K2i199408-199508
TAUPE,TRIM9#
sub71073-33091¥38,800
sub71073-33071
main71073-33092-B4i199508-199608
MEDIUM GRAY,TRIM1#
main71073-33092-E4i199508-199608
MEDIUM OAK,TRIM4#
main71073-33092-K3i199508-199608
TAUPE,TRIM9#
main71073-33110-04i199303-199308
DARK BLUE,TRIM8#
sub71073-33200¥48,900
main71073-33110-E0i199303-199408
MEDIUM OAK,TRIM4#
sub71073-33200¥48,900
main71073-33111-B3i199408-199608
MEDIUM GRAY,TRIM1#
sub71073-33111¥63,500
sub71073-33201¥38,900
main71073-33111-E2i199408-199608
MEDIUM OAK,TRIM4#
sub71073-33111¥63,500
sub71073-33201¥38,900
main71073-33111-K1i199408-199504
TAUPE,TRIM9#
sub71073-33111¥63,500
sub71073-33201¥38,900
main71073-33120-03i199106-199208
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33121¥169,000
main71073-33120-04i199106-199208
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71073-33121¥169,000
main71073-33120-E0i199206-199208
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33121¥169,000
main71073-33121-B0i199208-199310
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33123¥169,000
main71073-33121-E0i199208-199310
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33123¥169,000
main71073-33121-J0i199208-199308
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71073-33123¥169,000
main71073-33122-B1i199310-199401
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33123¥169,000
main71073-33122-E1i199310-199401
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33123¥169,000
main71073-33123-B1i199401-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33123¥169,000
main71073-33123-B3i199408-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33123¥169,000
main71073-33123-E3i199401-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33123¥169,000
main71073-33123-E4i199408-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33123¥169,000
main71073-33140-02i199202-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71073-33140-02i199202-199408
TAUPE,TRIM9#
main71073-33140-03i199202-199408
MEDIUM GRAY,TRIM1#
main71073-33140-03i199202-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71073-33140-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
main71073-33140-04i199202-199308
DARK BLUE,TRIM8#
main71073-33140-E0i199206-199408
MEDIUM OAK,TRIM4#
main71073-33140-E0i199206-199402
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
main71073-33141-B1i199408-199608
MEDIUM GRAY,TRIM1#
sub71073-33141
sub71073-33380
main71073-33141-K1i199408-199608
TAUPE,TRIM9#
sub71073-33141
sub71073-33380
main71073-33190-02i199106-199308
TAUPE,TRIM9#
main71073-33190-03i199106-199308
MEDIUM GRAY,TRIM1#
main71073-33190-04i199106-199308
DARK BLUE,TRIM8#
main71073-33190-E0i199206-199308
MEDIUM OAK,TRIM4#
main71073-33200-02i199106-199408
TAUPE,TRIM9#
main71073-33200-03i199106-199408
MEDIUM GRAY,TRIM1#
main71073-33200-04i199106-199303
DARK BLUE,TRIM8#
main71073-33200-E0i199206-199303
MEDIUM OAK,TRIM4#
main71073-33201-K2i199504-199608
TAUPE,TRIM9#
sub71073-33111¥63,500
sub71073-33201¥38,900
main71073-33280-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71073-33290
main71073-33280-E0i199308-199408
OAK,TRIM4#
sub71073-33290
main71073-33280-K0i199308-199408
TAUPE,TRIM9#
sub71073-33290
main71073-33281-B2i199408-199608
MEDIUM GRAY,TRIM1#
sub71073-33281
sub71073-33291
main71073-33281-E2i199408-199608
MEDIUM OAK,TRIM4#
sub71073-33281
sub71073-33291
main71073-33291-K2i199408-199608
TAUPE,TRIM9#
sub71073-33281
sub71073-33291
main71073-33310-B0i199308-199310
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33311
main71073-33310-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
sub71073-33311
main71073-33311-B1i199310-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33311
main71073-33311-B3i199408-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71073-33311
main71073-33311-E1i199310-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33311
main71073-33311-E3i199408-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71073-33311
main71073-33380-E1i199408-199608
MEDIUM OAK,TRIM4#
sub71073-33141
sub71073-33380
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-33070-04i199106-199308
DARK BLUE,TRIM1#
main71073-33070-B0i199106-199308
MEDIUM GRAY,TRIM1#
main71073-33070-E0i199206-199308
MEDIUM OAK,TRIM4#
main71073-33070-K0i199106-199308
TAUPE,TRIM9#
main71073-33071-E1i199402-199408
OAK,TRIM4#
sub71073-33091¥38,800
sub71073-33071
main71073-33071-E3i199408-199508
MEDIUM OAK,TRIM4#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-B3i199408-199508
MEDIUM GRAY,TRIM1#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-E1i199308-199402
OAK,TRIM4#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-K0i199308-199408
TAUPE,TRIM9#
sub71073-33091¥38,800
sub71073-33071
main71073-33091-K2i199408-199508
TAUPE,TRIM9#
sub71073-33091¥38,800
sub71073-33071
main71073-33092-B4i199508-199608
MEDIUM GRAY,TRIM1#
main71073-33092-E4i199508-199608
MEDIUM OAK,TRIM4#
main71073-33092-K3i199508-199608
TAUPE,TRIM9#
main71073-33140-02i199202-199308
TAUPE,TRIM9#
main71073-33140-02i199202-199308
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71073-33140-03i199202-199308
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71073-33140-03i199202-199308
MEDIUM GRAY,TRIM1#
main71073-33140-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
main71073-33140-04i199202-199308
DARK BLUE,TRIM8#
main71073-33140-E0i199206-199308
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
main71073-33140-E0i199206-199308
MEDIUM OAK,TRIM4#
main71073-33190-02i199106-199308
TAUPE,TRIM9#
main71073-33190-03i199106-199308
MEDIUM GRAY,TRIM1#
main71073-33190-04i199106-199308
DARK BLUE,TRIM8#
main71073-33190-E0i199206-199308
MEDIUM OAK,TRIM4#
main71073-33280-B0i199308-199408
MEDIUM GRAY,TRIM1#
sub71073-33290
main71073-33280-E0i199308-199408
OAK,TRIM4#
sub71073-33290
main71073-33280-K0i199308-199408
TAUPE,TRIM9#
sub71073-33290
main71073-33281-B2i199408-199608
MEDIUM GRAY,TRIM1#
sub71073-33281
sub71073-33291
main71073-33281-E2i199408-199608
MEDIUM OAK,TRIM4#
sub71073-33281
sub71073-33291
main71073-33291-K2i199408-199608
TAUPE,TRIM9#
sub71073-33281
sub71073-33291
main71074-33040-04i199303-199308
DARK BLUE,TRIM8#
sub71074-33100¥63,500
main71074-33040-E0i199303-199402
MEDIUM OAK,TRIM4#
sub71074-33100¥63,500
main71074-33100-02i199106-199402
TAUPE,TRIM9#
main71074-33100-03i199106-199402
MEDIUM GRAY,TRIM1#
main71074-33100-04i199106-199303
DARK BLUE,TRIM8#
main71074-33100-E0i199206-199303
MEDIUM OAK,TRIM4#
main71074-33150-E0i199303-199402
W(POWER SEAT),MEDIUM OAK,TRIM4#
sub71074-33160¥63,500
main71074-33150-E0i199303-199408
MEDIUM OAK,TRIM4#
sub71074-33160¥63,500
main71074-33150-J0i199303-199308
W(POWER SEAT),DARK BLUE,TRIM8#
sub71074-33160¥63,500
main71074-33150-J0i199303-199308
DARK BLUE,TRIM8#
sub71074-33160¥63,500
main71074-33151-B2i199408-199608
MEDIUM GRAY,TRIM1#
sub71074-33151
sub71074-33161¥38,900
main71074-33151-E2i199408-199608
MEDIUM OAK,TRIM4#
sub71074-33151
sub71074-33161¥38,900
main71074-33151-K2i199408-199504
TAUPE,TRIM9#
sub71074-33151
sub71074-33161¥38,900
main71074-33160-B0i199106-199408
MEDIUM GRAY,TRIM1#
main71074-33160-B0i199106-199402
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71074-33160-E0i199206-199303
MEDIUM OAK,TRIM4#
main71074-33160-E0i199206-199303
W(POWER SEAT),MEDIUM OAK,TRIM4#
main71074-33160-J0i199106-199303
W(POWER SEAT),DARK BLUE,TRIM8#
main71074-33160-J0i199106-199303
DARK BLUE,TRIM8#
main71074-33160-K0i199106-199408
TAUPE,TRIM9#
main71074-33160-K0i199106-199402
W(POWER SEAT),TAUPE,TRIM9#
main71074-33161-K3i199504-199608
TAUPE,TRIM9#
sub71074-33151
sub71074-33161¥38,900
main71074-33170-B0i199109-199208
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33171
main71074-33170-E0i199206-199208
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33171
main71074-33170-J0i199109-199208
W(LEATHER SEAT & POWER SEAT)-*99,DARK BLUE,TRIM8#
sub71074-33171
main71074-33171-B0i199208-199310
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33173
main71074-33171-E0i199208-199310
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33173
main71074-33171-J0i199208-199308
W(LEATHER SEAT & POWER SEAT)-*99,DARK BLUE,TRIM8#
sub71074-33173
main71074-33172-B1i199310-199401
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33173
main71074-33172-E1i199310-199401
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33173
main71074-33173-B1i199401-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33173
main71074-33173-B3i199408-199608
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33173
main71074-33173-E3i199401-199408
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33173
main71074-33173-E4i199408-199608
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33173
main71074-33220-B0i199308-199408
MEDIUM GRAY,TRIM1#
main71074-33220-B0i199308-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71074-33220-E0i199308-199408
OAK,TRIM4#
main71074-33220-E0i199308-199402
SPORTS PACKAGE-*99,OAK,TRIM4#
main71074-33220-K0i199308-199408
TAUPE,TRIM9#
main71074-33220-K0i199308-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71074-33221-B2i199408-199608
MEDIUM GRAY,TRIM1#
sub71074-33221
sub71074-33330
main71074-33221-K2i199408-199608
TAUPE,TRIM9#
sub71074-33221
sub71074-33330
main71074-33240-B0i199308-199310
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33241
main71074-33240-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
sub71074-33241
main71074-33241-B1i199310-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33241
main71074-33241-B3i199408-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71074-33241
main71074-33241-E1i199310-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33241
main71074-33241-E3i199408-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71074-33241
main71074-33330-E1i199408-199608
MEDIUM OAK,TRIM4#
sub71074-33221
sub71074-33330
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-33041-B0i199408-199608
***,MEDIUM GRAY,TRIM1#
main71410-33041-E1i199408-199608
***,OAK,TRIM4#
main71410-33041-K0i199408-199608
***,TAUPE,TRIM9#
main71410-33132-B2i199408-199608
***,MD.GRAY,TRIM1#
main71410-33132-E2i199408-199608
***,OAK,TRIM4#
main71410-33132-K0i199408-199608
***,TAUPE,TRIM9#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-33061-B0i199408-199608
***,MEDIUM GRAY,TRIM1#
main71420-33061-E1i199408-199608
***,OAK,TRIM4#
main71420-33061-K0i199408-199608
***,TAUPE,TRIM9#
main71420-33152-B2i199408-199608
***,MD.GRAY,TRIM1#
main71420-33152-E2i199408-199608
***,OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-33111-B1i199408-199608
***,MD.GRAY,TRIM1#
main71430-33111-E1i199408-199608
***,OAK,TRIM4#
main71430-33142-B2i199408-199608
***,MD.GRAY,TRIM1#
main71430-33142-E2i199408-199608
***,OAK,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-33142-B2i199408-199608
***,MD.GRAY,TRIM1#
main71430-33142-E2i199408-199608
***,OAK,TRIM4#
main71440-33071-B1i199408-199608
***,MD.GRAY,TRIM1#
main71440-33071-E1i199408-199608
***,OAK,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-33010i¥30,700199106-199608
main71505-33010i¥30,700199508-199608
W(LEATHER SEAT & POWER SEAT)
main71505-33030i¥30,900199202-199402
SPORTS PACKAGE-*99
main71505-33030i¥30,900199202-199608
main71505-33040i¥29,600199308-199608
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-33010i¥30,700199106-199308
main71505-33030i¥30,900199202-199308
SPORTS PACKAGE-*99
main71505-33040i¥29,600199308-199608
main71506-33010i¥30,900199508-199608
W(LEATHER SEAT & POWER SEAT)
main71506-33010i¥30,900199106-199608
main71506-33020i¥31,000199308-199608
main71506-33020i¥31,000199308-199402
SPORTS PACKAGE-*99
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-32150i¥15,300199202-199402
SPORTS PACKAGE-*99
main71511-32150i¥15,300199202-199608
main71511-33030i¥16,300199106-199608
W(LEATHER SEAT)-*99
main71511-33040i¥16,300199106-199608
main71511-33080i¥17,300199408-199608
W(LEATHER SEAT)-*99
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-32150i¥15,300199202-199608
main71511-32150i¥15,300199202-199402
SPORTS PACKAGE-*99
main71511-33040i¥16,300199106-199608
main71512-33010i¥16,300199106-199405
sub71512-33050¥16,800
main71512-33010i¥16,300199106-199402
W(POWER SEAT)
sub71512-33050¥16,800
main71512-33020i¥16,300199106-199405
W(POWER SEAT & LEATHER SEAT)-*99
sub71512-33060¥17,300
main71512-33050i¥16,800199405-199608
main71512-33060i¥17,300199405-199608
W(POWER SEAT & LEATHER SEAT)-*99
71553BPAD, FRONT SEATBACK, B
main71553-33010i¥940199202-199304
SPORTS PACKAGE-*99
main71553-33020i¥820199106-199304
main71553-33030i¥930199304-199608
main71553-33030i¥930199304-199402
SPORTS PACKAGE-*99
main71553-33040i¥930199304-199608
71553CPAD, FRONT SEATBACK, C
main71553-33010i¥940199106-199304
main71553-33020i¥820199106-199304
main71553-33030i¥930199304-199608
main71553-33030i¥930199508-199608
W(POWER SEAT)
main71553-33040i¥930199304-199608
71554PAD, FRONT SEATBACK, C
main71554-33010i¥820199106-199304
main71554-33020i¥940199202-199304
SPORTS PACKAGE-*99
main71554-33030i¥930199304-199608
main71554-33040i¥930199304-199402
SPORTS PACKAGE-*99
main71554-33040i¥930199304-199608
71554APAD, FRONT SEATBACK, CENTER
main71554-33010i¥820199106-199304
main71554-33020i¥940199202-199304
SPORTS PACKAGE-*99
main71554-33030i¥930199304-199608
main71554-33040i¥930199304-199402
SPORTS PACKAGE-*99
main71554-33040i¥930199304-199608
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-32090i¥20,800199106-199608
main71610-32120i¥18,700199408-199608
W(LEATHER SEAT & POWER SEAT)-*99
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-32030i¥18,200199106-199608
main71620-33010i¥20,100199106-199608
main71620-33020i¥21,700199106-199608
W(POWER SEAT)
main71620-33020i¥21,700199106-199608
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-33010-02i199106-199308
TAUPE,TRIM9#
main71705-33010-03i199106-199308
MEDIUM GRAY,TRIM1#
main71705-33010-04i199106-199308
DARK BLUE,TRIM8#
main71705-33010-E0i199206-199308
MEDIUM OAK,TRIM4#
main71705-33020-03i199106-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71705-33020¥6,700
main71705-33020-04i199106-199308
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71705-33020¥6,700
main71705-33020-B0i199408-199608
W(LEATHER SEAT)-*99,MD.GRAY,TRIM1#
sub71705-33020¥6,700
main71705-33020-E0i199206-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71705-33020¥6,700
main71705-33030-02i199106-199408
TAUPE,TRIM9#
main71705-33030-03i199106-199408
MEDIUM GRAY,TRIM1#
main71705-33030-04i199106-199308
DARK BLUE,TRIM8#
main71705-33030-E0i199206-199408
MEDIUM OAK,TRIM4#
main71705-33031-B0i199408-199608
MEDIUM GRAY,TRIM1#
sub71705-33031¥10,900
sub71705-33110¥10,900
main71705-33031-K1i199408-199504
TAUPE,TRIM9#
sub71705-33031¥10,900
sub71705-33110¥10,900
main71705-33040-02i199202-199408
TAUPE,TRIM9#
main71705-33040-02i199202-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71705-33040-03i199202-199408
MEDIUM GRAY,TRIM1#
main71705-33040-03i199202-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71705-33040-04i199202-199308
DARK BLUE,TRIM8#
main71705-33040-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
main71705-33040-E0i199206-199402
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
main71705-33040-E0i199206-199408
MEDIUM OAK,TRIM4#
main71705-33110-E0i199408-199608
MEDIUM OAK,TRIM4#
sub71705-33031¥10,900
main71705-33110-K1i199504-199608
TAUPE,TRIM9#
sub71705-33031¥10,900
main71705-33150-B0i199408-199608
MD.GRAY,TRIM1#
main71705-33150-E0i199408-199608
OAK,TRIM4#
main71705-33150-K0i199408-199608
TAUPE,TRIM9#
71705DCLIP, FRONT SEATBACK BOARD
main71769-32011i¥260199106-199110
main71769-33010i¥190199110-199608
main71769-33010i¥190199508-199608
W(LEATHER SEAT)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-33010-02i199106-199308
TAUPE,TRIM9#
main71705-33010-03i199106-199308
MEDIUM GRAY,TRIM1#
main71705-33010-04i199106-199308
DARK BLUE,TRIM8#
main71705-33010-E0i199206-199308
MEDIUM OAK,TRIM4#
main71705-33020-03i199106-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71705-33020¥6,700
main71705-33020-04i199106-199308
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71705-33020¥6,700
main71705-33020-B0i199408-199608
W(LEATHER SEAT)-*99,MD.GRAY,TRIM1#
sub71705-33020¥6,700
main71705-33020-E0i199206-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71705-33020¥6,700
main71705-33030-02i199106-199408
TAUPE,TRIM9#
main71705-33030-03i199106-199408
MEDIUM GRAY,TRIM1#
main71705-33030-04i199106-199308
DARK BLUE,TRIM8#
main71705-33030-E0i199206-199408
MEDIUM OAK,TRIM4#
main71705-33031-B0i199408-199608
MEDIUM GRAY,TRIM1#
sub71705-33031¥10,900
sub71705-33110¥10,900
main71705-33031-K1i199408-199504
TAUPE,TRIM9#
sub71705-33031¥10,900
sub71705-33110¥10,900
main71705-33040-02i199202-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
main71705-33040-02i199202-199408
TAUPE,TRIM9#
main71705-33040-03i199202-199408
MEDIUM GRAY,TRIM1#
main71705-33040-03i199202-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
main71705-33040-04i199202-199308
DARK BLUE,TRIM8#
main71705-33040-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
main71705-33040-E0i199206-199408
MEDIUM OAK,TRIM4#
main71705-33040-E0i199206-199402
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
main71705-33110-E0i199408-199608
MEDIUM OAK,TRIM4#
sub71705-33031¥10,900
main71705-33110-K1i199504-199608
TAUPE,TRIM9#
sub71705-33031¥10,900
main71705-33150-B0i199408-199608
MD.GRAY,TRIM1#
main71705-33150-E0i199408-199608
OAK,TRIM4#
main71705-33150-K0i199408-199608
TAUPE,TRIM9#
71706BCLIP, FRONT SEATBACK BOARD
main71769-32011i¥260199106-199110
main71769-33010i¥190199110-199608
main71769-33010i¥190199508-199608
W(LEATHER SEAT)
71910AHEADREST ASSY, FRONT SEAT
main71910-32520-04i199202-199308
DARK BLUE,TRIM8#
sub71910-32520¥30,500
main71910-32520-04i199202-199308
SPORTS PACKAGE-*99,DARK BLUE,TRIM8#
sub71910-32520¥30,500
main71910-32520-12i199202-199408
TAUPE,TRIM9#
sub71910-32520¥30,500
main71910-32520-12i199202-199402
SPORTS PACKAGE-*99,TAUPE,TRIM9#
sub71910-32520¥30,500
main71910-32520-13i199202-199402
SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#
sub71910-32520¥30,500
main71910-32520-13i199202-199408
MEDIUM GRAY,TRIM1#
sub71910-32520¥30,500
main71910-32520-E0i199206-199408
MEDIUM OAK,TRIM4#
sub71910-32520¥30,500
main71910-32520-E0i199206-199402
SPORTS PACKAGE-*99,MEDIUM OAK,TRIM4#
sub71910-32520¥30,500
main71910-32523-B0i199408-199608
MEDIUM GRAY,TRIM1#
main71910-32523-E1i199408-199608
MEDIUM OAK,TRIM4#
main71910-32523-K0i199408-199608
TAUPE,TRIM9#
main71910-33010-02i199106-199308
TAUPE,TRIM9#
main71910-33010-03i199106-199308
MEDIUM GRAY,TRIM1#
main71910-33010-04i199106-199308
DARK BLUE,TRIM8#
main71910-33010-E0i199206-199308
MEDIUM OAK,TRIM4#
main71910-33011-B1i199308-199408
MEDIUM GRAY,TRIM1#
sub71910-33012¥29,600
main71910-33011-E2i199308-199408
OAK,TRIM4#
sub71910-33012¥29,600
main71910-33011-K2i199308-199408
TAUPE,TRIM9#
sub71910-33012¥29,600
main71910-33012-B1i199408-199501
MD. GRAY,TRIM1#
main71910-33012-E2i199408-199501
OAK,TRIM4#
main71910-33012-K2i199408-199501
TAUPE,TRIM9#
main71910-33013-B2i199501-199608
MEDIUM GRAY,TRIM1#
main71910-33013-E3i199501-199608
MEDIUM OAK,TRIM4#
main71910-33013-K3i199501-199608
TAUPE,TRIM9#
main71910-33040-02i199106-199307
TAUPE,TRIM9#
main71910-33040-03i199106-199307
MEDIUM GRAY,TRIM1#
main71910-33040-04i199106-199307
DARK BLUE,TRIM8#
main71910-33040-E0i199206-199307
MEDIUM OAK,TRIM4#
main71910-33041-B1i199308-199408
MEDIUM GRAY,TRIM1#
main71910-33041-E2i199308-199408
OAK,TRIM4#
main71910-33041-K2i199308-199408
TAUPE,TRIM9#
main71910-33043-B2i199408-199608
MEDIUM GRAY,TRIM1#
main71910-33043-E3i199408-199608
MEDIUM OAK,TRIM4#
main71910-33043-K3i199408-199608
TAUPE,TRIM9#
main71910-33050-02i199106-199408
TAUPE,TRIM9#
main71910-33050-03i199106-199408
MEDIUM GRAY,TRIM1#
main71910-33050-04i199106-199308
DARK BLUE,TRIM8#
main71910-33050-E0i199206-199408
MEDIUM OAK,TRIM4#
main71910-33052-B0i199408-199608
C & A,MEDIUM GRAY,MEDIUM GRAY,TRIM1#
sub71910-33052¥29,600
main71910-33052-E2i199408-199608
C & A,MEDIUM OAK,MEDIUM OAK,TRIM4#
sub71910-33052¥29,600
main71910-33052-K1i199408-199504
C & A,TAUPE,TAUPE,TRIM9#
sub71910-33052¥29,600
main71910-33052-K2i199504-199608
C & A,TAUPE,TAUPE,TRIM9#
sub71910-33052¥29,600
main71910-33060-03i199106-199408
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
sub71910-33061¥40,200
main71910-33060-04i199106-199308
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
sub71910-33061¥40,200
main71910-33060-E0i199206-199408
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
sub71910-33061¥40,200
main71910-33061-E0i199408-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
main71910-33061-S4i199408-199608
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71910-33230-B0i199408-199608
TOYOTABOU,MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71910-33230-E0i199408-199608
TOYOTABOU,MEDIUM OAK,MEDIUM OAK,TRIM4#
main71910-33230-K0i199408-199504
TOYOTABOU,TAUPE,TAUPE,TRIM9#
main71910-33230-K1i199504-199608
TOYOTABOU,TAUPE,TAUPE,TRIM9#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-B0i199210-199608
W(LOCK),MEDIUM GRAY,TRIM1#
sub71930-32010¥1,340
sub71930-10070¥1,240
sub71930-12070¥1,240
sub71930-32020¥1,240
main71930-10070-E1i199210-199608
W(LOCK),ROSEWOOD,TRIM4#
sub71930-32010¥1,340
sub71930-10070¥1,240
sub71930-12070¥1,240
sub71930-32020¥1,240
main71930-10070-J0i199210-199308
W(LOCK),DARK BLUE,TRIM8#
sub71930-32010¥1,340
sub71930-10070¥1,240
sub71930-12070¥1,240
sub71930-32020¥1,240
main71930-10070-K0i199210-199608
W(LOCK),TAUPE,TRIM9#
sub71930-32010¥1,340
sub71930-10070¥1,240
sub71930-12070¥1,240
sub71930-32020¥1,240
main71930-32010-B0i199106-199210
W(LOCK),MEDIUM GRAY,TRIM1#
sub71930-10070¥1,240
sub71930-32010¥1,340
main71930-32010-E0i199206-199210
W(LOCK),OAK,TRIM4#
sub71930-10070¥1,240
sub71930-32010¥1,340
main71930-32010-J0i199106-199210
W(LOCK),DARK BLUE,TRIM8#
sub71930-10070¥1,240
sub71930-32010¥1,340
main71930-32010-K0i199106-199210
W(LOCK),TAUPE,TRIM9#
sub71930-10070¥1,240
sub71930-32010¥1,340
main71931-10020-B0i199210-199608
W/O(LOCK),MEDIUM GRAY,TRIM1#
sub71931-32010¥1,010
sub71931-10020¥1,010
sub71931-12040¥920
main71931-10020-E1i199210-199608
W/O(LOCK),ROSEWOOD,TRIM4#
sub71931-32010¥1,010
sub71931-10020¥1,010
sub71931-12040¥920
main71931-10020-J0i199210-199308
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-32010¥1,010
sub71931-10020¥1,010
sub71931-12040¥920
main71931-10020-K0i199210-199608
W/O(LOCK),TAUPE,TRIM9#
sub71931-32010¥1,010
sub71931-10020¥1,010
sub71931-12040¥920
main71931-32010-B0i199106-199210
W/O(LOCK),MEDIUM GRAY,TRIM1#
sub71931-10020¥1,010
sub71931-32010¥1,010
main71931-32010-E0i199206-199210
W/O(LOCK),OAK,TRIM4#
sub71931-10020¥1,010
sub71931-32010¥1,010
main71931-32010-J0i199106-199210
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-10020¥1,010
sub71931-32010¥1,010
main71931-32010-K0i199106-199210
W/O(LOCK),TAUPE,TRIM9#
sub71931-10020¥1,010
sub71931-32010¥1,010
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33010i¥9,100199106-199608
72791LEVER, LUMBAR SUPPORT
main72791-22020-B0i199106-199608
MEDIUM GRAY,TRIM1#
sub72791-22020¥1,140
main72791-22020-E8i199206-199608
OAK,TRIM4#
sub72791-22020¥1,140
main72791-22020-J1i199106-199308
DARK BLUE,TRIM8#
sub72791-22020¥1,140
main72791-22020-K0i199106-199608
TAUPE,TRIM9#
sub72791-22020¥1,140
9008046007
main90080-46007
9016350006
main90163-50006¥120
9046818071
main90468-18071¥160
9052001274
main90520-01274¥160
9165640614
main91656-40614¥120

33 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
