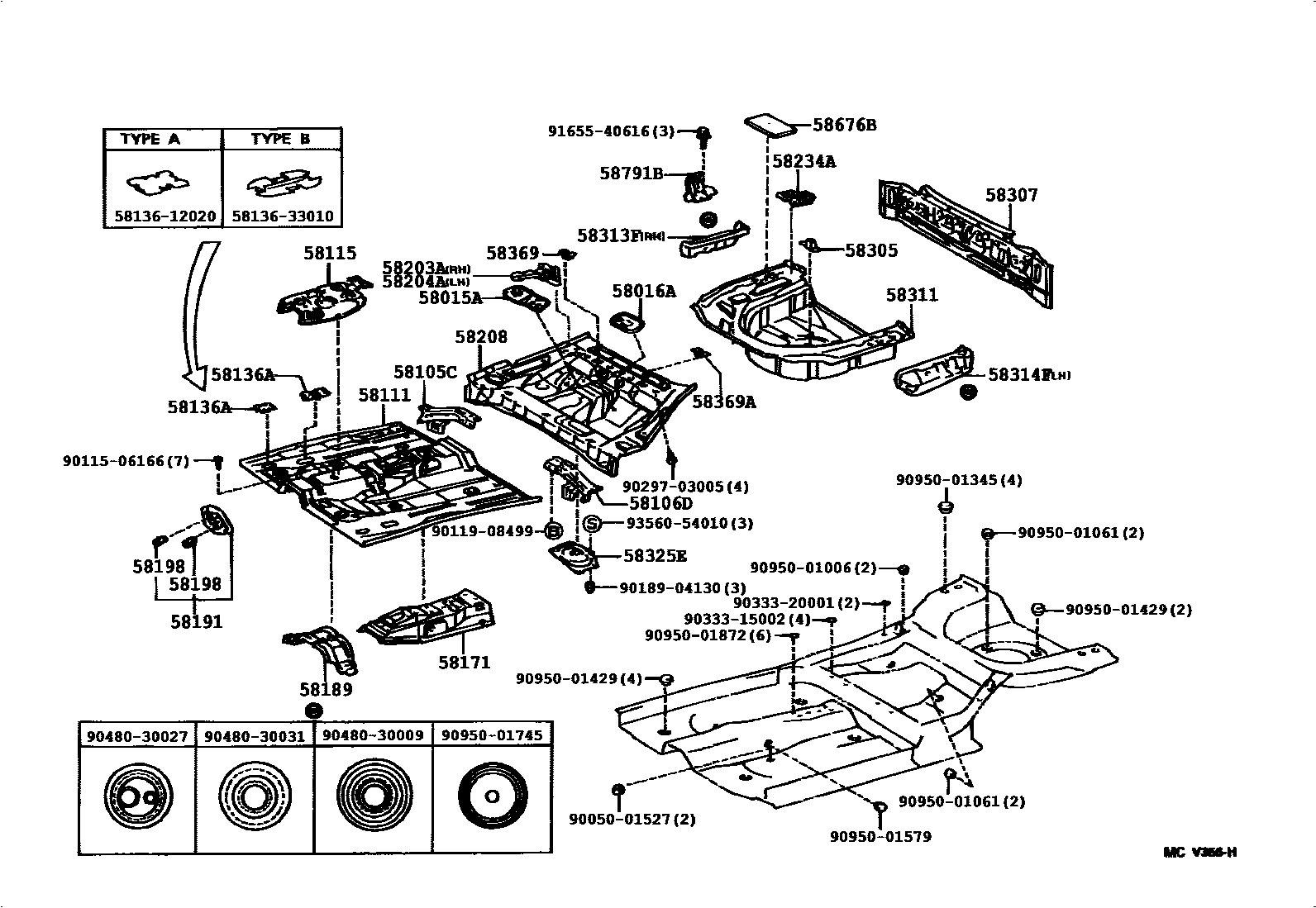

FLOOR PAN & LOWER BACK PANEL

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-33010iMCV10,SXV10,VCV10..JPP¥2,160199106-199608

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-33010iSXV10,VCV10..JPP¥1,830199106-199308

main58016-33020iMCV10,SXV10..JPP¥1,810199308-199608

58105CGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT RH

main58105-33010iMCV10,SXV10..JPP¥4,500199308-199608

58106DGUSSET SUB-ASSY, WHEELHOUSE INNER, FRONT LH

main58106-33010iMCV10,SXV10..JPP¥4,500199308-199608

58111PAN, FRONT FLOOR

main58111-33010iMCV10,SXV10,VCV10..JPP¥51,900199106-199608

sub58111-33030¥52,000

sub90333-30002¥70

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58013-33010iMCV10,VCV10..JPP..ATM..LE..CND¥8,900199202-199402

SPORTS PACK

sub58013-33020¥8,900

main58013-33010iSXV10..JPP;MCV10,VCV10..JPP..SE;VCV10..JPP..MTM..CND¥8,900199106-199408

sub58013-33020¥8,900

main58013-33020iMCV10,VCV10..JPP..ATM..(DX,LE,XLE)¥8,900199106-199608

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iMCV10,SXV10,VCV10..JPP¥220199106-199608

TYPE A

main58136-33010iMCV10,SXV10,VCV10..JPP¥230199106-199608

TYPE B

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-33010iMCV10,SXV10,VCV10..JPP¥8,900199106-199602

main58107-33040iMCV10,SXV10..JPP¥8,700199602-199608

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33010iMCV10,SXV10,VCV10..JPP¥6,500199106-199608

58191FOOTREST, FRONT FLOOR

main58192-33010iMCV10,SXV10,VCV10..JPP¥2,910199106-199608

58198CLIP, FOOTREST

main58198-33010iMCV10,SXV10,VCV10..JPP¥320199106-199608

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-33010iMCV10,SXV10,VCV10..JPP¥1,400199106-199608

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-33010iMCV10,SXV10,VCV10..JPP¥1,400199106-199608

58208PAN, CENTER FLOOR

main58211-33010iSXV10,VCV10..JPP¥36,800199106-199308

sub58211-33040¥36,600

sub90333-20001¥70

main58211-33040iMCV10,SXV10..JPP¥36,600199308-199608

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-33010iMCV10,SXV10,VCV10..JPP¥1,780199106-199408

main58234-41010iMCV10,SXV10..JPP¥1,750199408-199608

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iMCV10,SXV10,VCV10..JPP¥410199106-199608

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-33010iSXV10,VCV10..JPP¥17,200199106-199202

sub58307-33011¥17,200

main58307-33011iMCV10,SXV10,VCV10..JPP¥17,200199202-199404

sub58307-33012¥17,200

sub58387-33011¥3,110

sub90467-07161¥110

main58307-33012iMCV10,SXV10..JPP¥17,200199404-199608

58311PAN, REAR FLOOR

main58311-33010iMCV10,SXV10,VCV10..JPP¥37,200199106-199608

sub58311-06010¥36,700

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-33010iMCV10,SXV10,VCV10..JPP¥4,960199106-199608

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-33010iMCV10,SXV10,VCV10..JPP¥4,220199106-199608

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-33010iMCV10,SXV10,VCV10..JPP¥1,400199106-199608

58369BRACKET, INSULATOR HEAT

main58369-32010iMCV10,SXV10,VCV10..JPP¥320199106-199608

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010iMCV10,SXV10,VCV10..JPP¥320199106-199608

58676BPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-33010iMCV10,SXV10,VCV10..JPP¥440199211-199608

58791BCARRIER, JACK

main58791-32060iMCV10,SXV10,VCV10..JPP¥1,130199106-199608

5813612020COVER, FRONT FLOOR HOLE

main58136-12020¥220

5813633010COVER, FRONT FLOOR HOLE

main58136-33010¥230

9005001527

main90050-01527

9011506166

main90115-06166¥90

9011908499

main90119-08499¥160

9018904130

main90189-04130¥130

9029703005

main90297-03005¥110

9033315002

main90333-15002¥90

9033320001

main90333-20001¥70

9048030009

main90480-30009¥540

9048030027

main90480-30027¥240

9048030031

main90480-30031¥210

9095001006

main90950-01006¥260

9095001061

main90950-01061¥240

9095001345

main90950-01345¥400

9095001429

main90950-01429¥110

9095001579

main90950-01579¥200

9095001745

main90950-01745¥130

9095001872

main90950-01872¥220

9165540616

main91655-40616¥120

9356054010

main93560-54010¥70

46 parts on this diagram · 1 diagram in section
