HOOD & FRONT FENDER

5303

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iMCV10,SXV10,VCV10..JPP199106-199608

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-33010iMCV10,SXV10,VCV10..JPP199106-199608

RH

main53184-33010iMCV10,SXV10,VCV10..JPP199106-199608

LH

53301HOOD SUB-ASSY

main53301-33900iMCV10,SXV10,VCV10..JPP199106-199608

53301BCUSHION, HOOD BUMPER

main90541-15004iMCV10,SXV10,VCV10..JPP199106-199608

53341BINSULATOR, HOOD

main53341-33010iSXV10,VCV10..JPP..XLE199106-199608

main53341-33020iSXV10..JPP..USA199106-199308

CALIFORNIA SPEC

main53341-33020iSXV10..JPP199308-199608

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iSXV10,VCV10..JPP..XLE199106-199308

CALIFORNIA SPEC

main90467-09006iMCV10,SXV10..JPP199308-199608

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33010iMCV10,SXV10,VCV10..JPP199106-199608

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMCV10,SXV10,VCV10..JPP199106-199608

53383SEAL, HOOD TO COWL TOP

main53383-33010iMCV10,SXV10,VCV10..JPP199106-199608

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-06138iMCV10,SXV10,VCV10..JPP199106-199608

CENTER

main90467-09151iMCV10,SXV10,VCV10..JPP199106-199608

RH

main90467-09152iMCV10,SXV10,VCV10..JPP199106-199608

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-33010iMCV10,SXV10,VCV10..JPP199106-199408

sub53801-33011

main53801-33011iMCV10,SXV10..JPP199408-199608

53802FENDER SUB-ASSY, FRONT LH

main53802-33010iMCV10,SXV10,VCV10..JPP199106-199408

sub53802-33011

main53802-33011iMCV10,SXV10..JPP199408-199608

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-33010iMCV10,SXV10,VCV10..JPP199106-199608

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33010iMCV10,SXV10,VCV10..JPP199106-199608

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-33010iSXV10,VCV10..JPP199106-199308

main53835-33040iMCV10,SXV10..JPP199308-199608

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-33010iMCV10,SXV10,VCV10..JPP199106-199608

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33010iMCV10,SXV10,VCV10..JPP199106-199608

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33010iMCV10,SXV10,VCV10..JPP199106-199608

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33010iMCV10,SXV10,VCV10..JPP199106-199608

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33010iMCV10,SXV10,VCV10..JPP199106-199608

53875ALINER, FRONT FENDER, RH

main53875-33010iSXV10,VCV10..JPP199106-199202

sub53875-33040

main53875-33040iMCV10,SXV10,VCV10..JPP199202-199608

53876ALINER, FRONT FENDER, LH

main53876-33010iSXV10,VCV10..JPP199106-199202

sub53876-33040

main53876-33040iMCV10,SXV10,VCV10..JPP199202-199608

53878CSPACER, FRONT FENDER

main53878-20040iMCV10,SXV10,VCV10..JPP199106-199608

53879ARETAINER, FRONT FENDER LINER

main53879-14010iMCV10,SXV10,VCV10..JPP199106-199608

5388216030PACKING, FRONT FENDER MAIN

main53882-16030

6624320010PLATE, REAR FENDER SET

main66243-20010

9011906288

main90119-06288

9011906311

main90119-06311

9011906353

main90119-06353

9011906388

main90119-06388

9011906616

main90119-06616

9015950269

main90159-50269

9015960403

main90159-60403

9016460024

main90164-60024

9016460025

main90164-60025

9018906006

main90189-06006

9018906048

main90189-06048

9018906104

main90189-06104

9046704009

main90467-04009

9056010067

main90560-10067

9095001604

main90950-01604

9095001685

main90950-01685

9095001749

main90950-01749

9095006052

main90950-06052

9166540616

main91665-40616

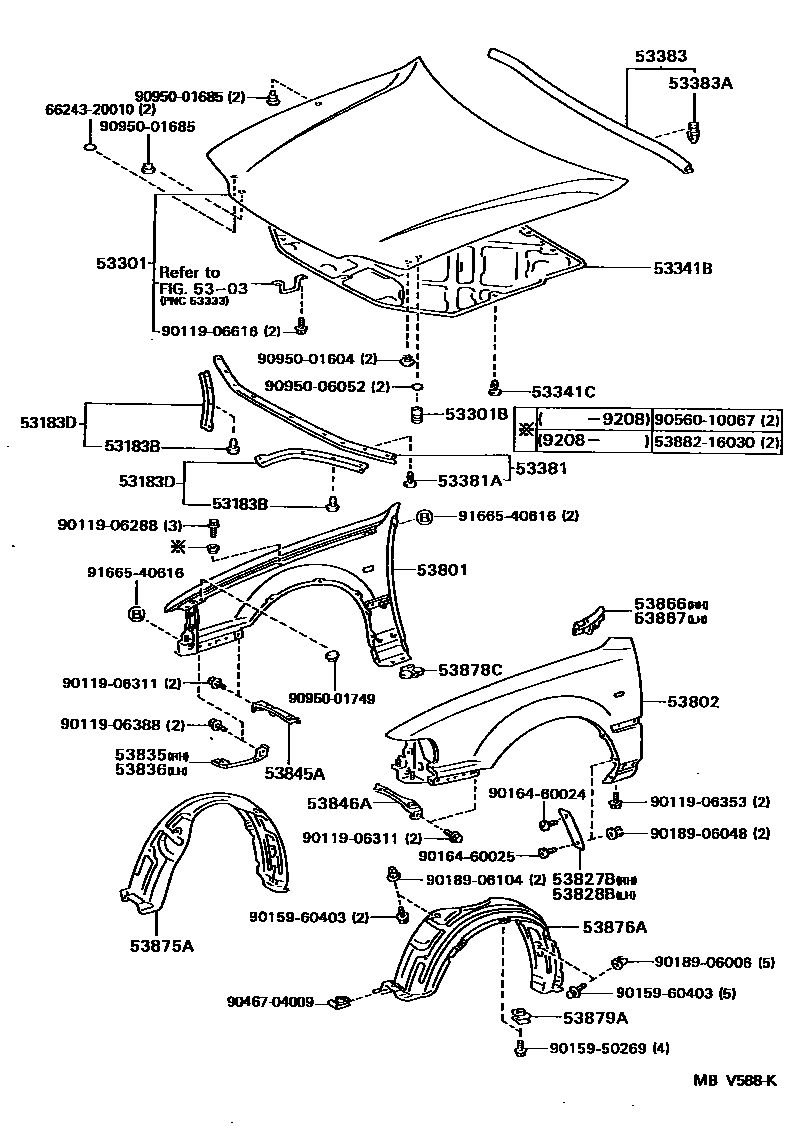

46 parts on this diagram · 1 diagram in section
