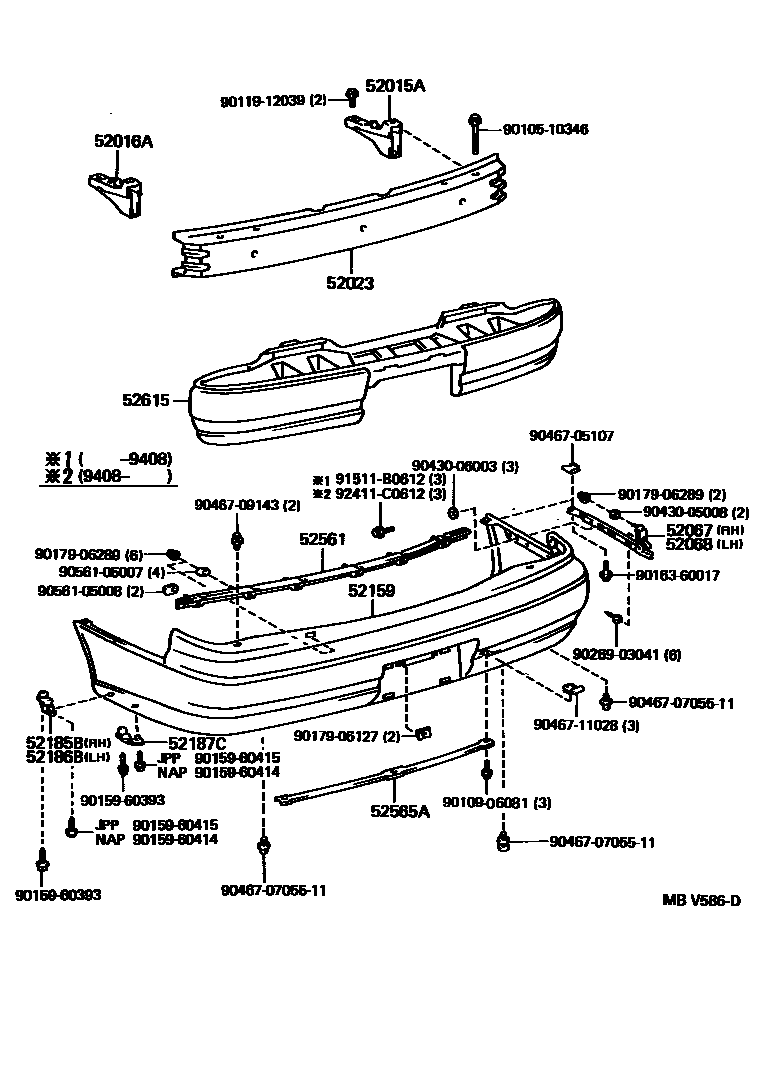

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-33010iMCV10,SXV10,VCV10..JPP199106-199608

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-33010iMCV10,SXV10,VCV10..JPP199106-199608

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-33010iMCV10,SXV10,VCV10..JPP199106-199608

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-33020iMCV10,SXV10,VCV10..JPP199106-199608

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-33020iMCV10,SXV10,VCV10..JPP199106-199608

52159COVER, REAR BUMPER

main52159-33901iMCV10,SXV10,VCV10..JPP199106-199608

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-33010iMCV10,SXV10,VCV10..JPP199106-199608

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-33010iMCV10,SXV10,VCV10..JPP199106-199608

52187CBRACKET, REAR BUMPER SIDE, NO.2

main52187-33010iMCV10,SXV10,VCV10..JPP199106-199608

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-33010iMCV10,SXV10,VCV10..JPP199106-199608

52565ARETAINER, REAR BUMPER, LOWER

main52565-33010iMCV10,SXV10,VCV10..JPP199106-199608

52615ABSORBER, REAR BUMPER ENERGY

main52615-33020iSXV10,VCV10..JPP199106-199208

sub52615-33040

main52615-33040iMCV10,SXV10,VCV10..JPP199208-199608

9010510346

main90105-10346

9010906081

main90109-06081

9011912039

main90119-12039

9015960393

main90159-60393

9015960414

main90159-60414

9015960415

main90159-60415

9016360017

main90163-60017

9017906127

main90179-06127

9017906289

main90179-06289

9026903041

main90269-03041

9043005008

main90430-05008

9043006003

main90430-06003

9046705107

main90467-05107

904670705511

main90467-0705511

9046709143

main90467-09143

9046711028

main90467-11028

9056105007

main90561-05007

9056105008

main90561-05008

91511B0612

main91511-B0612

92411C0612

main92411-C0612

32 parts on this diagram · 1 diagram in section
