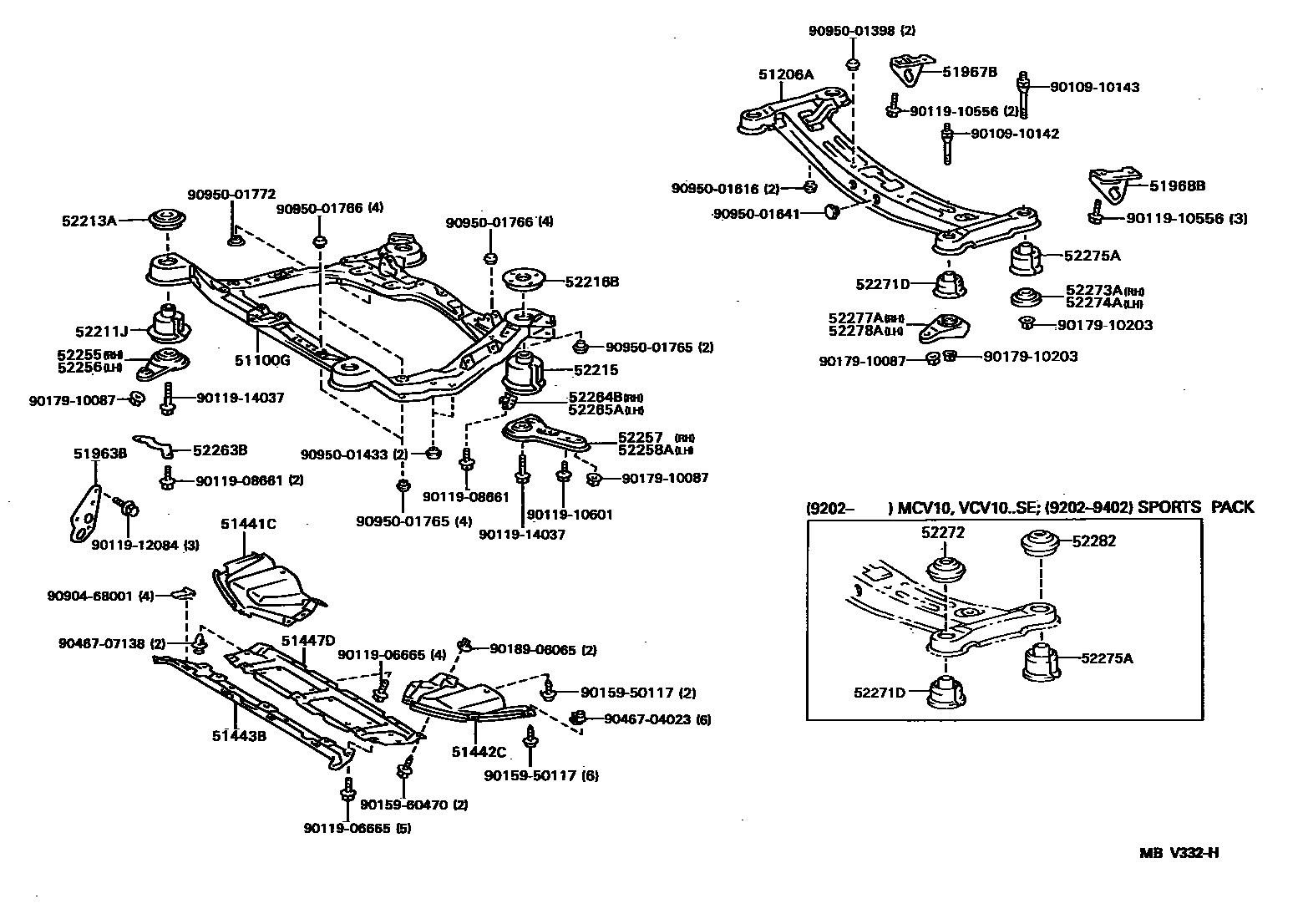

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-33010iMCV10,SXV10,VCV10..JPP199106-199608

sub51100-33030

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33010iMCV10,SXV10,VCV10..JPP199106-199408

sub51206-33011

main51206-33011iMCV10,SXV10..JPP199408-199608

sub51206-33012

sub90950-01882

51441CCOVER, ENGINE UNDER, RH

main51441-33010iMCV10,SXV10,VCV10..JPP199106-199608

51442CCOVER, ENGINE UNDER, LH

main51442-33010iMCV10,SXV10,VCV10..JPP199106-199608

51443BCOVER, ENGINE UNDER, NO.3

main51443-33010iMCV10,SXV10,VCV10..JPP199106-199608

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-33010iMCV10,SXV10,VCV10..JPP199106-199608

51963BHOOK, TRANSPORT, FRONT RH

main51963-33010iMCV10,SXV10,VCV10..JPP199106-199608

51967BHOOK, TRANSPORT, REAR RH

main51967-33010iMCV10,SXV10,VCV10..JPP199106-199608

main51967-33020iMCV10..JPP199408-199608

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iMCV10,SXV10,VCV10..JPP199106-199608

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33010iMCV10,SXV10,VCV10..JPP..ATM..(DX,LE,XLE)199106-199608

main52211-33030iMCV10,VCV10..JPP..ATM..LE..CND199202-199402

SPORTS PACK

main52211-33030iMCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)199106-199608

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33010iMCV10,SXV10,VCV10..JPP..ATM..(DX,LE,XLE)199106-199608

main52213-33030iMCV10,VCV10..JPP..ATM..LE..CND199202-199402

SPORTS PACK

main52213-33030iMCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)199106-199608

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33010iMCV10,SXV10,VCV10..JPP..ATM..(DX,LE,XLE)199106-199608

main52215-33030iMCV10,VCV10..JPP..ATM..LE..CND199202-199402

SPORTS PACK

main52215-33030iMCV10,VCV10..JPP..SE;SXV10,VCV10..JPP..MTM..(DX,LE)199106-199608

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020iMCV10,SXV10..JPP199106-199608

main52216-33020iMCV10,VCV10..JPP..ATM..LE..CND199202-199402

SPORTS PACK

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33010iMCV10,SXV10,VCV10..JPP199106-199608

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33010iMCV10,SXV10,VCV10..JPP199106-199608

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV10,SXV10..JPP199605-199608

main52257-33010iMCV10,SXV10,VCV10..JPP199106-199605

sub51023-33010

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV10,SXV10..JPP199605-199608

main52258-33010iMCV10,SXV10,VCV10..JPP199106-199605

sub51024-33010

52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1

main52263-33010iSXV10,VCV10..JPP199106-199307

52264BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.2

main52264-33010iSXV10,VCV10..JPP199106-199307

52265ARETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.3

main52265-33010iSXV10,VCV10..JPP199106-199307

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32020iMCV10,SXV10,VCV10..JPP..(DX,LE,XLE)199106-199311

sub52271-32050

main52271-32050iMCV10,SXV10..JPP..(DX,LE,XLE)199311-199608

main52271-33010iMCV10,VCV10..JPP..LE..CND199202-199402

SPORTS PACK

main52271-33010iMCV10,VCV10..JPP..SE199202-199608

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010iMCV10,VCV10..JPP..LE..CND199202-199402

SPORTS PACK

main52272-33010iMCV10,VCV10..JPP..SE199202-199608

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-32010iMCV10,SXV10,VCV10..JPP199106-199608

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-32010iMCV10,SXV10,VCV10..JPP199106-199608

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-32030iMCV10,SXV10,VCV10..JPP..(DX,LE,XLE)199106-199311

sub52275-32050

main52275-32050iMCV10,SXV10..JPP..(DX,LE,XLE)199311-199608

main52275-33010iMCV10,VCV10..JPP..LE..CND199202-199402

SPORTS PACK

main52275-33010iMCV10,VCV10..JPP..SE199202-199608

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV10,SXV10,VCV10..JPP199106-199608

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV10,SXV10,VCV10..JPP199106-199608

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33010iMCV10,VCV10..JPP..LE..CND199202-199402

SPORTS PACK

main52282-33010iMCV10,VCV10..JPP..SE199202-199608

9010910142

main90109-10142

9010910143

main90109-10143

9011906665

main90119-06665

9011908661

main90119-08661

9011910556

main90119-10556

9011910601

main90119-10601

9011912084

main90119-12084

9011914037

main90119-14037

9015950117

main90159-50117

9015960470

main90159-60470

9017910087

main90179-10087

9017910203

main90179-10203

9018906065

main90189-06065

9046704023

main90467-04023

9046707138

main90467-07138

9090468001

main90904-68001

9095001398

main90950-01398

9095001433

main90950-01433

9095001616

main90950-01616

9095001641

main90950-01641

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

51 parts on this diagram · 1 diagram in section
