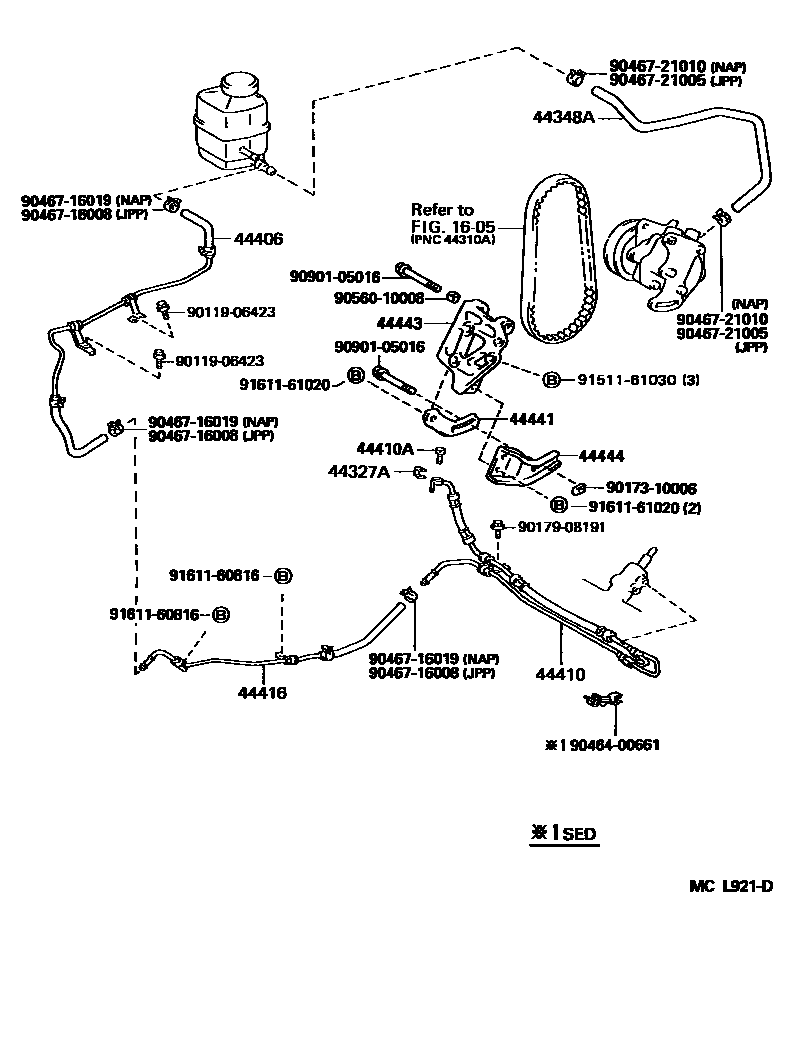

POWER STEERING TUBE

0001 1 0002 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV10,SXV10..JPP¥260199106-199608

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33010iVCV10..JPP¥5,800199106-199308

main44348-33051iSXV10..JPP¥5,200199106-199203

main44348-33070iSXV10..JPP¥4,510199203-199608

main44348-33090iMCV10..JPP¥5,500199308-199408

main44348-33110iMCV10..JPP¥5,200199408-199608

44406TUBE SUB-ASSY, RETURN

main44406-33010iVCV10..JPP¥7,800199106-199202

sub44406-33011¥7,800

main44406-33011iVCV10..JPP¥7,800199202-199308

sub44406-33012¥7,800

main44406-33012iMCV10..JPP¥7,800199308-199408

main44406-33030iMCV10,SXV10..JPP¥7,800199106-199608

44410TUBE ASSY, PRESSURE FEED

main44410-33010iMCV10,VCV10..JPP¥12,900199106-199608

sub44410-33140¥13,000

main44410-33041iSXV10..JPP¥24,200199106-199203

main44410-33090iSXV10..JPP¥28,200199203-199608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iMCV10,SXV10..JPP¥610199106-199501

main96341-41603iMCV10,SXV10..JPP¥310199501-199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33010iMCV10,SXV10,VCV10..JPP¥4,270199106-199608

44441BRACKET, PUMP, FRONT

main44441-07010iMCV10..JPP¥3,510199408-199608

sub44441-07011¥3,520

main44441-32010iSXV10..JPP¥1,130199106-199203

44443BRACKET, PUMP

main44443-20050iSXV10..JPP¥5,300199106-199203

main44443-33010iVCV10..JPP¥3,760199106-199308

main44443-33020iSXV10..JPP¥4,440199203-199608

main44443-33030iMCV10..JPP¥3,970199308-199408

main44443-33040iMCV10..JPP¥3,690199408-199608

sub44443-33041¥3,700

44444STAY, PUMP, REAR

main44444-20030iSXV10..JPP¥1,300199106-199203

9011906423

main90119-06423¥70

9017310006

main90173-10006¥160

9017908191

main90179-08191¥90

9046400661

main90464-00661¥230

9046716008

main90467-16008¥240

9046716019

main90467-16019¥300

9046721005

main90467-21005¥330

9046721010

main90467-21010¥380

9056010008

main90560-10008¥590

9090105016

main90901-05016¥390

9151161030

main91511-61030¥240

9161160816

main91611-60816¥230

9161161020

main91611-61020¥240

23 parts on this diagram · 3 diagrams in section
