IGNITION COIL & SPARK PLUG / GLOW PLUG

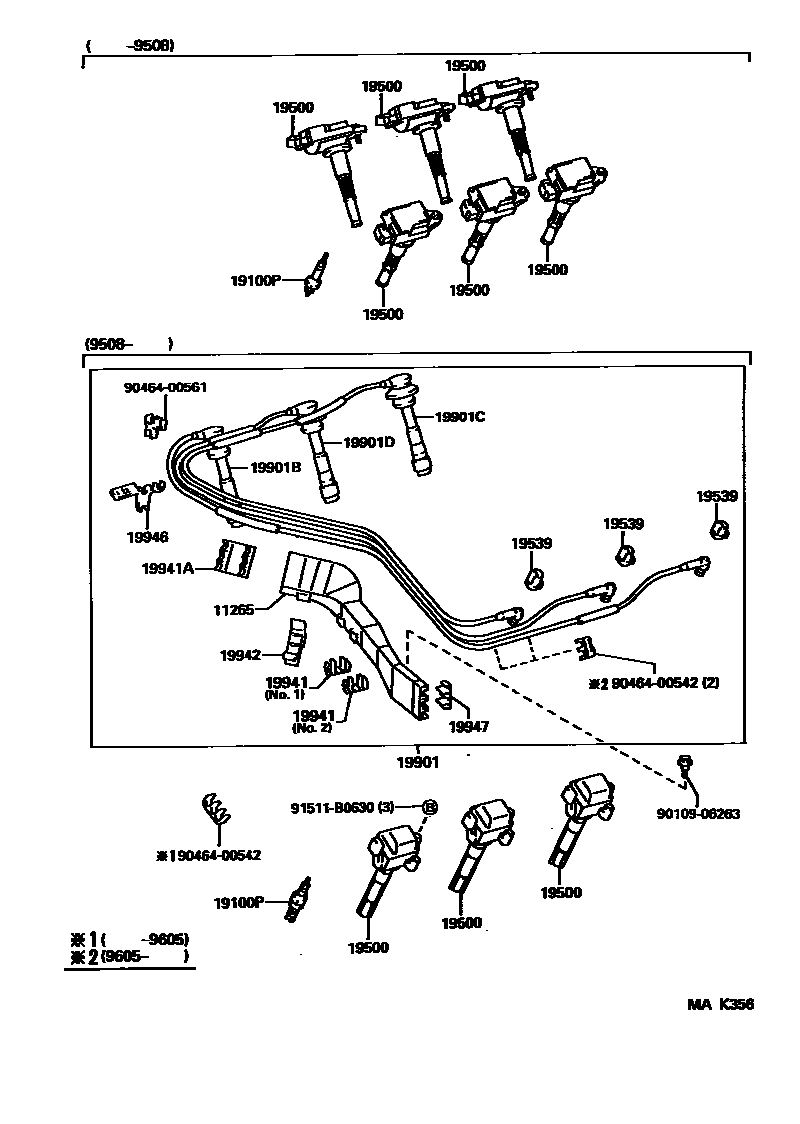

Parts diagram
11265COVER, COIL & RESISTIVE CORD, UPR
main11265-20010i199508-199605
sub11265-20020
main11265-20020i199605-199608
19100PPLUG, SPARK
main90919-01127i199106-199308
PQ20R
main90919-01178i199308-199408
PK20R11,NIPPONDENSO
sub90919-01210
main90919-01178i199106-199608
PK20R11
sub90919-01210
main90919-01194i199508-199608
PK20TR11
19500COIL ASSY, IGNITION
main90919-02197i199508-199608
main90919-02197i199308-199508
CALIFORNIA SPEC
main90919-02207i199106-199308
main90919-02211i199408-199508
NIPPONDENSO
sub90919-02214
main90919-02211i199308-199408
sub90919-02214
main90919-02214i199408-199508
AISAN
main90919-02215i199508-199608
19539HOLDER, RESISTIVE CODE, NO.4
main19539-11040i199508-199608
main19539-50010i199106-199308
NO.5
main19539-62010i199106-199308
NO.3,NO.4
main19539-62020i199106-199412
NO.1
main19539-62020i199308-199412
main19539-70010i199106-199308
NO.2
main19539-74010i199508-199608
main19539-74010i199308-199508
CALIFORNIA SPEC
main19539-74040i199412-199508
19901CORD SET, COIL & SPARK, W/RESISTIVE
main19037-20010i199508-199605
sub19037-20011
main19037-20011i199605-199608
main90919-21519i199106-199308
sub90919-21607
main90919-21582i199308-199508
CALIFORNIA SPEC
sub90919-29185
main90919-21582i199508-199608
sub90919-29185
main90919-22319i199106-199308
main90919-22369i199308-199407
SUMITOMO
sub90919-22370
main90919-22370i199308-199408
YAZAKI
main90919-22370i199408-199508
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-15165i199106-199308
SUMITOMO
main90919-15169i199106-199308
YAZAKI
main90919-15173i199106-199308
sub90919-15518
main90919-15308i199508-199608
main90919-15400i199508-199608
sub90919-15578
main90919-15400i199308-199408
CALIFORNIA SPEC,SUMITOMO
sub90919-15578
main90919-15400i199408-199508
CALIFORNIA SPEC
sub90919-15578
main90919-15403i199308-199407
CALIFORNIA SPEC,YAZAKI
sub90919-15400
main90919-15406i199308-199407
SUMITOMO
sub90919-15409
main90919-15409i199408-199508
main90919-15409i199308-199408
YAZAKI
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-15166i199106-199308
SUMITOMO
main90919-15170i199106-199308
YAZAKI
main90919-15176i199106-199308
sub90919-15521
main90919-15309i199508-199608
main90919-15401i199508-199608
sub90919-15579
main90919-15401i199308-199408
CALIFORNIA SPEC,SUMITOMO
sub90919-15579
main90919-15401i199408-199508
CALIFORNIA SPEC
sub90919-15579
main90919-15404i199308-199407
CALIFORNIA SPEC,YAZAKI
sub90919-15401
main90919-15408i199308-199407
SUMITOMO
sub90919-15411
main90919-15411i199408-199508
main90919-15411i199308-199408
YAZAKI
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-15167i199106-199308
SUMITOMO
main90919-15171i199106-199308
YAZAKI
main90919-15174i199106-199308
sub90919-15519
main90919-15310i199508-199608
main90919-15402i199308-199408
CALIFORNIA SPEC,SUMITOMO
sub90919-15580
main90919-15402i199408-199508
CALIFORNIA SPEC
sub90919-15580
main90919-15402i199508-199608
sub90919-15580
main90919-15405i199308-199407
CALIFORNIA SPEC,YAZAKI
sub90919-15402
main90919-15407i199308-199407
SUMITOMO
sub90919-15410
main90919-15410i199408-199508
main90919-15410i199308-199408
YAZAKI
19941CLAMP, RESISTIVE CORD, NO.1
main19941-20010i199508-199605
main19941-20010i199605-199608
NO.1
main19941-20020i199605-199608
NO.2
19941ACLAMP(FOR RESISTIVE CORD)
main19941-65040i199508-199608
19942CLAMP, RESISTIVE CORD, NO.2
main19942-20010i199508-199608
19946CLAMP, RESISTIVE CORD, NO.3
main19946-20010i199508-199608
19947CLAMP, RESISTIVE CORD, NO.4
main19947-20010i199508-199608
9010906263
main90109-06263
9046400542
main90464-00542
9046400561
main90464-00561
91511B0630
main91511-B0630

17 parts on this diagram · 5 diagrams in section
