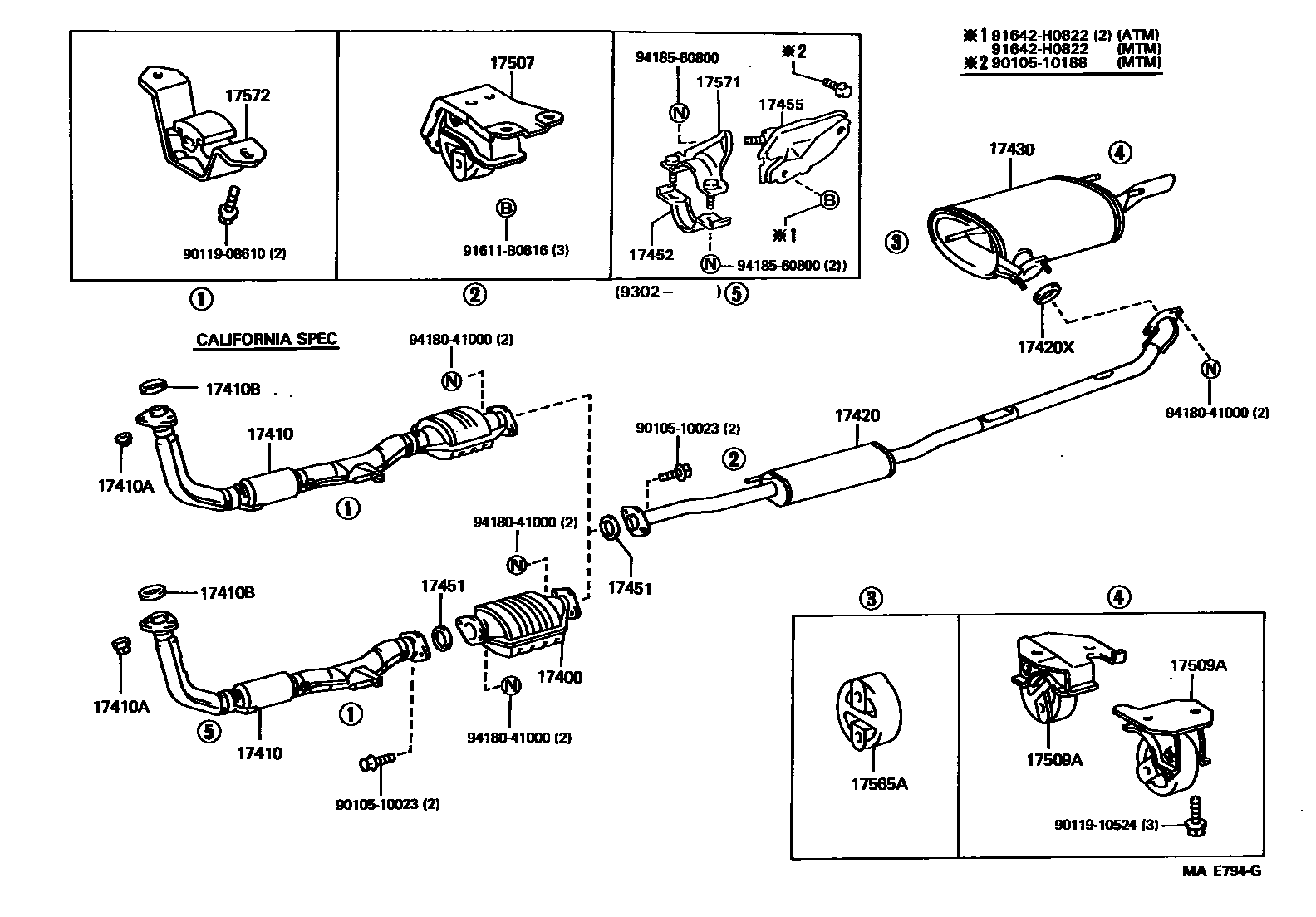

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
sub17410-62061
sub17410-7A170
sub17452-74080
sub17455-74080
sub17571-74370
sub90105-10180
sub90105-10188
sub91642-H0822
sub94180-40800
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
CALIFORNIA SPEC
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
FRONT
CALIFORNIA SPEC
REAR
17452CLAMP, EXHAUST PIPE
17455BRACKET, EXHAUST PIPE
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
RH
LH
RH
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
9010510023
main90105-10023
9010510188
main90105-10188
9011908610
main90119-08610
9011910524
main90119-10524
91611B0816
main91611-B0816
91642H0822
main91642-H0822
9418041000
main94180-41000
9418560800
main94185-60800
23 parts on this diagram · 5 diagrams in section
