16261HOSE, WATER BY-PASS

main16261-62020i199106-199308

main16261-74010i199106-199608

16261GHOSE, WATER BY-PASS, NO.1

main16261-20010i199308-199608

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-28008i199308-199608

sub90467-28007

16264HOSE, WATER BY-PASS, NO.2

main16264-20010i199308-199608

main16264-62030i199106-199308

main16264-74101i199106-199608

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-20005i199106-199608

sub96134-41900

main96135-41300i199106-199608

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-20010i199308-199608

main16267-62020i199106-199308

main16267-74081i199106-199608

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-20005i199106-199608

sub96134-41900

main96135-41300i199106-199608

sub96135-51300

16321INLET, WATER

main16321-20010i199308-199408

main16321-20020i199408-199608

main16321-62010i199106-199308

main16321-74030i199106-199608

sub16321-74050

16322PIPE, WATER INLET

main16322-20010i199308-199608

main16322-62020i199106-199308

16322ARING, O(FOR WATER INLET)

main96711-35031i199106-199308

sub96761-35031

main96761-35031i199308-199608

16323HOUSING, WATER INLET

main16323-20010i199308-199608

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i199106-199608

main16325-63010i199106-199301

sub16325-63011

main16325-63011i199301-199608

16331OUTLET, WATER

main16331-20020i199308-199608

sub16331-20040

main16331-62030i199106-199308

sub16331-62031

main16331-74170i199106-199608

16331ATHERMOSTAT

main90916-03060i199106-199603

*WAX 82-95

sub90916-03090

main90916-03075i199106-199308

*WAX 82-95

main90916-03084i199308-199608

*WAX 82-95

sub90916-03129

main90916-03090i199603-199608

*WAX 82-95

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-62090i199106-199608

16384BRACKET, FAN BELT ADJUSTING BAR

main16384-20010i199308-199608

main16384-62040i199106-199308

main16384-62050i199106-199208

W(AIR CONDITIONER)

main88444-33012i199208-199308

W(AIR CONDITIONER)

16470TANK ASSY, RADIATOR RESERVE

main16470-0A010i199408-199608

SALGA

main16470-20020i199408-199608

*ND

main16470-20020i199308-199408

main16470-62040i199106-199308

main16470-74180i199106-199308

sub16470-74181

sub90119-06195

main16470-74250i199308-199608

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-03010i199408-199608

SALGA

main90445-12078i199106-199408

L=600

main90445-12078i199408-199608

L=600,*ND

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i199106-199608

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main16472-03030i199408-199608

SALGA

main16472-0A020i199408-199608

SALGA

main16478-74180i199106-199209

main16479-62040i199106-199308

main90099-33534i199408-199608

L=1000,*ND

main90099-33534i199308-199408

L=1000

main90445-12078i199408-199608

L=600,*ND

main90445-12078i199209-199408

L=600

16470KHOSE, NO.4(FOR RADIATOR RESERVE TANK)

main16478-62040i199106-199308

main85338-70070i199308-199608

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16472-03020i199408-199608

SALGA

main16472-0A010i199408-199608

SALGA

main16477-74180i199408-199608

*ND

main16477-74180i199106-199408

main16479-74180i199209-199408

main16479-74180i199408-199608

*ND

16471CAP SUB-ASSY, RESERVE TANK

main16405-0A010i199408-199608

SALGA

main16405-20010i199308-199408

main16405-20010i199408-199608

*ND

main16405-62030i199106-199308

main16405-74170i199106-199308

sub16405-74171

sub90119-06195

main16405-74240i199308-199608

16533SUPPORT, RADIATOR, UPPER

main16533-62020i199106-199408

TYPE 2

main16533-62020i199408-199608

main16533-74190i199106-199408

TYPE 1

main16533-74190i199106-199608

16535SUPPORT, RADIATOR, LOWER

main16535-62030i199106-199212

sub16535-62031

main16535-62031i199212-199608

main16535-74120i199106-199310

sub16535-74121

main16535-74121i199310-199406

sub16535-74122

main16535-74122i199406-199608

16571HOSE, RADIATOR, INLET

main16571-20010i199308-199608

main16571-62040i199106-199308

main16571-74190i199106-199308

sub16571-74191

sub82711-1E070

main16571-74191i199308-199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33003i199106-199208

main90467-34003i199208-199608

sub90467-34004

main90467-37004i199106-199608

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-20010i199308-199608

main16572-62030i199106-199308

main16572-74180i199106-199305

main16572-74181i199305-199608

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33004i199106-199208

WATER INLET SIDE

sub90467-33003

main90467-34003i199208-199608

sub90467-34004

main90467-34003i199106-199208

RADIATOR SIDE

sub90467-34004

main90467-37002i199106-199608

sub90467-37005

16611BRACKET, RADIATOR RESERVE TANK

main16611-74080i199106-199608

NO.1

main16612-74010i199106-199308

NO.2

main16612-74020i199308-199608

NO.2

16612BRACKET, RADIATOR RESERVE TANK, NO.2

main16612-74010i199106-199308

main16612-74020i199308-199608

9011606070

main90116-06070

9011906195

main90119-06195

9011908813

main90119-08813

9011908938

main90119-08938

9014880017

main90148-80017

9014880018

main90148-80018

9017906080

main90179-06080

9017908144

main90179-08144

9017908230

main90179-08230

9048018010

main90480-18010

9151260616

main91512-60616

91621G0612

main91621-G0612

9163260820

main91632-60820

9212260612

main92122-60612

9462310800

main94623-10800

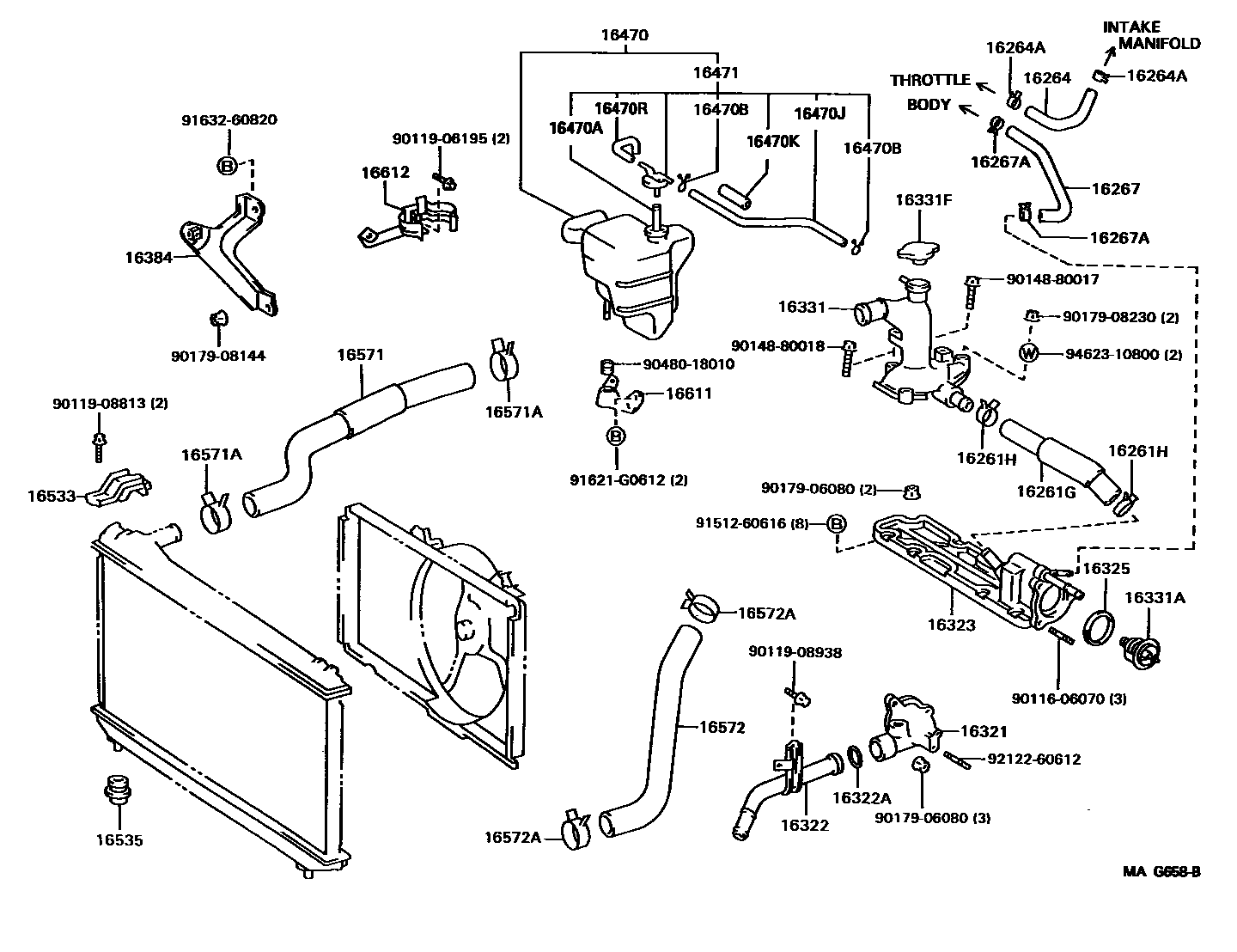

RADIATOR & WATER OUTLET
