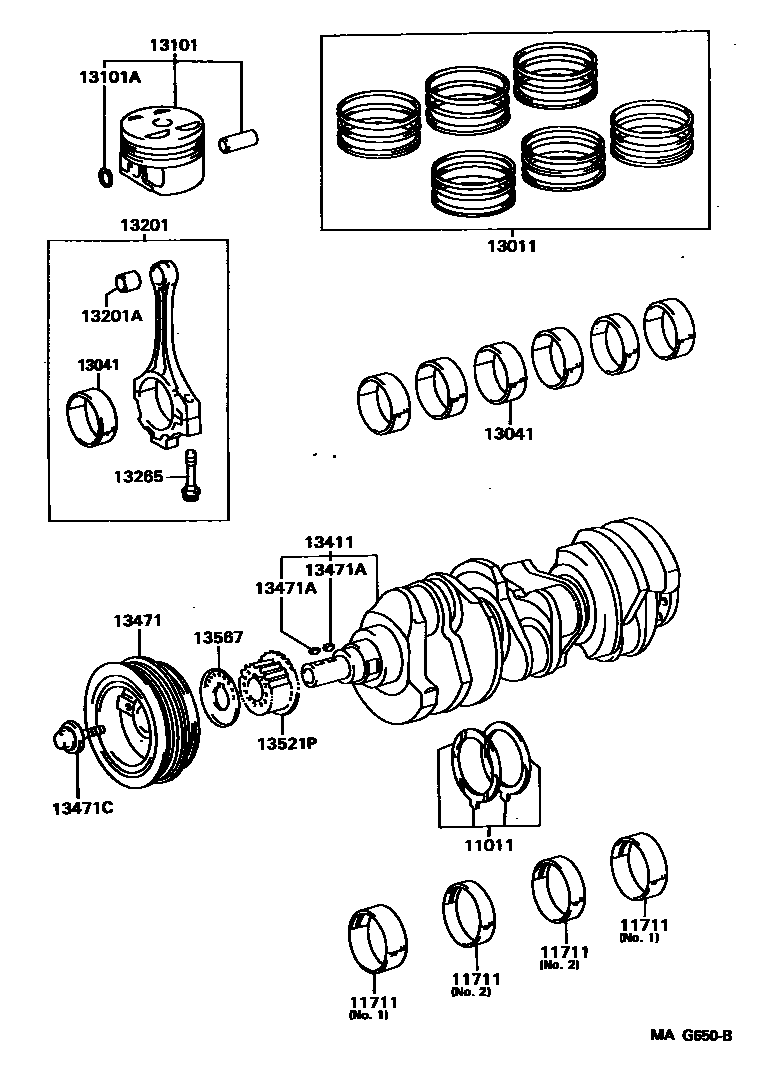

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11711BEARING, CRANKSHAFT
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
13011RING SET, PISTON
STD
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
sub90520-22025
13201ABUSH(FOR CONNECTING ROD SMALL END)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13567GUIDE, TIMING BELT, NO.2
15 parts on this diagram · 4 diagrams in section
