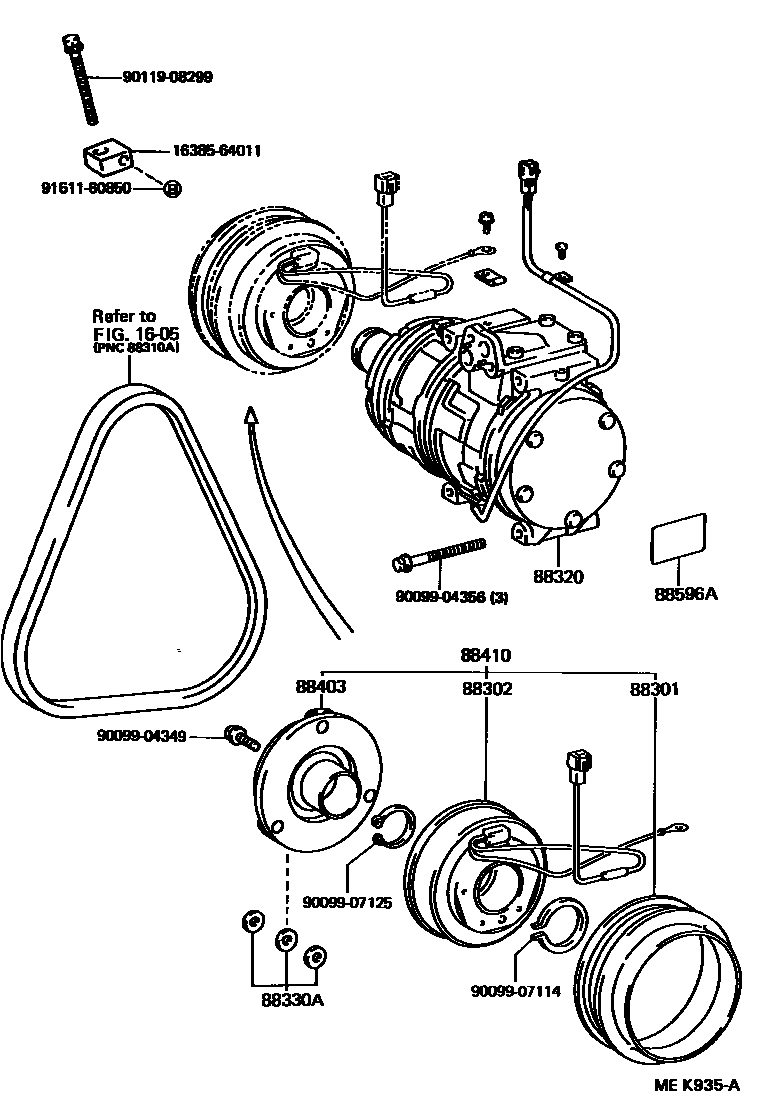

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iSV2#198808-199106

sub88412-2B030

main88412-32030iVZV21..LE198808-199106

main88412-32050iVZV21..LE199002-199106

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32021iSV2#198808-199106

main88411-32031iVZV21..DX198808-198902

sub88411-35050

main88411-32050iVZV21..LE198902-199106

sub88411-35050

88320COMPRESSOR ASSY, COOLER

main88320-32091iVZV21..DX198808-199106

sub88320-32093

main88320-32093iVZV21..DX199002-199106

main88320-32100iSV2#198808-199106

sub88320-32101

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iVZV21..LE198808-199106

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iSV2#198808-199106

88410CLUTCH ASSY, MAGNET

main88410-32030iSV2#198808-199106

sub88410-32060

main88410-32040iVZV21..DX198808-198902

sub88410-32050

main88410-32050iVZV21..DX198902-199106

main88410-32090iVZV21..LE199002-199106

88596APLATE, CAUTION

main88536-12010iSV2#198808-199106

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9011908299

main90119-08299

9161160850

main91611-60850

15 parts on this diagram · 4 diagrams in section
