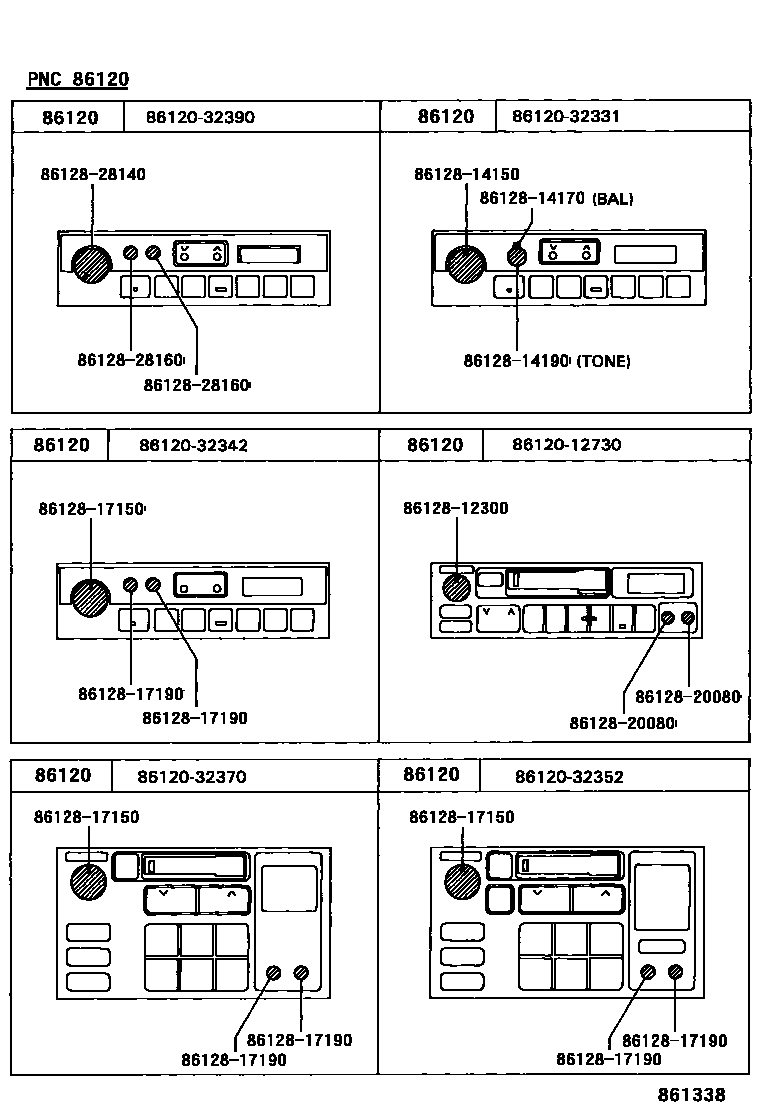

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-12730iSV2#,VZV21..USA199008-199106

AM/FM MPX ETR GEN 2SP 1DIN

main86120-32330iSV2#,VZV21..(DX,STD)..USA198808-198908

MATSUSHITA,AM/FM ETR 2SP 1DIN

sub86120-32331

main86120-32340iSV2#,VZV21..DX,STD198808-199008

MATSUSHITA,AM/FM MPX ETR 4SP 1DIN

main86120-32342iSV2#,VZV21..DX,STD199008-199106

MATSUSHITA,AM/FM MPX ETR 4SP 1DIN

main86120-32350iSV2#,VZV21..LE..USA198808-198908

MATSUSHITA,AM/FM MPX ETR CST AF 2SP 2DIN

sub86120-32351

main86120-32351iSV2#,VZV21..LE..USA198908-199008

MATSUSHITA,AM/FM MPX ETR CST AF 4SP 2DIN

main86120-32352iSV2#,VZV21..LE..USA199008-199106

AM/FM MPX ETR CST AF 4SP 2DIN

main86120-32370iSV21..STD..CND;SV2#,VZV21..DX,LE198808-199008

AM/FM MPX ETR CST 45P 2DIN

main86120-32380iSV2#,VZV21..(DX,STD)..USA198808-198811

MATSUSHITA,AM/FM ETR CST 2SP 1DIN

sub86120-32383

main86120-32381iSV2#,VZV21..(DX,STD)..USA198811-198908

AM/FM ETR CST 2SP 1DIN

sub86120-32380

main86120-32382iSV2#;VZV21..LE198908-199008

MATSUSHITA,AM/FM ETR CST 2SP 1DIN

sub86120-32383

main86120-32383iSV2#;VZV21..LE199008-199106

MATSUSHITA,AM/FM ETR CST 2SP 1DIN

main86120-32390iSV2#,VZV21..USA198808-199008

FUJITSU TEN,AM/FM MPX ETR GEN 2SP 1DIN

8612812300KNOB, RADIO RECEIVER

main86128-12300

8612814150KNOB, RADIO RECEIVER

main86128-14150

8612814170KNOB, RADIO RECEIVER

main86128-14170

8612814190KNOB, RADIO RECEIVER

main86128-14190

8612817150KNOB, RADIO RECEIVER

main86128-17150

8612817190KNOB, RADIO RECEIVER

main86128-17190

8612820080KNOB, RADIO RECEIVER

main86128-20080

8612828140KNOB, RADIO RECEIVER

main86128-28140

8612828160KNOB, RADIO RECEIVER

main86128-28160

10 parts on this diagram · 2 diagrams in section
