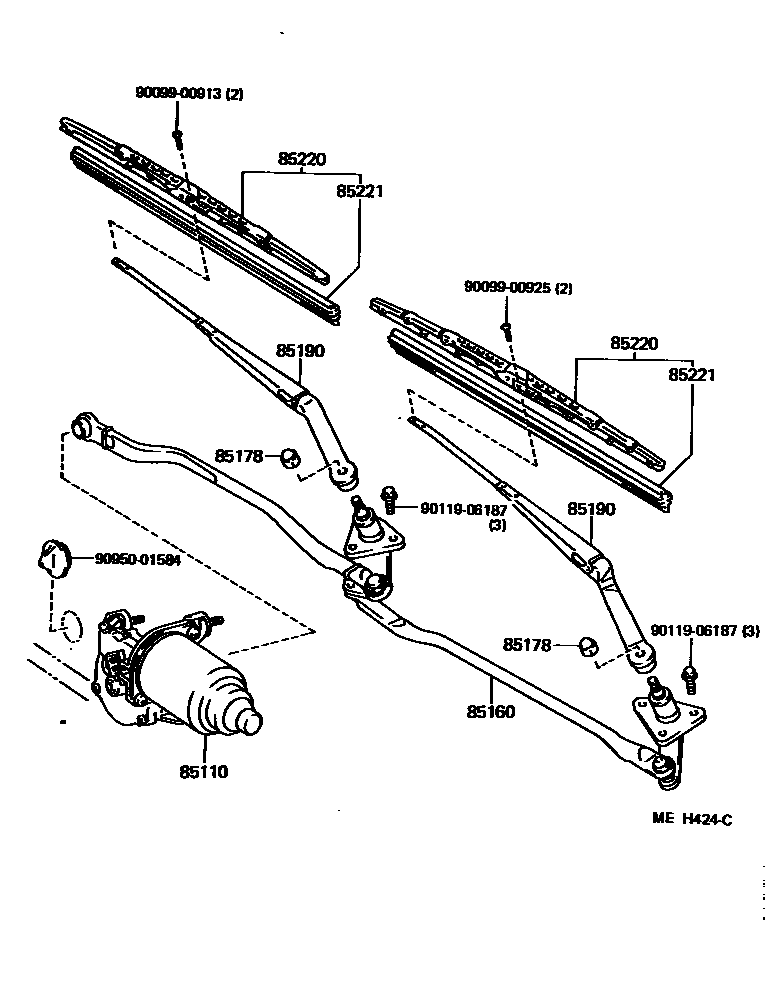

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-32242iSV2#,VZV21198808-199106

85160LINK ASSY, WINDSHIELD WIPER

main85160-32130iSV2#,VZV21198808-199106

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iSV2#,VZV21198808-199106

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-32281iSV2#,VZV21198808-199106

LH

main85210-32211iSV2#,VZV21198808-199106

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85212-32250iSV2#,VZV21199008-199106

RH

main85220-16880iSV2#,VZV21198808-199008

RH

sub85220-16640

main85220-32860iSV2#,VZV21198808-199106

LH

sub85220-3A050

85221BLADE, WINDSHIELD WIPER

main85221-30100iSV2#,VZV21198808-199106

RH

sub85221-40040

main85221-32050iSV2#,VZV21198808-199106

LH

sub85214-24H90

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

9095001584

main90950-01584

10 parts on this diagram · 1 diagram in section
