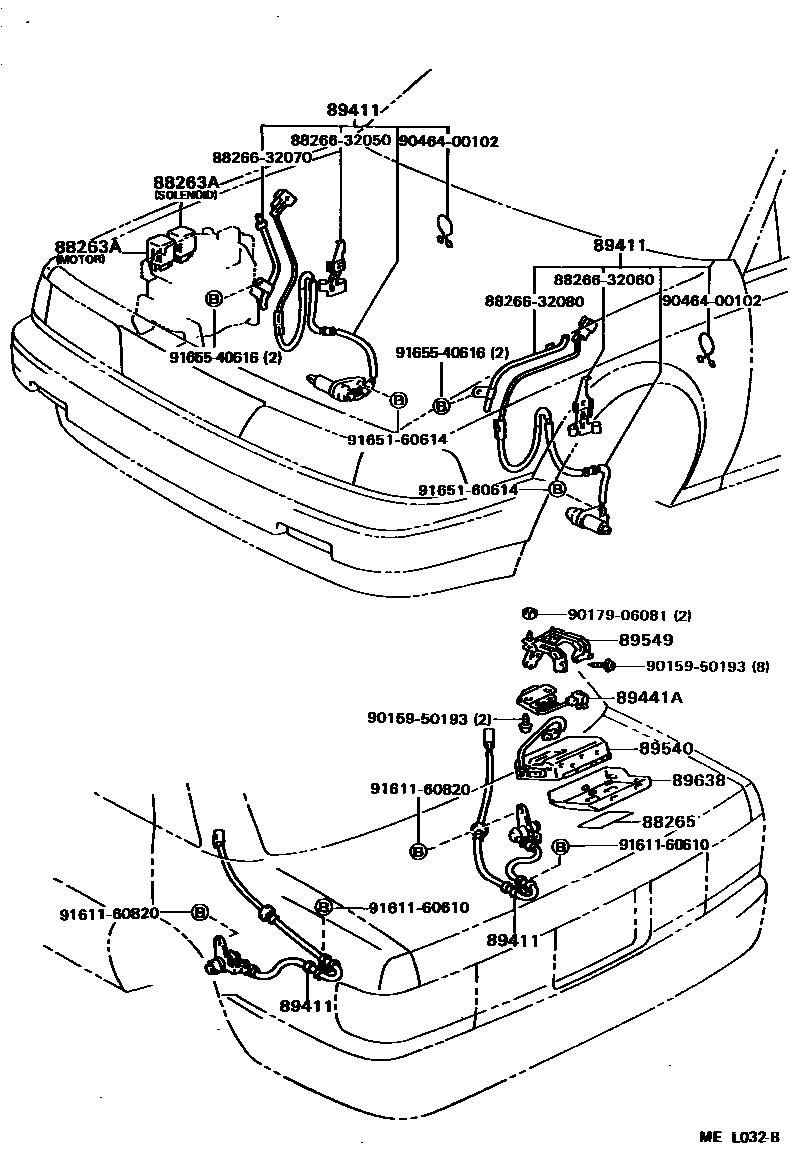

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iSV25,VZV21..LE¥3,720198808-199106

MOTOR RELAY

main88263-14120iSV25,VZV21..LE¥3,720198808-199106

SOLENOIDE RELAY

88265LABEL, SKID CONTROL CAUTION

main88265-20040iSV25..LE¥300198808-199106

89411SENSOR, SPEED

main89542-32010iSV25,VZV21..LE¥21,700198808-199106

FRONT RH

main89543-32010iSV25,VZV21..LE¥21,700198808-199106

FRONT LH

main89545-32010iVZV21..LE¥21,700198808-199106

REAR RH

main89545-32020iSV25..LE¥21,700198808-199106

REAR RH

main89546-32010iVZV21..LE¥21,700198808-199106

REAR LH

main89546-32020iSV25..LE¥21,700198808-199106

REAR LH

89441ASENSOR, DECELERATION

main89441-32010iSV25..LE¥54,100198808-199106

89540COMPUTER ASSY, SKID CONTROL

main89541-32020iSV25..LE¥95,200198808-199106

main89541-32030iVZV21..LE¥95,200198808-199106

89549BRACKET, SKID CONTROL COMPUTER

main88267-32070iVZV21..WG..LE198808-199106

NO.1

main88268-32060iVZV21..WG..LE198808-199106

NO.2

main88269-32060iVZV21..WG..LE198808-199106

NO.3

main89549-32020iSV25,VZV21..SED..LE¥1,540198808-199106

89638COVER, BRAKE CONTROL COMPUTER

main89638-32010iSV25,VZV21..SED..LE¥1,430198808-199106

8826632050CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32050¥600

8826632060CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32060¥600

8826632070CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32070¥1,460

8826632080CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-32080¥1,460

9015950193

main90159-50193¥80

9017906081

main90179-06081¥200

9046400102

main90464-00102¥160

9161160610

main91611-60610¥120

9161160820

main91611-60820¥200

9165160614

main91651-60614¥70

9165540616

main91655-40616¥120

18 parts on this diagram · 2 diagrams in section
