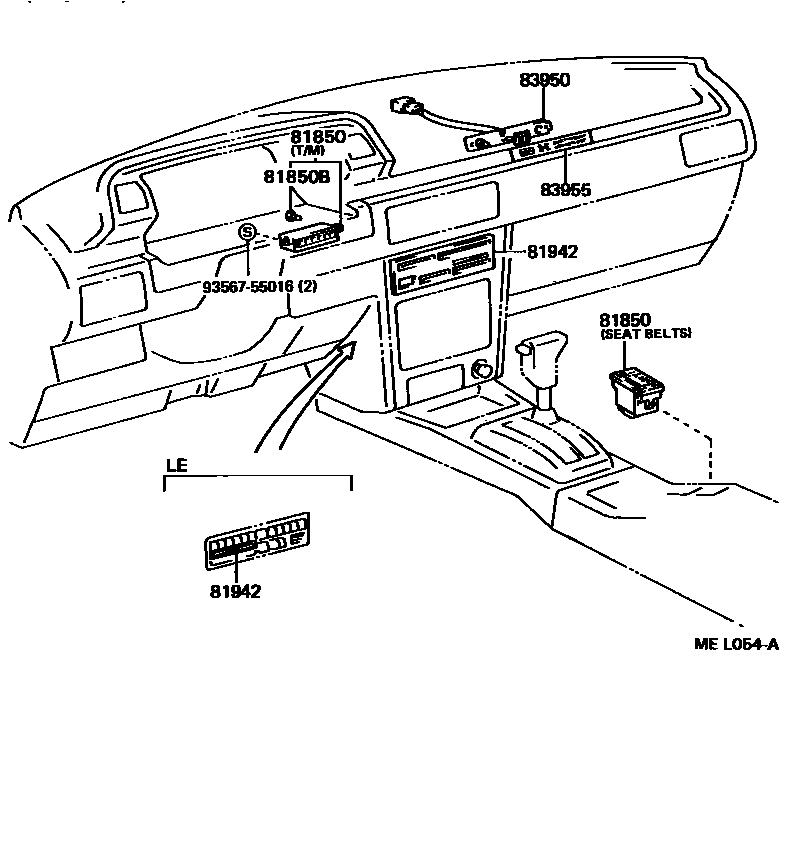

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-22252iSV2#,VZV21..USA198808-199106

SEAT BELTS

main81850-32130iSV2#,VZV21..4FC..(DX,LE)199009-199106

TRANSMISSION

main81850-32140iSV21..4FC..STD198808-199106

TRANSMISSION

main81850-32170iSV2#,VZV21..4FC..CND198908-199009

TRANSMISSION

81850BBULB, INDICATOR LAMP

main84999-20010iSV2#,VZV21..4FC..(DX,LE)199009-199106

14V 1.2W,GREEN CAP

main84999-20090×9iSV2#,VZV21..4FC..(DX,LE)198808-198908

12V 1.2W,14V 1.2W,GREEN CAP

main84999-20100iSV2#,VZV21..4FC..(DX,LE)..USA198908-199009

12V 1.2W,W(CAP),14V 1.2W,GREEN CAP

main84999-50180×9iSV2#,VZV21..4FC..CND198908-199009

12V 1.2W,14V 1.2W

main84999-50190iSV2#,VZV21..4FC..CND198908-199009

12V 1.2W,GREEN CAP,14V 1.2W,GREEN CAP

81942SHEET, HEATER CONTROL NAME

main81942-32041iSV2#,VZV21..DX,STD198808-199106

main81942-32060iSV2#,VZV21..LE198808-199106

83950LAMP ASSY, TELLTALE

main83950-32010iSV25198808-199106

83955LENS, TELL TALE

main83955-32030iSV25..5F198808-199008

main83955-32060iSV25..4FC198808-198809

main83955-32061iSV25..4FC198809-199106

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section
