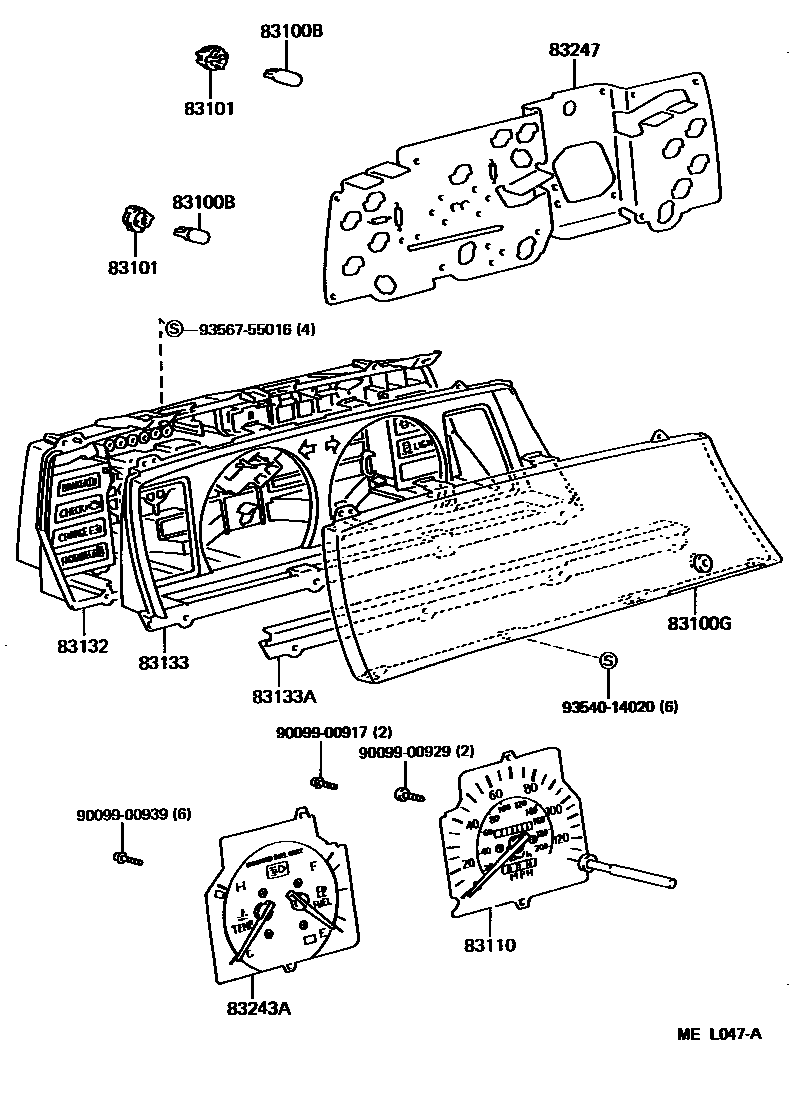

METER

0001 1ANALOG 0002 1ANALOG(W/TACHOMETER) 0003 1DIGITAL 0004 1SOCKET & BULB 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iSV2#,VZV21..DX,LE198808-199106

12V 1.4W,ORANGE CAP

main83109-20030×3iVZV21..LE198808-199106

12V 1.4W,BLUE CAP

main83109-24020×4iSV2#,VZV21198808-199106

12V3.4W W(GREEN CAP)

main90981-11018×9iVZV21..CND198808-199106

12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER)

main99132-12034×16iSV25,VZV21..4FC..DX..USA198908-199106

12V 3.4W

83100GGLASS, COMBINATION METER

main83133-32390iVZV21..CND198808-199106

W(DIGITAL SPEEDOMETER)

main83138-32050iSV2#,VZV21198808-199106

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×5iSV25..4FC..DX198808-199106

W(TACHOMETER),NO.1

main83101-14040×11iSV25..LE;SV25..5F;SV21,VZV21..DX,LE198808-199106

W(TACHOMETER),NO.2

main83101-32010iVZV21..CND198808-199106

W(DIGITAL SPEEDOMETER),NO.1

83110SPEEDOMETER ASSY

main83110-32421iSV2#..4FC..DX..CND198908-199106

main83110-32431iSV2#..DX..CND198808-198908

W(TACHOMETER)

main83110-32521iVZV21..LE..USA198808-198908

W(TACHOMETER)

main83110-32522iVZV21..4FC..DX198908-199102

W(TACHOMETER)

main83110-32523iVZV21..4FC..DX199102-199106

W(TACHOMETER)

main83110-32531iVZV21..CND198808-199106

main83110-32561iVZV21..DX198808-198908

main83110-32562iVZV21..4FC..DX198908-199102

main83110-32563iVZV21..4FC..DX199102-199106

main83110-32570iSV21..WG..USA;SV2#..SED..(DX,STD)..USA198808-198908

main83110-32571iSV21..5F..STD;SV2#..4FC..(DX,STD)..USA198908-199102

main83110-32572iSV21..5F..STD;SV2#..4FC..(DX,STD)..USA199102-199106

main83110-32580iSV21..WG..USA;SV2#..SED..DX..USA198808-198908

W(TACHOMETER)

main83110-32581iSV2#..LE..USA;SV2#..5F..DX..USA198908-199102

W(TACHOMETER)

main83110-32582iSV2#..LE..USA;SV21..5F..DX..USA199102-199106

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-32040iVZV21..CND198808-199106

W(DIGITAL SPEEDOMETER)

main83132-32500iVZV21..LE;SV2#..4FC..LE;VZV21..5F..USA;SV2#..5F..(DX,LE)198908-199106

W(TACHOMETER)

main83132-32520iSV21..4FC..DX;SV25..4FC..DX..CND198908-199106

main83132-32540iSV21..STD198808-199106

main83132-32580iSV25,VZV21..4FC..DX..USA198908-199106

83133PLATE, COMBINATION METER, NO.1

main83133-32330iVZV21..CND198808-199106

W(DIGITAL SPEEDOMETER)

main83133-32550iSV21..5F..STD;SV2#,VZV21..4FC..(DX,STD)198908-199106

main83133-32570iVZV21..CND;SV25..LE..USA198808-199106

W(TACHOMETER)

main83133-32690iSV25..4FC..DX..CND;SV21,VZV21..4FC..DX198908-199106

W(TACHOMETER)

83133APLATE, COMBINATION METER, NO.2

main83133-32450iVZV21..CND198808-199106

W(DIGITAL SPEEDOMETER)

main83133-32610iSV2#,VZV21198808-199106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-32670iSV2#..LE..USA;SV2#..5F..DX..USA198908-199106

W(TACHOMETER)

main83243-32690iSV21..5F..STD;SV21,VZV21..4FC..(DX,STD)..USA198908-199106

main83243-32710iVZV21..4FC..DX198908-199106

W(TACHOMETER)

main83243-32730iSV2#..5F..CND;SV2#..4FC..LE..CND198908-199106

W(TACHOMETER)

main83243-32750iVZV21..CND198808-199106

main83243-32770iSV25..4FC..DX..USA198808-199106

main83243-32790iSV25..5F..CND;SV21..(DX,STD)..CND198808-198908

main83243-32810iSV25..4FC..DX..CND198808-199106

83247PLATE, METER CIRCUIT

main83247-32300iVZV21..CND198808-199106

W(DIGITAL SPEEDOMETER)

main83247-32480iSV25..5F;SV21..DX;SV21..WG..LE..USA198808-198908

main83247-32780iSV21..STD198808-199106

main83247-32880iVZV21..LE;SV21..SED..LE;SV21..WG..LE..CND198808-198908

W(TACHOMETER)

main83247-3H210iSV25..LE198808-199106

W(TACHOMETER)

main83247-3H230iSV25..4FC..DX..USA198908-199106

main83247-3H250iSV25..4FC..DX..CND198808-199106

main83247-3H310iVZV21..4FC..DX198908-199106

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9354014020

main93540-14020

9356755016

main93567-55016

14 parts on this diagram · 5 diagrams in section
