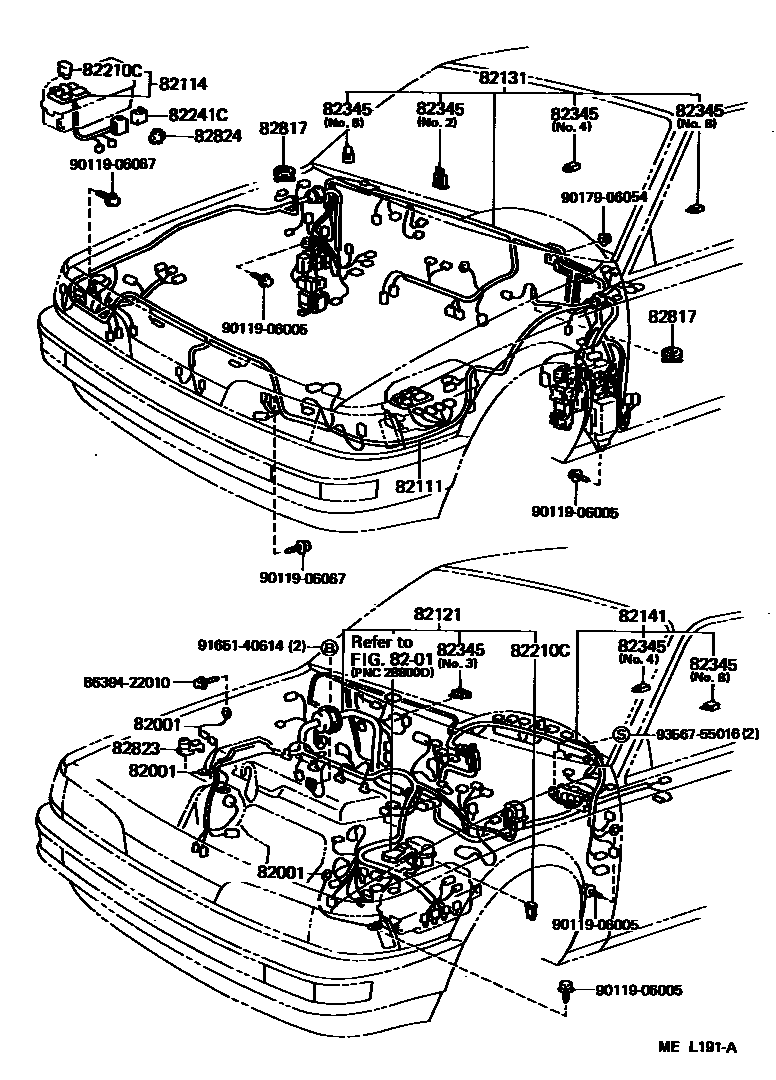

WIRING & CLAMP
82001CABLE, BOND, NO.1
TRANSMISSION
ENGINE
ENGINE HANGER
SUSPENSION TOWER
8201
82111WIRE, ENGINE ROOM MAIN
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM) OR W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL
W(ANTI-LOCK BRAKE SYSTEM) OR W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL
W(ANTI-LOCK BRAKE SYSTEM) OR W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL
82114WIRE, ENGINE ROOM, NO.4
HEATER
E/G ROOM J/B NO.2
E/G ROOM J/B NO.2
82121WIRE, ENGINE
sub82121-3H052
sub82121-3H053
sub82121-3H063
sub82121-3H064
sub82121-3H073
sub82121-3H074
sub82121-3H282
sub82121-3H292
sub82121-3H293
82131WIRE, COWL
sub82131-3H543
W(POWER WINDOW) OR W(MOON ROOF)
W(POWER WINDOW) OR W(MOON ROOF)
sub82131-3H561
sub82131-3H563
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(POWER WINDOW) OR W(MOON ROOF)
W(POWER WINDOW) OR W(MOON ROOF)
W(*PW & *MR & *CRC) OR W(*PW & *CRC) OR W(*MR & *CRC)
W(*PW & *MR & *CRC) OR W(*PW & *CRC) OR W(*MR & *CRC)
sub82131-3H592
W(*PW & *MR & *CRC) OR W(*PW & *CRC) OR W(*MR & *CRC)
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
sub82131-3H632
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
82141WIRE, INSTRUMENT PANEL
sub82141-32262
sub82141-32272
sub82141-32282
sub82141-32292
W(DIGITAL SPEEDO METER)
sub82141-32312
W(DIGITAL SPEEDO METER)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
80A,TERM.:MALE,BLK
82241CWIRE, RELAY
82345DIODE
COWL WIRE,NO.8
INSTRUMENT WIRE,NO.8
COWR WIRE,NO.8
COWL WIRE,NO.2
COWR WIRE,NO.2
ENGINE WIRE,NO.3
INSTRUMENT WIRE,NO.4
COWL WIRE,NO.4
COWR WIRE,NO.4
COWR WIRE,NO.6
COWL WIRE,NO.6
82817PROTECTOR, WIRING HARNESS, NO.1
82823CAP, TERMINAL, NO.1
82824CONNECTOR, WIRING HARNESS
8639422010
main86394-22010
9011906005
main90119-06005
9011906067
main90119-06067
9017906054
main90179-06054
9165140614
main91651-40614
9356755016
main93567-55016
19 parts on this diagram · 7 diagrams in section
