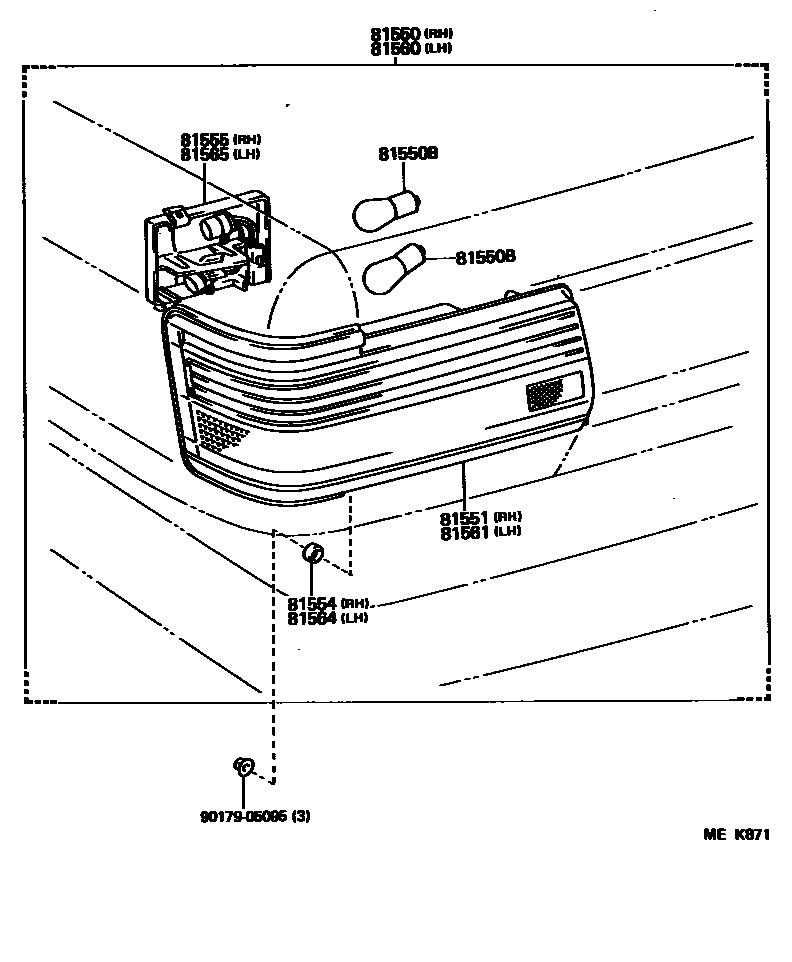

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-32141iSV2#,VZV21..SED198808-199002

main81550-32171iSV21,VZV21..WG198808-199106

main81550-32250iSV2#,VZV21..SED199002-199106

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270iSV2#,VZV21198808-199106

12V 27W

main99132-21270iSV2#,VZV21198808-199106

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-32141iSV2#,VZV21..SED198808-199002

main81551-32171iSV21,VZV21..WG198808-199106

main81551-32250iSV2#,VZV21..SED199002-199106

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81558-20720iSV2#,VZV21..SED198808-199106

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-32140iSV2#,VZV21..SED198808-199002

main81555-32160iSV21,VZV21..WG198808-199106

main81555-32250iSV2#,VZV21..SED199002-199106

81560LAMP ASSY, REAR COMBINATION, LH

main81560-32141iSV2#,VZV21..SED198808-199002

main81560-32171iSV21,VZV21..WG198808-199106

main81560-32250iSV2#,VZV21..SED199002-199106

81561LENS, REAR COMBINATION LAMP, LH

main81561-32141iSV2#,VZV21..SED198808-199002

main81561-32171iSV21,VZV21..WG198808-199106

main81561-32250iSV2#,VZV21..SED199002-199106

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81558-20720iSV2#,VZV21..SED198808-199106

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-32160iSV21,VZV21..WG198808-199106

main81565-32140iSV2#,VZV21..SED198808-199002

main81565-32250iSV2#,VZV21..SED199002-199106

9017905095

main90179-05095

10 parts on this diagram · 2 diagrams in section
