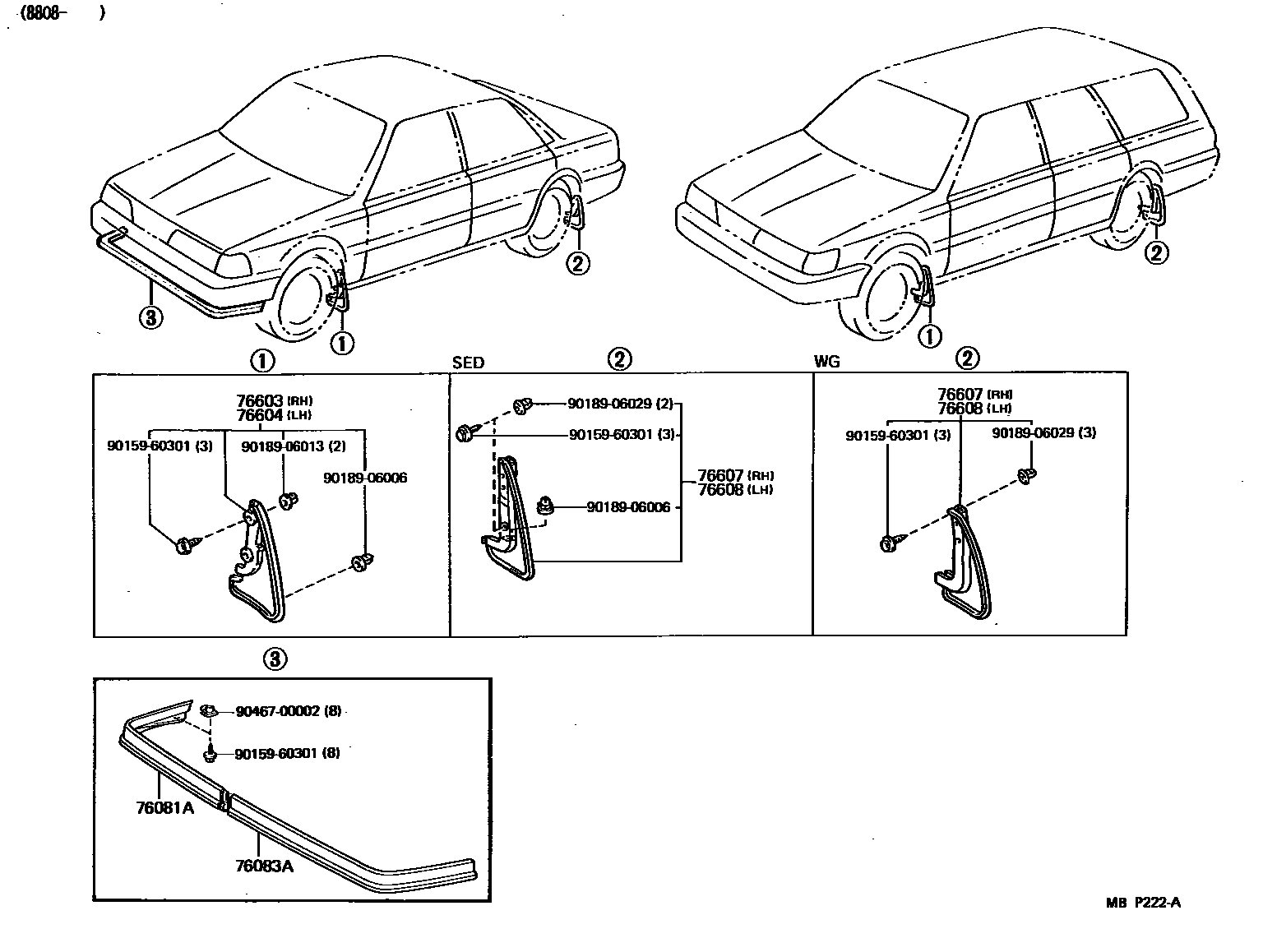

MUDGUARD & SPOILER

76081ASPOILER SUB-ASSY, FRONT RH

main76081-32010iVZV21198808-199008

76083ASPOILER SUB-ASSY, FRONT LH

main76083-32010iVZV21198808-199008

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39095iSV21,VZV21..WG;SV2#,VZV21..SED..(DX,STD)198808-199106

main76621-39105-A0iSV2#,VZV21..SED..LE199002-199106

SUPER WHITE 2,040

sub76621-39105

main76621-39105-B1iSV2#,VZV21..SED..LE199002-199008

GRAY METALLIC,167

sub76621-39105

main76621-39105-B2iSV2#,VZV21..SED..LE199002-199106

BLACK,202

sub76621-39105

main76621-39105-B3iSV2#,VZV21..SED..LE199008-199106

SUPER SILVER M 3,176 ,20S

sub76621-39105

main76621-39105-B4iSV2#,VZV21..SED..LE199008-199106

DARK BLUEISH GRAY M,185

sub76621-39105

main76621-39105-C1iSV2#,VZV21..SED..LE198808-199008

SILVER M,173 ,29H

sub76621-39105

main76621-39105-D0iSV2#,VZV21..SED..LE199002-199008

RED MICA,3H4

sub76621-39105

main76621-39105-D1iSV2#,VZV21..SED..LE199002-199106

DARK RED MICA,3J5

sub76621-39105

main76621-39105-D2iSV2#,VZV21..SED..LE199008-199106

RED MICA M,3J9

sub76621-39105

main76621-39105-E0iSV2#,VZV21..SED..LE199002-199008

DARK BROWN MICA,4J7

sub76621-39105

main76621-39105-E1iSV2#,VZV21..SED..LE199002-199008

ORANGISH GOLD METAL,4J8

sub76621-39105

main76621-39105-E2iSV2#,VZV21..SED..LE199008-199106

BEIGE MICA M,4J1

sub76621-39105

main76621-39105-J0iSV2#,VZV21..SED..LE199002-199106

LIGHT BULE MICA META,8G2

sub76621-39105

main76621-39105-J1iSV2#,VZV21..SED..LE199002-199106

DARK BLUE MICA METAL,8G5

sub76621-39105

main76621-39105-J2iSV2#,VZV21..SED..LE199008-199106

BLUE M,8J3

sub76621-39105

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39095iSV21,VZV21..WG;SV2#,VZV21..SED..(DX,STD)198808-199106

main76622-39105-A0iSV2#,VZV21..SED..LE199002-199106

SUPER WHITE 2,040

sub76622-39105

main76622-39105-B1iSV2#,VZV21..SED..LE199002-199008

GRAY METALLIC,167

sub76622-39105

main76622-39105-B2iSV2#,VZV21..SED..LE199002-199106

BLACK,202

sub76622-39105

main76622-39105-B3iSV2#,VZV21..SED..LE199008-199106

SUPER SILVER M 3,176 ,20S

sub76622-39105

main76622-39105-B4iSV2#,VZV21..SED..LE199008-199106

DARK BLUEISH GRAY M,185

sub76622-39105

main76622-39105-C1iSV2#,VZV21..SED..LE198808-199008

SILVER M,173 ,29H

sub76622-39105

main76622-39105-D0iSV2#,VZV21..SED..LE199002-199008

RED MICA,3H4

sub76622-39105

main76622-39105-D1iSV2#,VZV21..SED..LE199002-199106

DARK RED MICA,3J5

sub76622-39105

main76622-39105-D2iSV2#,VZV21..SED..LE199008-199106

RED MICA M,3J9

sub76622-39105

main76622-39105-E0iSV2#,VZV21..SED..LE199002-199008

DARK BROWN MICA,4J7

sub76622-39105

main76622-39105-E1iSV2#,VZV21..SED..LE199002-199008

ORANGISH GOLD METAL,4J8

sub76622-39105

main76622-39105-E2iSV2#,VZV21..SED..LE199008-199106

BEIGE MICA M,4J1

sub76622-39105

main76622-39105-J0iSV2#,VZV21..SED..LE199002-199106

LIGHT BLUE MICA META,8G2

sub76622-39105

main76622-39105-J1iSV2#,VZV21..SED..LE199002-199106

DARK BLUE MICA METAL,8G5

sub76622-39105

main76622-39105-J2iSV2#,VZV21..SED..LE199008-199106

BLUE M,8J3

sub76622-39105

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39135iSV2#,VZV21..SED198808-199106

main76625-39145iSV21,VZV21..WG198808-199106

main76625-39175-A0iSV2#,VZV21..SED..LE199002-199106

SUPER WHITE 2,040

sub76625-39175

main76625-39175-B0iSV2#,VZV21..SED..LE198808-199008

SILVER M,173 ,29H

sub76625-39175

main76625-39175-B1iSV2#,VZV21..SED..LE199002-199008

GRAY METALLIC,167

sub76625-39175

main76625-39175-B2iSV2#,VZV21..SED..LE199002-199106

BLACK,202

sub76625-39175

main76625-39175-B3iSV2#,VZV21..SED..LE199008-199106

SUPER SILVER M 3,176 ,20S

sub76625-39175

main76625-39175-B4iSV2#,VZV21..SED..LE199008-199106

DARK BLUEISH GRAY M,185

sub76625-39175

main76625-39175-D0iSV2#,VZV21..SED..LE199002-199008

RED MICA,3H4

sub76625-39175

main76625-39175-D1iSV2#,VZV21..SED..LE199002-199106

DARK RED MICA,3J5

sub76625-39175

main76625-39175-D2iSV2#,VZV21..SED..LE199008-199106

RED MICA M,3J9

sub76625-39175

main76625-39175-E0iSV2#,VZV21..SED..LE199002-199008

DARK BROWN MICA,4J7

sub76625-39175

main76625-39175-E1iSV2#,VZV21..SED..LE199002-199008

ORANGISH GOLD METAL,4J8

sub76625-39175

main76625-39175-E2iSV2#,VZV21..SED..LE199008-199106

BEIGE MICA M,4J1

sub76625-39175

main76625-39175-J0iSV2#,VZV21..SED..LE199002-199106

LIGHT BLUE MICA META,8G2

sub76625-39175

main76625-39175-J1iSV2#,VZV21..SED..LE199002-199106

DARK BLUE MICA METAL,8G5

sub76625-39175

main76625-39175-J2iSV2#,VZV21..SED..LE199008-199106

BLUE M,8J3

sub76625-39175

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39125iSV2#,VZV21..SED..(DX,STD)198808-199106

main76626-39135iSV21,VZV21..WG198808-199106

main76626-39165-A0iSV2#,VZV21..SED..LE199002-199106

SUPER WHITE 2,040

sub76626-39165

main76626-39165-B0iSV2#,VZV21..SED..LE198808-199008

SILVER M,173 ,29H

sub76626-39165

main76626-39165-B1iSV2#,VZV21..SED..LE199002-199008

GRAY METALLIC,167

sub76626-39165

main76626-39165-B2iSV2#,VZV21..SED..LE199002-199106

BLACK,202

sub76626-39165

main76626-39165-B3iSV2#,VZV21..SED..LE199008-199106

SUPER SILVER M 3,176 ,20S

sub76626-39165

main76626-39165-B4iSV2#,VZV21..SED..LE199008-199106

DARK BLUEISH GRAT M,185

sub76626-39165

main76626-39165-D0iSV2#,VZV21..SED..LE199002-199008

RED MICA,3H4

sub76626-39165

main76626-39165-D1iSV2#,VZV21..SED..LE199002-199106

DARK RED MICA,3J5

sub76626-39165

main76626-39165-D2iSV2#,VZV21..SED..LE199008-199106

RED MICA M,3J9

sub76626-39165

main76626-39165-E0iSV2#,VZV21..SED..LE199002-199008

DARK BROWN MICA,4J7

sub76626-39165

main76626-39165-E1iSV2#,VZV21..SED..LE199002-199008

ORANGISH GOLD METAL,4J8

sub76626-39165

main76626-39165-E2iSV2#,VZV21..SED..LE199008-199106

BEIGE MICA M,4J1

sub76626-39165

main76626-39165-J0iSV2#,VZV21..SED..LE199002-199106

LIGHT BLUE MICA META,8G2

sub76626-39165

main76626-39165-J1iSV2#,VZV21..SED..LE199002-199106

DARK BLUE MICA METAL,8G5

sub76626-39165

main76626-39165-J2iSV2#,VZV21..SED..LE199008-199106

BLUE M,8J3

sub76626-39165

9015960301

main90159-60301

9018906006

main90189-06006

9018906013

main90189-06013

9018906029

main90189-06029

9046700002

main90467-00002

11 parts on this diagram · 1 diagram in section
