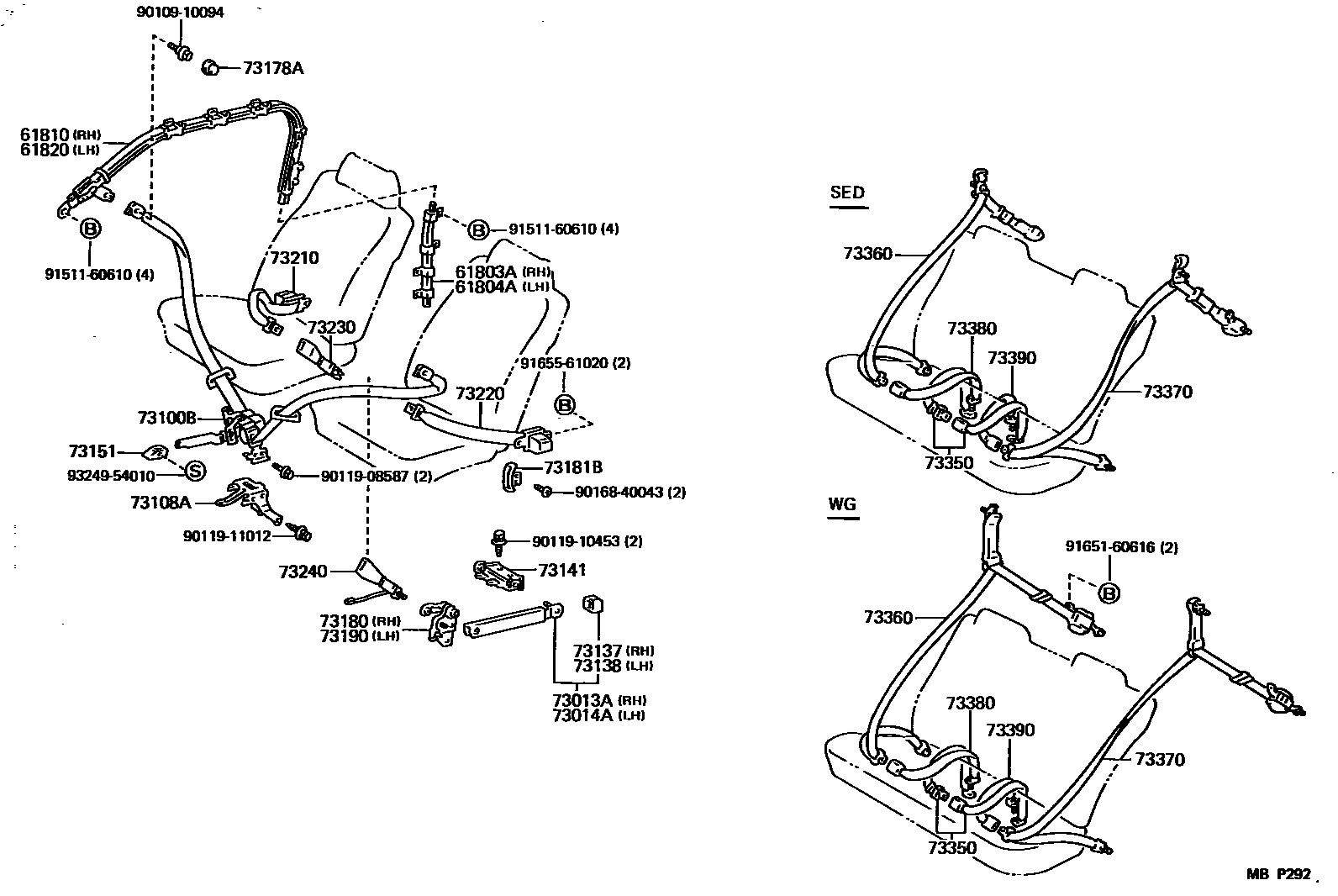

SEAT BELT & CHILD RESTRAINT SEAT
61803ATRACK SUB-ASSY, BELT DRIVE TAPE, RH
61804ATRACK SUB-ASSY, BELT DRIVE TAPE, LH
61810RAIL ASSY, SHOULDER BELT GUIDE, RH
61820RAIL ASSY, SHOULDER BELT GUIDE, LH
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73100BBELT ASSY, FRONT SEAT SHOULDER
73108ABASE SUB-ASSY, FRONT SEAT BELT ANCHOR
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
73141BASE, FRONT SEAT BELT ANCHOR
73151KNOB, SEAT BELT LOCK RELEASE LEVER, RH
73178ACAP, SEAT BELT ANCHOR COVER
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73181BGUIDE, FRONT SEAT LAP BELT, OUTER
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
W(POWER SEAT),MEDIUM GRAY,TRIM1#
W(POWER SEAT),DARK BLUE,TRIM8#
W(POWER SEAT),BROWN,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
9010910094
main90109-10094
9011908587
main90119-08587
9011910453
main90119-10453
9011911012
main90119-11012
9016840043
main90168-40043
9151160610
main91511-60610
9165160616
main91651-60616
9165561020
main91655-61020
9324954010
main93249-54010
34 parts on this diagram · 2 diagrams in section
