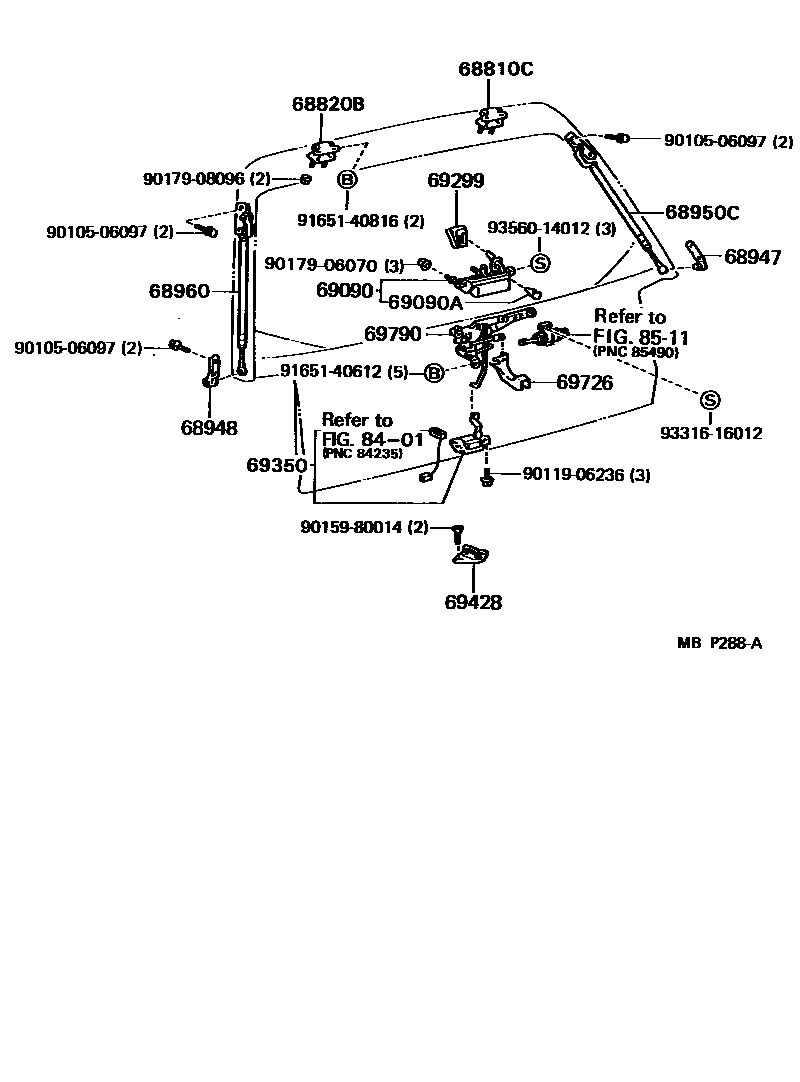

BACK DOOR LOCK & HANDLE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
sub68950-39207
68960STAY ASSY, BACK DOOR, LH
sub68960-39077
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69090ACUSHION(FOR BACK DOOR OUTSIDE HANDLE)
69299GROMMET, BACK DOOR HANDLE
69350LOCK ASSY, BACK DOOR
69428PLATE, BACK DOOR LOCK BASE
69726PROTECTOR, BACK DOOR LOCK CONTROL
69790CONTROL ASSY, BACK DOOR LOCK
8401
8511
9010506097
main90105-06097
9011906236
main90119-06236
9015980014
main90159-80014
9017906070
main90179-06070
9017908096
main90179-08096
9165140612
main91651-40612
9165140816
main91651-40816
9331616012
main93316-16012
9356014012
main93560-14012
24 parts on this diagram · 1 diagram in section
